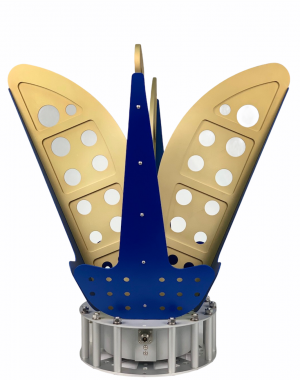

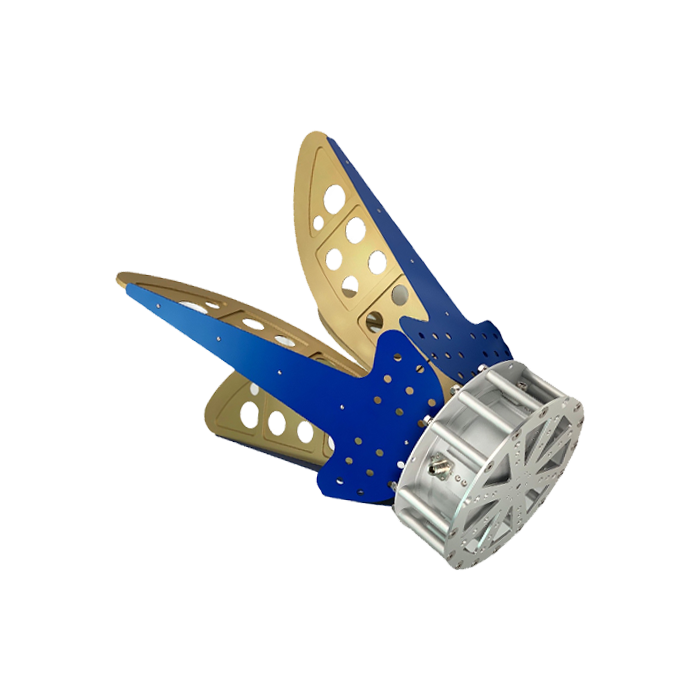

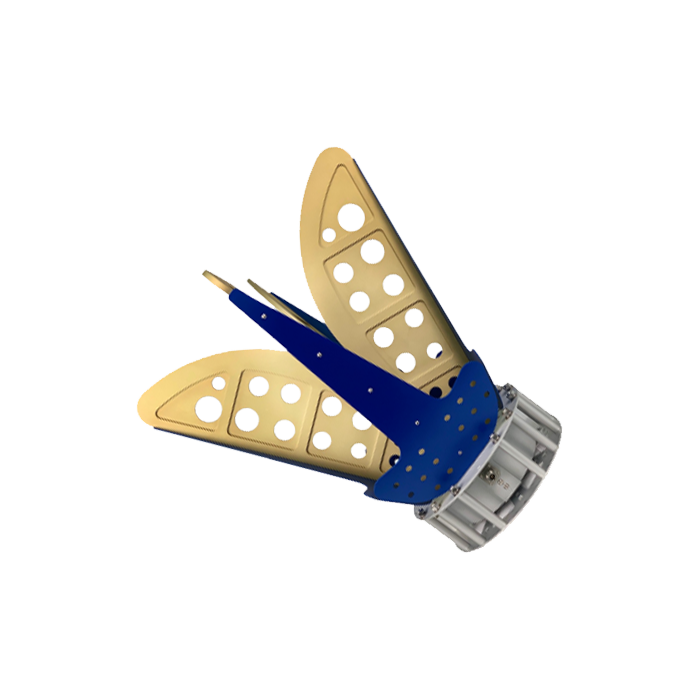

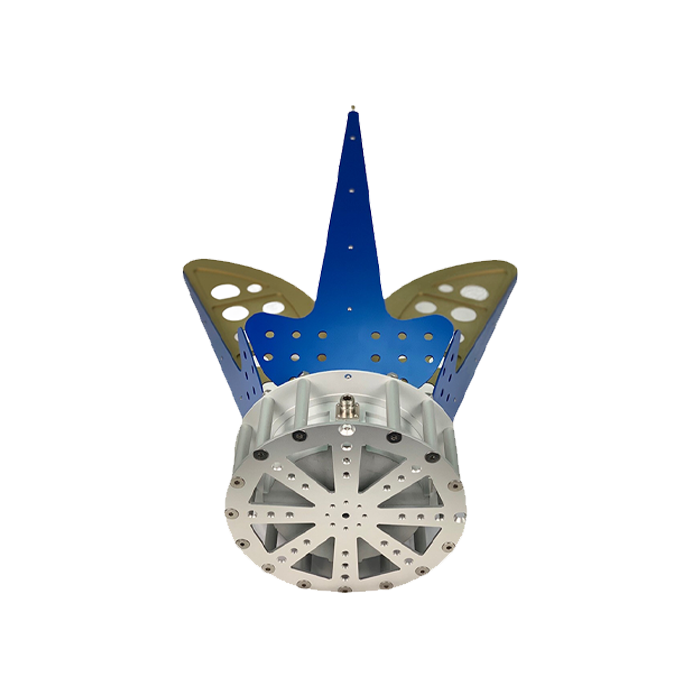

Lightweight Open Boundary Quad-Ridged Horn

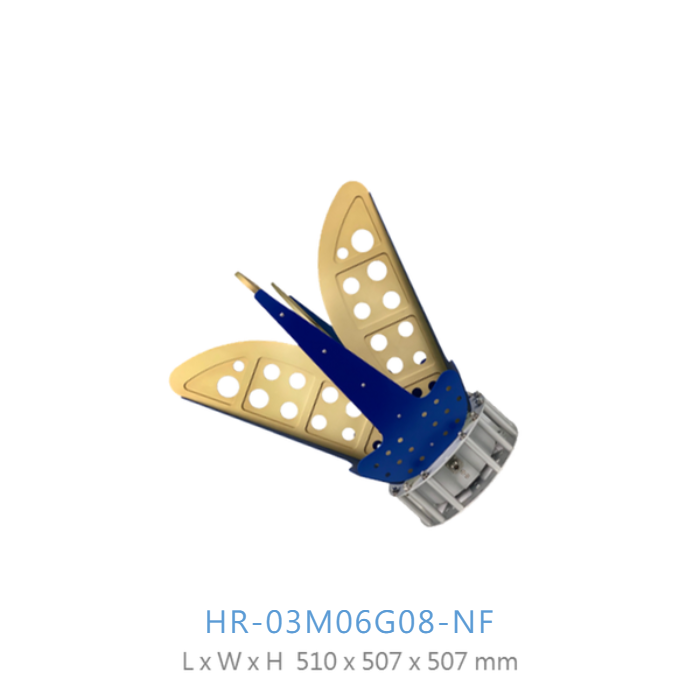

Model: HR-03M06G08-NF | 300 MHz - 6 GHz | Dual Polarization
Core Electrical Specifications
| Frequency Range | 300 MHz to 6 GHz |
| Nominal Gain | 3 dBi to 14 dBi |
| V.S.W.R (Average) | 2.5 : 1 |
| Maximum Power | 50 Watts |
| Polarization | Vertical & Horizontal / ± 45° |
| Horizontal / Vertical Beamwidth | 51° / 52° |
| Antenna Factor | 17 to 35 dB/m |
Mechanical & Structural Parameters

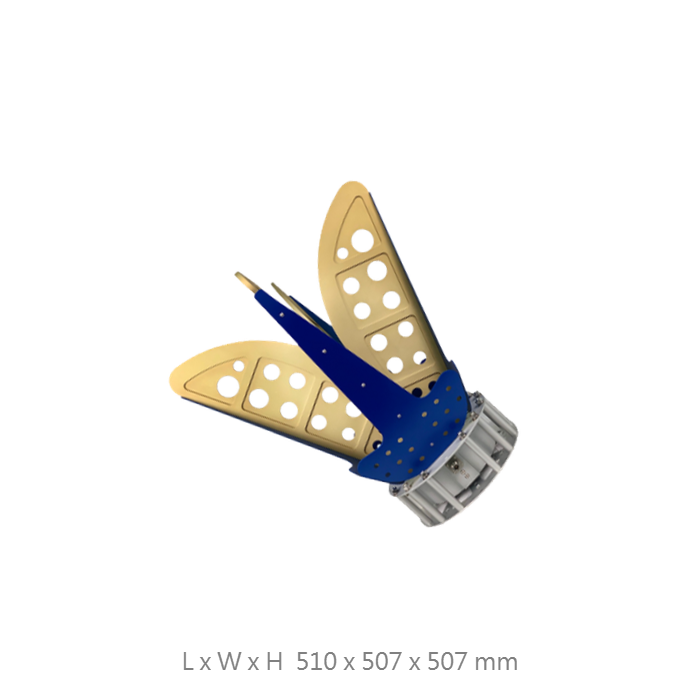

| Dimensions (L x W x H) | 510 x 507 x 507 mm |
| Net Weight (N.W.) | 4.2 kg |
| Body Material | Aerospace Grade 6061 Aluminum Alloy |
| Connector Interface | Stainless Steel N-Female x 2 |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
Open Boundary Innovation
Skeletonized frame design significantly reduces wind loading and weight while maintaining precise electromagnetic boundaries for wideband captures.
Dual Polarization Dominance
Equipped with dual orthogonal ridges to enable simultaneous Vertical and Horizontal measurement for advanced multipath signal analysis.
Precision Signal Integrity
Features a stable gain profile and 20 dB Front-to-Back Ratio (FBR), providing repeatable and accurate data for comprehensive range calibration.
Aerospace Grade Build
Constructed from 6061 Aluminum alloy with stainless steel connectors to ensure mechanical precision and durability in tactical deployments.
