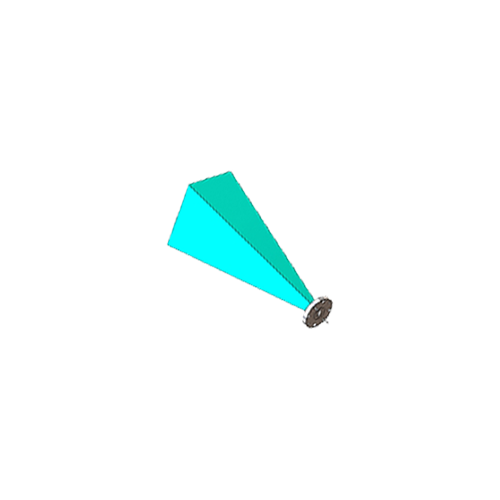

WR-22 High-Gain Standard Horn Antenna
Model: WI-22-UG-25 | 33 - 50 GHz | 25 dBi | Q-Band Precision
The WI-22-UG-25 is a high-performance Q-Band Waveguide Horn Antenna specifically engineered for precision measurement and high-frequency surveillance within the 33 GHz to 50 GHz range. Optimized for Signal Security operations and advanced antenna range calibration, it ensures low VSWR and an exceptional 25 dBi gain. Precision-machined with a standardized UG Waveguide Flange, it serves as a definitive reference standard for EMI/EMC testing and professional Signal Defense infrastructure.
Electrical & RF Performance
| Waveguide Standard | WR-22 (Q-Band) |
| Frequency Range | 33 - 50 GHz |
| Standard Gain | 25 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 150 Watts |
| 3dB Beamwidth (H/E Plane) | 12° / 12° |
Mechanical & Physical Specs
| Dimensions (LxWxH) | 48 x 61 x 147 mm |
| Net Weight | 80 g |
| Waveguide Flange | UG Flange |
| Material | Premium Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Q-Band Precision Integrity
Engineered for the 33-50 GHz spectrum, providing the stable radiation envelope necessary for precision chamber calibration and high-frequency signal management.
Superior Signal Security
The precision aluminum construction ensures low return loss and unwavering stability in professional Signal Defense and interference mitigation sub-systems.
Ultra-Lightweight Integration
Weighing only 80g, this radiator offers industrial-strength reliability with the portability required for field tactical deployments and integrated monitoring systems.
Standardized UG Interface
Features a standardized UG waveguide flange for secure, low-leakage connection to high-frequency distribution networks and communication sub-systems.
Get a Quote / Custom Q-Band Solutions
Contact us for specialized gain configurations, alternative connector types, or customized mounting adapters.
