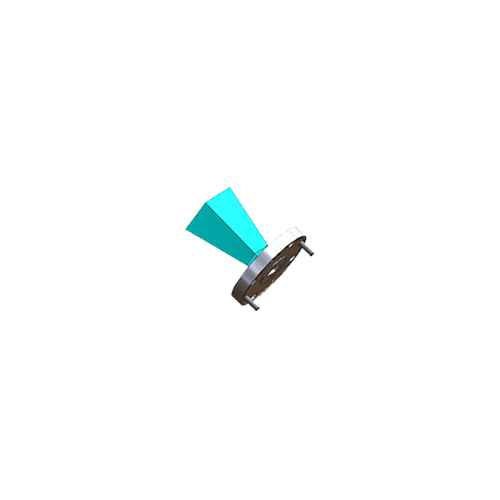

WR22, 33 to 50 GHz, 10dBi Waveguide Horn Antenna without Adapter, Flange: UG

WR22, 33 to 50 GHz, 10dBi Waveguide Horn Antenna without Adapter, Flange: UG

Model No: WI-22-UG-10

Mechanical Drawing: Download

Waveguide: WR-22
Frequency: 33 to 50GHz
Gain: 10

Quantity:

INQUIRY

info-tw@ft168.com.tw

Taiwan Antenna Manufacturer - Horn Antenna for EMC/ EMI testing

We provide measurement and calibration Tests, ODM/ OEM/ OBM/ R&D services

Videos

Description & Specification

Model: WI-22-UG-10
Waveguide: WR-22
Frequency: 33 to 50GHz
Gain: 10
Max Power(W): 150W
H-plane(-3db): 54
E-plane(-3db): 54

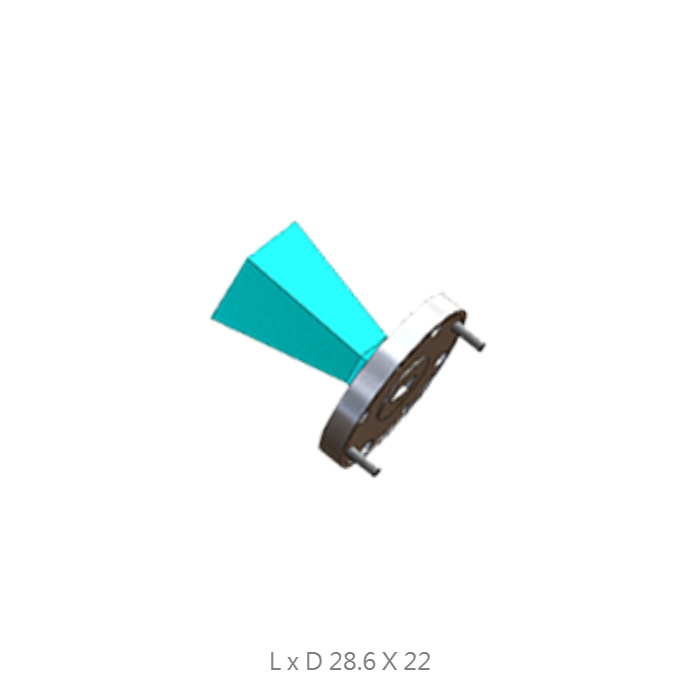

Size(mm): 28.6x22
Weight(g): 10
Waveguide Flange: UG
V.S.W.R: 1.3
