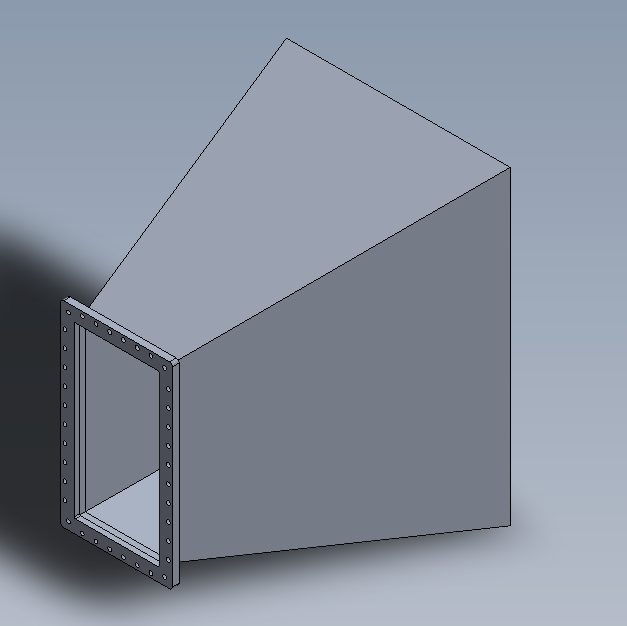

WR2300 320 to 490 MHz 10dbi Waveguide Input Horn Antenna
WR2300 UHF Waveguide Horn Antenna | 320 MHz – 490 MHz | 10 dBi
The WI-2300-UDR-10 is a heavy-duty, high-precision standard gain horn antenna professionally engineered for UHF-band frequency applications. Operating within the 320 MHz to 490 MHz spectrum, it provides a stable nominal gain of 10 dBi with extreme power handling capability of up to 5000 Watts (5 KW). Utilizing the massive WR2300 rectangular waveguide architecture and precision-machined UDR flange interface, it is an essential instrument for Signal Integrity verification, antenna gain calibration, and professional EMC/EMI testing environments requiring high structural stability and high-intensity field strength.
Technical Specifications
Electrical RF Performance
| Frequency Range | 320 - 490 MHz |
| Waveguide Size | WR2300 (EIA Standard) |
| Nominal Gain | 10 dBi |
| Max Power Handling | 5000 Watts (CW) |
| -3dB Beamwidth | H-Plane: 54° | E-Plane: 54° |
| Antenna Type | Waveguide Input Horn (without Adapter) |
Mechanical & Tactical Data
| Flange Designation | UDR (Standardized Waveguide Interface) |

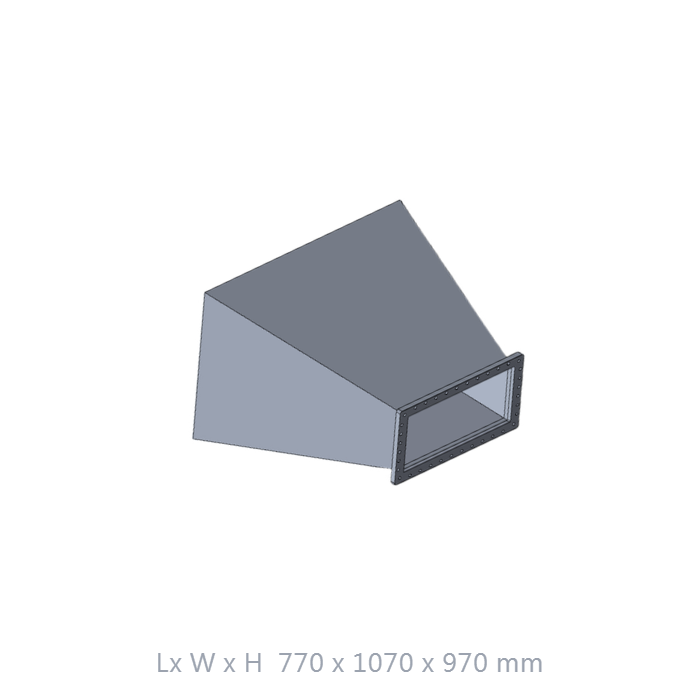

| Dimensions (Lx W x H) | 770 x 1070 x 970 mm |
| Net Weight | 33.8 kg (Industrial Grade) |
| Material | High-strength 6061 Aluminum Alloy |
| Environmental | Waterproof Structure / Outdoor Capable |
Professional Tactical Features
High-Intensity Field Capability
Supports a continuous 5 KW input, enabling high-intensity field strength generation for mission-critical immunity testing and Electronic Shielding procedures at UHF frequencies.
Stable Gain Performance
Consistently maintains a 10 dBi gain across the specified band, ensuring ultra-accurate signal calibration and repeatable results for antenna measurement cycles.
Superior Signal Integrity
Designed for high-integrity electromagnetic acquisition, protecting high-value measurement instrumentation from reflected power in professional RF environments.
Precision Taiwan Build
Manufactured from aerospace-grade aluminum with reinforced structural design to maintain dimensional stability across its expansive 1-meter profile.
Inquire About Professional UHF Solutions
Contact our engineering team for specialized gain calibration data, PTZ controlling functions, tripod mounting solutions, or custom color requirements.
