HS SERIES • L-BAND & UHF (1.12 GHz – 3.30 GHz)

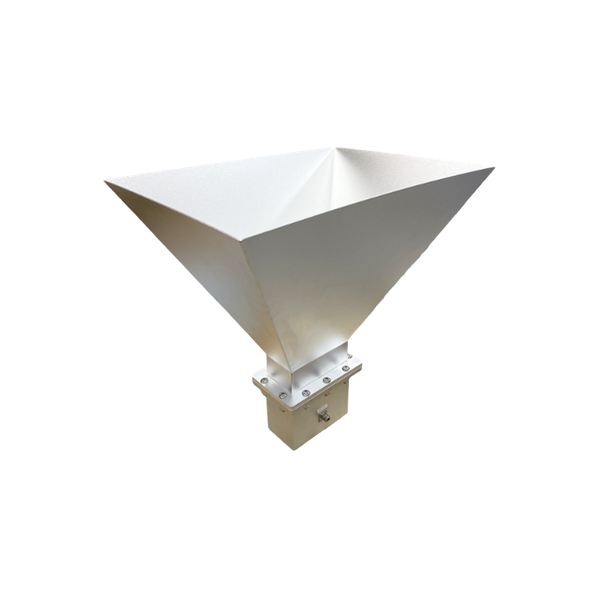

FT-RF L-Band & UHF Standard Gain Horn Antennas
Calibrated L-Band & UHF Standard Gain Horn Antennas (HS Series) covering 1.12 GHz to 3.30 GHz (WR340, WR430, WR510, and WR650). Large aperture design integrated with precision Waveguide-to-Coaxial Adapters for GPS/GNSS receiver testing, aeronautical telemetry communications, and L-band aviation radar installations.
Designed to provide robust mechanical stability, clean radiation pattern symmetry, and reliable standard reference gain steps (10, 15, and 20 dBi).
*Heavy-duty support frames, eye-bolts, and non-metallic tripods recommended for field deployment.
⚡ Core Engineering Highlights
1.12 – 3.30 GHz Coverage
Covers key L-Band GPS/GNSS, aviation radar, and aeronautical telemetry frequencies.
GNSS Calibration Standard
Ideal reference horn for GPS L1/L2/L5 and Galileo satellite receiver calibration.
Large Aperture Design
Large flare mouth geometry delivers high directivity and narrow beamwidths.
Reinforced Base Structure
Heavy-duty structural aluminum ribbing supports large WR340 through WR650 sizes.
Covered Waveguide Models & Frequency Chips:
| Waveguide Standard | Frequency Range | Target Applications | Model Link |
|---|---|---|---|
| WR340 | 2.20 GHz – 3.30 GHz (S/L-Band) | Telemetry Networks, Microwave Backhaul, Wi-Fi 2.4GHz | |
| WR430 | 1.70 GHz – 2.60 GHz (L-Band) | Aeronautical Telemetry, Industrial Microwave Systems | |
| WR510 | 1.45 GHz – 2.20 GHz (L-Band) | GPS/GNSS Receiver Testing, Galileo Calibration | |
| WR650 | 1.12 GHz – 1.70 GHz (L-Band) | GPS L1/L2/L5 Receiver Testing, DAB Broadcast, Radar |
🛠️ Calibration & Customization Options
- Traceable Calibration Data & Far-Field Reports
- Custom Heavy-Duty Mounting Frames & Eye-Bolts
- High CW Power Continuous Wave Adapter Launch Feeds
📐 Recommended Testing Accessories
HS-340-UDR-20A-NF
WR-340 (2.2 GHz to 3.3 GHz) 20dbi Waveguide Standard Horn N-Female Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Typical |
| Waveguide Size: | WR340 (UDR / N-Female) |
| Stock: | 0 |
| 2026/08/21 | |
HS-340-UDR-20A-716
WR-340 (2.2 GHz to 3.3 GHz) 20dbi Waveguide Standard Horn 7/16-Female Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Typical |
| Waveguide Size: | WR340 (7/16-Female DIN) |
| Stock: | 0 |
| 2026/08/21 | |
HS-340-UDR-15A-NF
WR-340 (2.2 GHz to 3.3 GHz) 15dbi Waveguide Standard Horn N-Female Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR340 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-340-UDR-15A-716
WR-340 (2.2 GHz to 3.3 GHz) 20dbi Waveguide Standard Horn 7/16-Female Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR340 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-340-UDR-10A-NF
WR-340 (2.2 GHz to 3.3 GHz) 10dbi Waveguide Standard Horn N-Female Antenna, Flange:UDR
View Details
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR340 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-340-UDR-10A-716
WR-340 (2.2 GHz to 3.3 GHz) 10dbi Waveguide Standard Horn 71/16-Female Antenna
View Details
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR340 / Standard Flange |
| Stock: | 0 |
| 2026/08/21 | |
HS-650-10-R-NF
WR-650 Standard Gain Horn Antenna 1.14 GHz to 1.73 GHz, 10dbi Gain, N-Female Connector with Waterproof Radome
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-650 (L-Band) |
| Stock: | 0 |
| 2026/06/24 | |
HS-650-15-R-NF
WR-650 Standard Gain Horn Antenna with Radome 1.14 GHz to 1.73 GHz, 15dbi Gain
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-650 Horn |
| Stock: | Contact us |
| 2026/06/25 | |
HS-650-10-R-NF-B
WR-650 Standard Gain Horn Antenna with Radome 1.14 GHz to 1.73 GHz, 10dbi Gain
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-650 Horn |
| Stock: | Contact us |
| 2026/06/25 | |
WI-430-UDR-20
WR430 Waveguide Input Horn Antenna without Adapter, frequency 1.72 GHz to 2.60 GHz, 20dbi, UDR Flange, No waveguide adapter
View Details
FT-RF
| Frequency Range: | 1.72 to 2.60 GHz |
| Waveguide size / Flange: | EIA WR-430 / Standard UDR |
| Gain / Symmetrical Beam: | 20 dBi Calibrated / 20°×18° |
| Max CW Power / Dimensions: | 1000 Watts / 424×564×1020 mm |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
WI-430-UDR-15E
WR430 Waveguide Input Horn Antenna without Adapter, E-plane sectoral, frequency 1.72 GHz to 2.60 GHz, 15dbi Gain, UDR Flange, No waveguide adapter
View Details
FT-RF
| Frequency Range: | 1.72 - 2.60 GHz |
| Waveguide size / Flange: | EIA WR-430 / Standard UDR |
| Antenna Gain / Style: | 15 dBi / E-Plane Sectoral |
| Max CW Power / Beam: | 1000 Watts / 112°×18° Fan-Beam |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
HS-650-UDR-20-NF
WR-650 Standard Gain Horn Antenna 1.14 GHz to 1.73 GHz, 20dbi Gain, N-Female Connector
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Typical |
| Waveguide Size: | WR-650 (UG-417A/U Style) |
| Stock: | 0 |
| 2026/08/21 | |
