Professional Wide-Beam Antennas

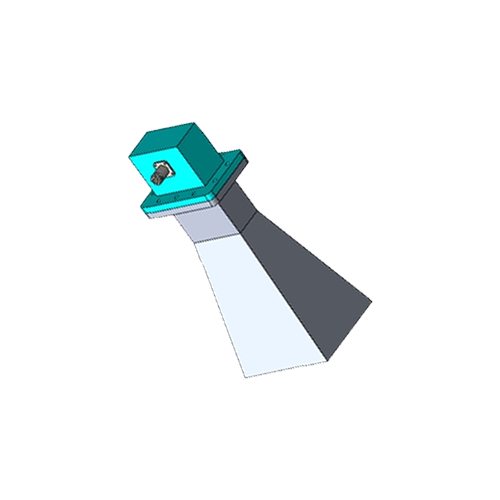

HS-340-UDR-10A-NF WR-340 Horn Antenna
Professional S-band standard gain horn antenna (2.2 - 3.3 GHz). Features a specialized 54° wide beamwidth design for efficient signal coverage in laboratory and spectrum monitoring environments.
Technical Specifications
| Frequency Range | 2.2 - 3.3 GHz |
| Gain (Typical) | 10 dBi |
| Peak Power (CW) | 360 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 54° / 54° |
| Flange / Connector | UDR / N-Female |

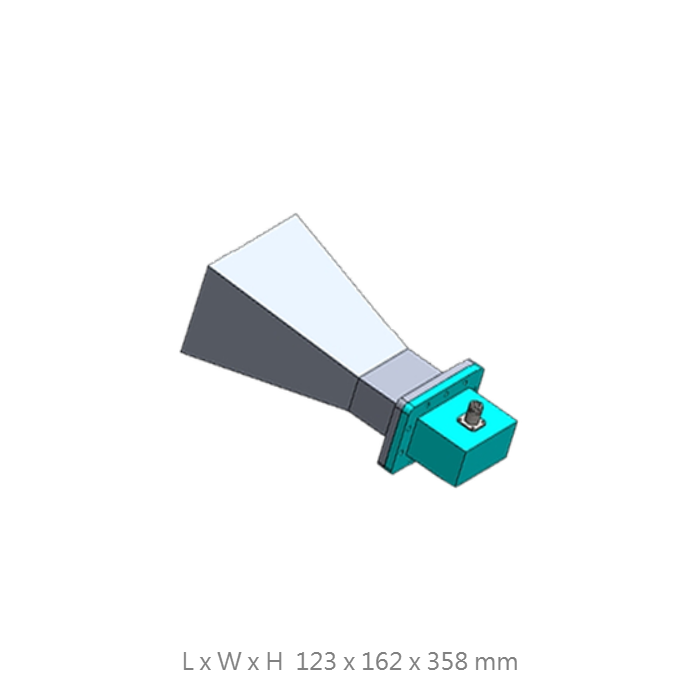

| Dimensions / Weight | 123 x 162 x 358 mm / 1500g |
Design Highlights
54° Wide Coverage
Engineered for high-efficiency signal capture and broad environment monitoring without the need for frequent realignments.
Compact Aerospace Build
Smaller footprint (123mm width) compared to high-gain models, making it ideal for space-constrained measurement setups.
Stable Signal Reception
Symmetrical radiation pattern and precision-machined aluminum body ensure consistent 10 dBi gain across the S-band spectrum.
Custom mounting fixtures or specific calibration data available upon request.
