HS-340-UDR-15A-716 High-Power Horn Antenna
HIGH-POWER S-BAND SOLUTIONS | WR-340 Standard Gain Horn | 2.2 GHz – 3.3 GHz | 15 dBi
The HS-340-UDR-15A-716 is a high-performance WR-340 standard gain horn antenna professionally engineered for extreme power deployments across the 2.2 GHz to 3.3 GHz S-band frequency spectrum. This industrial-grade antenna is upgraded with a heavy-duty 7/16-Female (High Power DIN) connector interface to safely manage 800 Watts of continuous wave power. Built with a precision CNC-machined aluminum body and specialized coating, it delivers stable Signal Security, low VSWR, and highly repeatable radiation configurations required for demanding tactical operations and professional laboratory testing.
Electrical & RF Performance
| Frequency Range | 2.2 - 3.3 GHz |
| Gain (Typical) | 15 dBi |
| Peak Power (CW) | 800 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 32° / 32° |
Mechanical & Interface Data
| Connector Interface | 7/16-Female (High Power DIN) |

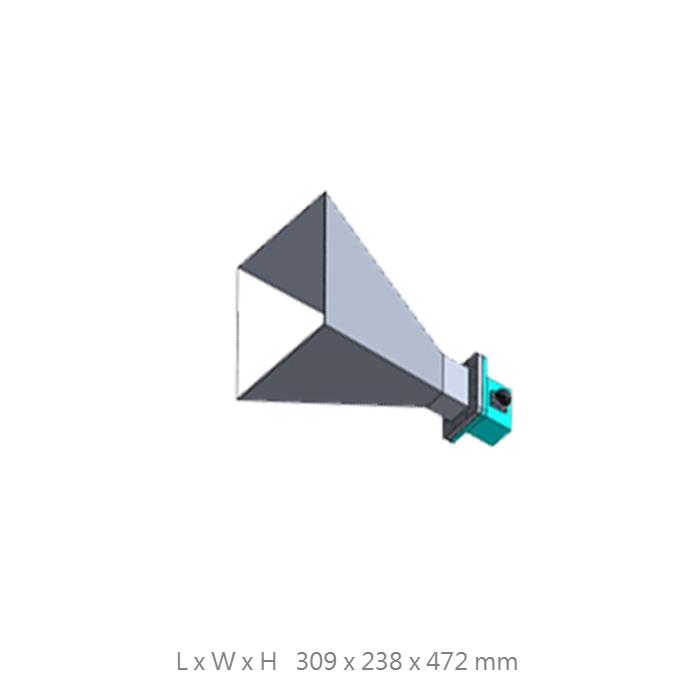

| Dimensions | 309 x 238 x 472 mm |
| Weight | 2200g |
| Material Build | CNC-Machined Aluminum with Specialized Coating |
800W Extreme Power Handling
Robust structural engineering combined with 7/16-DIN interface for continuous high-intensity electronic security operations.
Aerospace-Grade Construction
CNC-machined aluminum body with specialized coating ensures mechanical integrity and uniform 15 dBi gain patterns.
Stable Radiation Profile
Precise 32° beamwidth control across H and E planes for reliable Signal Security and professional laboratory monitoring.
Optimized Performance
Expertly optimized geometry limits internal boundary losses, delivering exceptional efficiency for critical S-band transmitter alignments.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
