WI - L-BAND & UHF (1.12 GHz – 3.30 GHz)
- Select
L-BAND & UHF (1.12 GHz – 3.30 GHz)

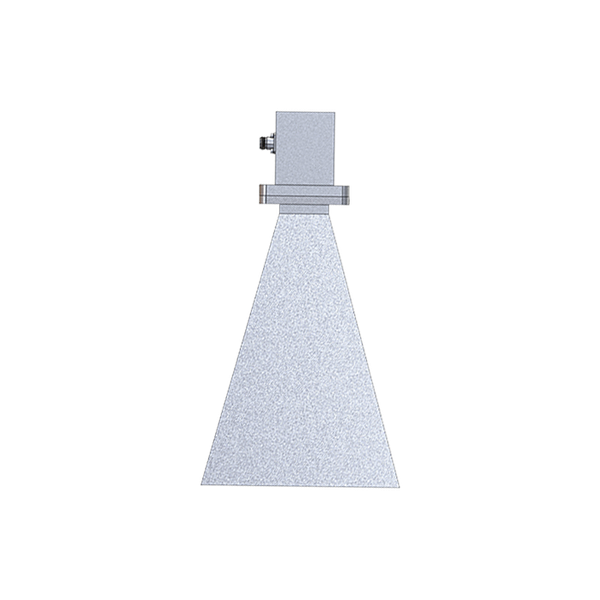

L-Band & UHF Waveguide Horn Antennas
Large-aperture L-Band & UHF Waveguide Horn Antennas (WR340, WR430, WR510, and WR650). Tailored for GPS/GNSS satellite navigation testing, aeronautical telemetry communications, L-band aviation radar, and high-power industrial microwave setups.
Designed to provide robust mechanical stability, clean radiation pattern symmetry, and high directivity across 1.12 GHz to 3.30 GHz.
*Heavy-duty support frames, eye-bolts, and non-metallic tripods recommended.
⚡ Core Engineering Highlights
1.12 – 3.30 GHz Coverage
Covers key L-Band GPS, L-band radar, and aeronautical frequencies.
GNSS Calibration
Ideal reference antenna for GPS L1/L2/L5 and Galileo receiver testing.
Large Aperture
Large flare mouth ensures high directional gain and clean radiation beams.
Reinforced Base
Built with structural ribbing to support larger waveguide dimensions.
Covered Waveguide Models & Frequency Chips:
| Waveguide Standard | Frequency Range | Target Applications | Model Link |
|---|---|---|---|
| WR340 | 2.20 GHz – 3.30 GHz | LTE/5G Mid-Band, Telemetry, Wi-Fi 2.4GHz | |
| WR430 | 1.70 GHz – 2.60 GHz | Aeronautical Telemetry, Industrial Microwave | |
| WR510 | 1.45 GHz – 2.20 GHz | GPS/GNSS Testing, Galileo Satellite Calibration | |
| WR650 | 1.12 GHz – 1.70 GHz | L-Band Aviation Radar, DAB Broadcast Feeds |
🛠️ Customization & Engineering Options
- Custom Reinforced Mounting Brackets & Eye-Bolts
- High CW Power Waveguide Coaxial Adapter Feed
- Individual Far-Field Pattern Measurement Reports
📐 Recommended Testing Accessories
HS-650-10-R-NF
WR-650 Standard Gain Horn Antenna 1.14 GHz to 1.73 GHz, 10dbi Gain, N-Female Connector with Waterproof Radome
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-650 (L-Band) |
| Stock: | 0 |
| 2026/06/24 | |
HS-650-15-R-NF
WR-650 Standard Gain Horn Antenna with Radome 1.14 GHz to 1.73 GHz, 15dbi Gain
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-650 Horn |
| Stock: | Contact us |
| 2026/06/25 | |
HS-650-10-R-NF-B
WR-650 Standard Gain Horn Antenna with Radome 1.14 GHz to 1.73 GHz, 10dbi Gain
View Details
FT-RF
| Frequency Range: | 1.14 - 1.73 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-650 Horn |
| Stock: | Contact us |
| 2026/06/25 | |
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi (30°×29°) |
| Waveguide Size: | WR-340 (UDR / 1000W) |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi (30°×29°) |
| Waveguide Size: | WR-340 (UDR / 1000W) |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 2.2 - 3.3 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi (30°×29°) |
| Waveguide Size: | WR-340 (UDR / 1000W) |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 1.45 - 2.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi (30°×29°) |
| Waveguide Size: | WR-510 (UDR / 1000W) |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 1.45 - 2.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi (58°×56°) |
| Waveguide Size: | WR-510 (UDR / 1000W) |
| Stock: | 0 |
| 2026/06/18 | |
WI-430-UDR-20
WR430 Waveguide Input Horn Antenna without Adapter, frequency 1.72 GHz to 2.60 GHz, 20dbi, UDR Flange, No waveguide adapter
View Details
FT-RF
| Frequency Range: | 1.72 to 2.60 GHz |
| Waveguide size / Flange: | EIA WR-430 / Standard UDR |
| Gain / Symmetrical Beam: | 20 dBi Calibrated / 20°×18° |
| Max CW Power / Dimensions: | 1000 Watts / 424×564×1020 mm |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
WI-430-UDR-15E
WR430 Waveguide Input Horn Antenna without Adapter, E-plane sectoral, frequency 1.72 GHz to 2.60 GHz, 15dbi Gain, UDR Flange, No waveguide adapter
View Details
FT-RF
| Frequency Range: | 1.72 - 2.60 GHz |
| Waveguide size / Flange: | EIA WR-430 / Standard UDR |
| Antenna Gain / Style: | 15 dBi / E-Plane Sectoral |
| Max CW Power / Beam: | 1000 Watts / 112°×18° Fan-Beam |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
WI-430-UDR-10H
WR430 Waveguide Input Horn Antenna without Adapter, H-plane sectoral, frequency 1.72 GHz to 2.60 GHz, 10dbi Gain, UDR Flange, No waveguide adapter
View Details
FT-RF
| Frequency Range: | 1.72 to 2.60 GHz |
| Waveguide size / Flange: | EIA WR-430 / Universal UDR |
| Antenna Gain / Style: | 10 dBi / H-Plane Sectoral |
| Max CW Power / Beam: | 1000 Watts / 16°×112° Fan-Beam |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
WI-650-UDR-20
WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 20dbi Gain, without waveguide adapter
View Details
FT-RF
| Frequency Range: | 1.15 - 1.72 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Calibrated (20°×19°) |
| Waveguide Size: | WR-650 (Standard UDR Style / 1000W) |
| Stock: | 0 |
| 2026/08/21 | |
