| Frequency Range Class | 2.2 - 3.3 GHz (S-Band Continuous Support) |
| Waveguide Standard Size | EIA WR-340 / WG11.2 / R26 Geometry Profile Layout |
| Nominal Gain (Typical) | 20 dBi |
| V.S.W.R Profile (Max) | ≤ 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 1000 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H/E Plane) | 30° / 29° (Symmetrical Boresight Focus) |
| Nominal System Impedance | 50 Ohms |

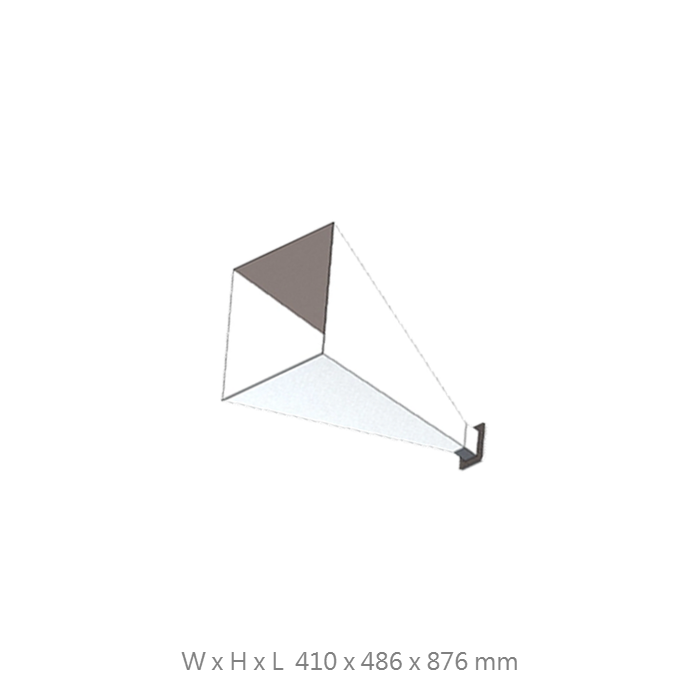

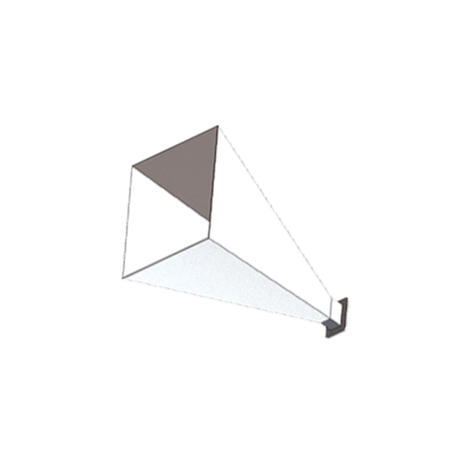

| Physical Dimensions (W x H x L) | 410 x 486 x 876 mm |
| Net Weight Profile | 5000 g / 5.0 kg (Precision Rigid Footprint) |
| Waveguide Connection Flange | Standardized UDR Style Flange Layout Interface |
| Structural Body Material | Premium Grade High-Conductivity Aluminum Alloy Core |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Industrial Grade) |
Engineered to handle massive continuous wave power loads, providing a robust radiator for intensive Signal Security operations and high-power radar simulation grids.
Delivers an intensified 20 dBi gain tracking coefficient with symmetrical beamwidths, providing the ultimate boresight accuracy necessary for mission-critical antenna calibration.
Optimized WR-340 internal geometry ensures minimal return loss and highly stable radiation patterns for repeatable trace validation metrics in professional lab settings.
Manufactured from premium grade aluminum alloy to ensure superior heat dissipation and maximum structural stability during long-term field deployments and harsh diagnostic runs.
Contact our technical engineering division today to request official quote sheets, individual certified calibration records, certified individual VSWR plot sheets, or customized waveguide flange options.
