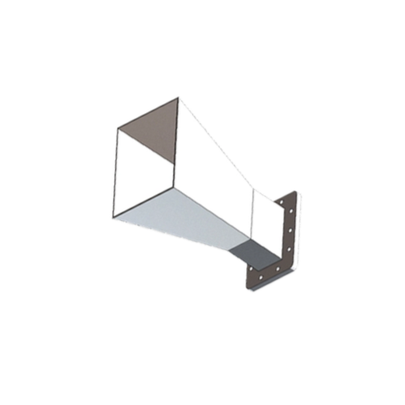

| Frequency Range Class | 2.2 GHz to 3.3 GHz (S-Band Continuous Support) |
| Waveguide Standard Size | EIA WR-340 / WG10 / R26 Layout Geometry |
| Nominal Gain (Typical) | 10 dBi |
| Maximum Power Handling | 1000 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H/E Plane) | 30° / 29° (Focused Boresight Precision) |
| Nominal System Impedance | 50 Ohms |

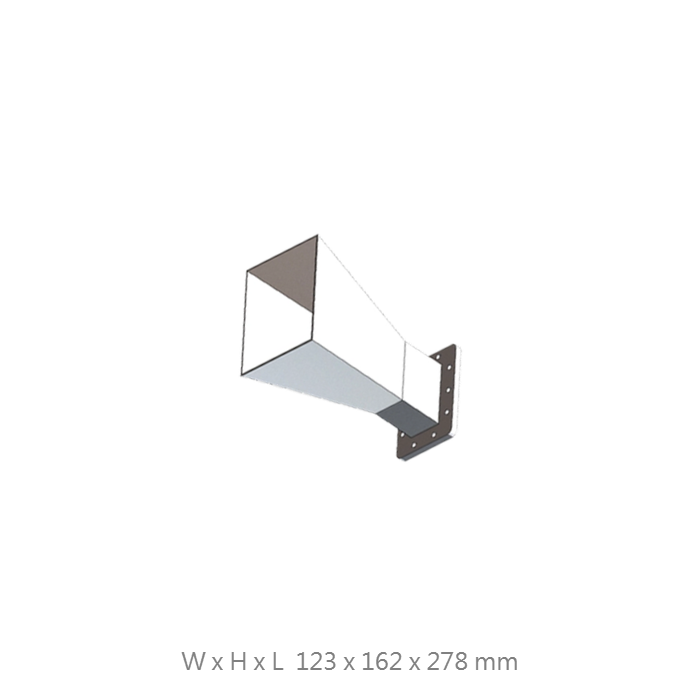

| Physical Dimensions (W x H x L) | 123 x 162 x 278 mm |
| Net Weight Profile | 820 g (Precision Lightweight Footprint) |
| Waveguide Connection Flange | Standardized UDR Style Flange Layout Interface |
| Structural Body Material | High-Grade Aerospace-Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Industrial Grade) |
Robust aluminum construction supports high-power transmission for radar simulation, industrial heating, and intensive immunity testing applications.
Optimized for the 2.2-3.3 GHz band, supporting advanced signal management and interference mitigation in professional RF networks.
Precision-manufactured to ensure low return loss and a consistent gain profile for repeatable and accurate field results.
At only 820g, this antenna provides exceptional structural rigidity while remaining easy to deploy on tactical masts or tripod systems.
Contact our technical engineering division today to request official quote sheets, individual certified calibration records, unique mechanical drawings, or alternative flange requirements.
