| Frequency Range Class | 2.2 GHz to 3.3 GHz (S-Band Continuous Support) |
| Waveguide Standard Size | EIA WR-340 / WG11.2 / R26 Layout Geometry |
| Nominal Gain (Typical) | 15 dBi |
| V.S.W.R Profile (Max) | ≤ 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 1000 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H/E Plane) | 30° / 29° (Focused Boresight Precision) |
| Nominal System Impedance | 50 Ohms |

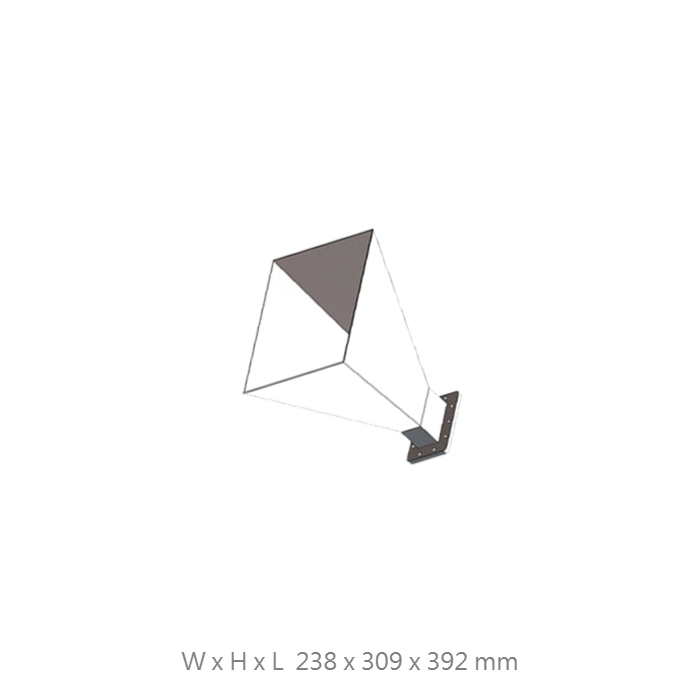

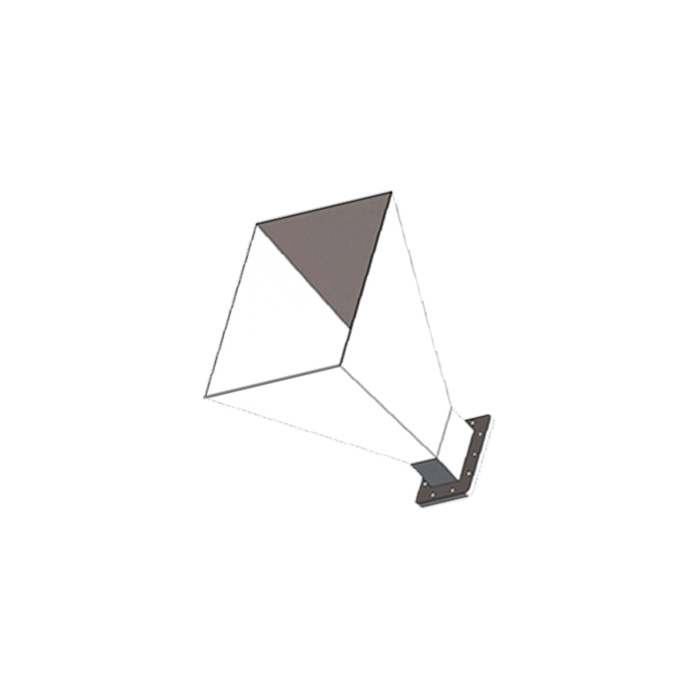

| Physical Dimensions (W x H x L) | 238 x 309 x 392 mm |
| Net Weight Profile | 1600 g (1.6 kg Precision Rigid Assembly) |
| Waveguide Connection Flange | Standardized UDR Style Flange Layout Interface |
| Structural Body Material | High-Grade Aerospace-Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Industrial Grade) |
Robust aluminum construction supports high-power transmission, ideal for radar simulation, industrial heating, and intensive immunity testing applications.
Provides a narrow, focused beam profile, essential for long-range calibration and advanced boresight microwave measurements in S-Band.
Optimized for the 2.2-3.3 GHz band, supporting advanced signal management and interference mitigation in professional RF networks.
At only 1.6 kg, this antenna provides exceptional structural rigidity while remaining easy to deploy on tactical masts or laboratory positioners.
Contact our technical engineering division today to request official quote sheets, individual calibration data, unique mechanical drawings, or customized waveguide flange requirements.
