C-BAND BROADBAND (3.95 GHz – 10.0 GHz)

C-Band Waveguide to Coaxial Adapters



Broadband C-Band Waveguide to Coaxial Adapters covering 3.95 GHz to 10.0 GHz (WR112, WR137, WR159, and WR187). Fitted with N-Type female/male connectors for robust low-loss microwave transmissions.

Ideal for C-band satellite ground terminals, 5G N77/N78 sub-6 GHz evaluations, and commercial terrestrial microwave links.

*Custom CPR, FDP, FBP, and FAP flanges available upon request.

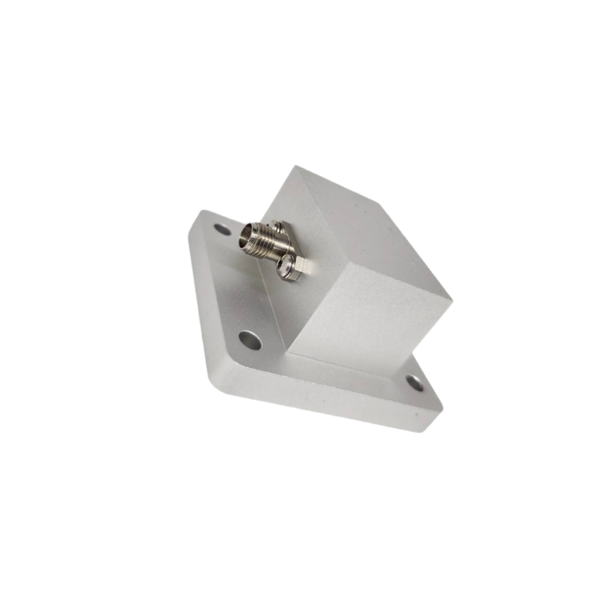

C-Band Adapter Photo

⚡ Core Engineering Highlights

3.95 – 10.0 GHz Band

Covers standard commercial SatCom and 5G mid-band frequencies.

Low VSWR Match

Optimized internal transitions deliver maximum power transfer stability.

N-Type Connectors

Stainless steel N-Type interfaces built for high mating longevity.

Weather Resistant

Passivated corrosion-resistant finishes suited for outdoor dish feeds.

Covered Waveguide Models & Frequency Range:
Upper C-Band / X-Band (7.05 – 10.0 GHz) Standard C-Band (5.85 – 8.20 GHz) Extended C-Band (4.90 – 7.05 GHz) Lower C-Band (3.95 – 5.85 GHz)
Waveguide Standard Frequency Range Target Applications Model Link
WR112 7.05 GHz – 10.00 GHz X-Band Radar, SatCom Uplink, Commercial Feeds
WR112
WR137 5.85 GHz – 8.20 GHz C-Band SatCom Uplink/Downlink, Microwave Backhaul
WR137
WR159 4.90 GHz – 7.05 GHz 5G N77/N78 Sub-6GHz Testing, Satellite Ground Station
WR159
WR187 3.95 GHz – 5.85 GHz Lower C-Band Receiver, Radio Astronomy, Feeds
WR187

🛠️ Customization & Engineering Options

  • CPR / FAP / FBP Flange Custom Drilling
  • High CW Power Waveguide Pin Assemblies
  • Custom In-Line Launch Configurations
Back to WC Series Main Page Inquire C-Band Adapters
WR112 (7.05 to 10 GHz) N-Female streamlined Waveguide adapter / Flange: PBR
WC-112-PBR-S1-SF

WR112 (7.05 to 10 GHz) N-Female streamlined Waveguide adapter / Flange: PBR

View Details
Frequency Range: 7.05 - 10.0 GHz
Waveguide: WR-112
Connector: N-Female
Stock: 0
2026/08/19
WR159 (4.9 to 7.05GHz) Waveguide Coaxial Adapter Flange: PAR, N-Female
WC-159-PAR-NF

WR159 (4.9 to 7.05GHz) Waveguide Coaxial Adapter Flange: PAR, N-Female

View Details
Frequency Range: 4.9 - 7.05 GHz
Waveguide Type: WR-159 (PAR Flange)
Connector: N-Female
Stock: 0
2026/06/10
WR187 Waveguide Coaxial Adapter, frequency from 3.95GHz to 5.85GHz, SMA-ale connector, UDR Flange
WC-187-UDR- SF

WR187 Waveguide Coaxial Adapter, frequency from 3.95GHz to 5.85GHz, SMA-ale connector, UDR Flange

View Details
Frequency Range: 3.95 - 5.85 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 260 Watts (CW)
Waveguide Size: WR-187 (SMA-Male)
Stock: 0
2026/06/10
WR187 Waveguide Coaxial Adapter, frequency from 3.95GHz to 5.85GHz, SMA-Female connector, UDR Flange
WC-187-UDR-SF

WR187 Waveguide Coaxial Adapter, frequency from 3.95GHz to 5.85GHz, SMA-Female connector, UDR Flange

View Details
Frequency Range: 3.95 - 5.85 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 260 Watts (CW)
Waveguide Size: WR-187 (UDR / SMA-Female)
Stock: 0
2026/06/24
WR159(4.9 to 7.05GHz) SMA-Female Waveguide Coaxial Adapter Flange: PAR
WC-159-PAR-SF

WR159(4.9 to 7.05GHz) SMA-Female Waveguide Coaxial Adapter Flange: PAR

View Details
FT-RF
Frequency Range: 4.9 - 7.05 GHz
Waveguide Size: WR-159
Connector: SMA-Female
Stock: 0
2026/06/10
WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, SMA-Female connector, UDR Flange
WC-159-UDR-SF

WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, SMA-Female connector, UDR Flange

View Details
Frequency Range: 4.90 - 7.05 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 320 Watts (CW)
Waveguide Size: WR-159 (UDR / N-Female)
Stock: 0
2026/06/10
WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, N-Female connector, UDR Flange
WC-159-UDR-NF

WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, N-Female connector, UDR Flange

View Details
Frequency Range: 4.90 - 7.05 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 320 Watts (CW)
Waveguide Size: WR-159 (UDR / N-Female)
Stock: 0
2026/06/10
WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, SMA-Female connector, UAR Flange
WC-159-UAR-SF

WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, SMA-Female connector, UAR Flange

View Details
Frequency Range: 4.90 - 7.05 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 250 Watts (CW)
Waveguide Size: WR-159 (R58 / SMA-Female)
Stock: 0
2026/06/10
WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, N Female connector, UAR Flange
WC-159-UAR-NF

WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, N Female connector, UAR Flange

View Details
Frequency Range: 4.90 - 7.05 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 280 Watts (CW)
Waveguide Size: WR-159 (R58 / N-Female)
Stock: 0
2026/06/10
WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, SMA Female connector, PDR Flange
WC-159-PDR-SF

WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, SMA Female connector, PDR Flange

View Details
Frequency Range: 40.0 - 60.0 GHz
Antenna Type: Standard Horn Antenna
Nominal Gain: 10 dBi (54°×54°)
Waveguide Size: WR-19 (U-Band)
Stock: 0
2026/06/10
WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, N-Female connector, PDR Flange
WC-159-PDR-NF

WR-159 Waveguide to Coaxial Adapter, 4.9 to 7.05 GHz, N-Female connector, PDR Flange

View Details
Frequency Range: 4.90 - 7.05 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 320 Watts (CW)
Waveguide Size: WR-159 (R58)
Stock: 0
2026/06/10
WR-137 Waveguide to Coaxial Adapter, 5.85 to 8.2GHz, N-Female connector, UDR Flange NEW
WC-137-UDR-NF

WR-137 Waveguide to Coaxial Adapter, 5.85 to 8.2GHz, N-Female connector, UDR Flange

View Details
Frequency Range: 5.85 - 8.2 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 300 Watts (CW)
Waveguide Size: WR-137 (UDR / N-Female)
Stock: 122
2026/06/09
