Description & Specification

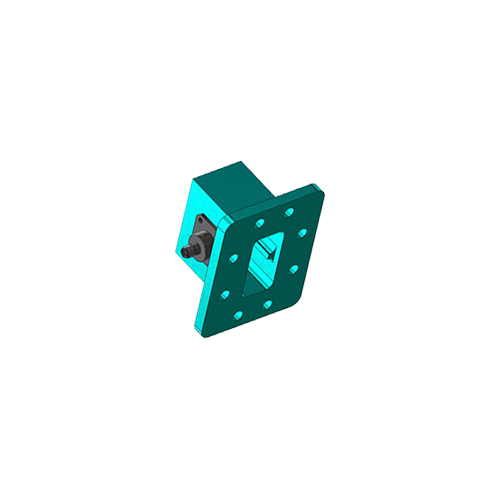

WC-159-UDR-SF Waveguide to Coaxial Adapter
4.9 - 7.05 GHz | 290W CW | Professional Grade
The WC-159-UDR-SF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the 4.9 GHz to 7.05 GHz frequency range. Optimized for professional signal security operations and mission-critical laboratory testing, it delivers superior signal integrity with a low VSWR of 1.25. Featuring a rugged aluminum body and a high-durability 303 stainless steel SMA-Female connector, this adapter provides unwavering stability for advanced signal defense deployments and radar system measurements.
Electrical & RF Performance
| Frequency Range | 4.9 GHz - 7.05 GHz |
| Waveguide Interface | WR-159 (UDR Compatible) |
| Max Power Handling | 290 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| Connector Type | SMA-Female (Stainless Steel) |
Mechanical & Physical

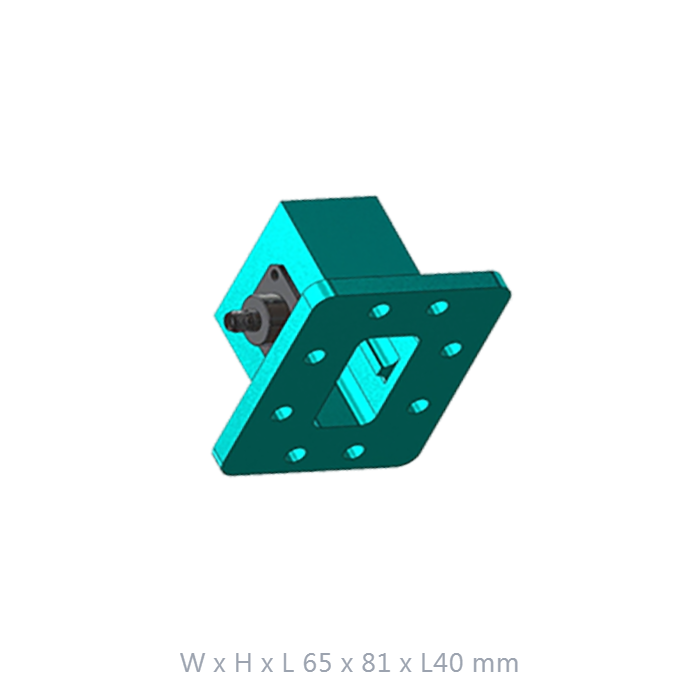

| Dimensions | 65 x 81 x 40 mm |
| Weight | 235 g |
| Body Material | High-Grade Aluminum |
290W Power Reliability
Engineered for high-intensity operations, supporting continuous power loads ideal for laboratory evaluation and professional signal management.
Precision Signal Integrity
Optimized internal geometry ensures a maximum VSWR of 1.25, delivering minimal signal reflection and accurate data collection across the entire frequency band.
Tactical Signal Security
Designed to support signal defense infrastructure, providing a reliable link for interference mitigation and professional surveillance monitoring sub-systems.
Ruggedized Build
Constructed from aerospace-grade aluminum and 303 stainless steel to ensure repeatable mechanical coupling and superior electrical stability in demanding environments.
Contact FT-RF Engineering Division
Contact our engineering team to obtain individual test reports, technical drawings, or customized RF interface requirements.
