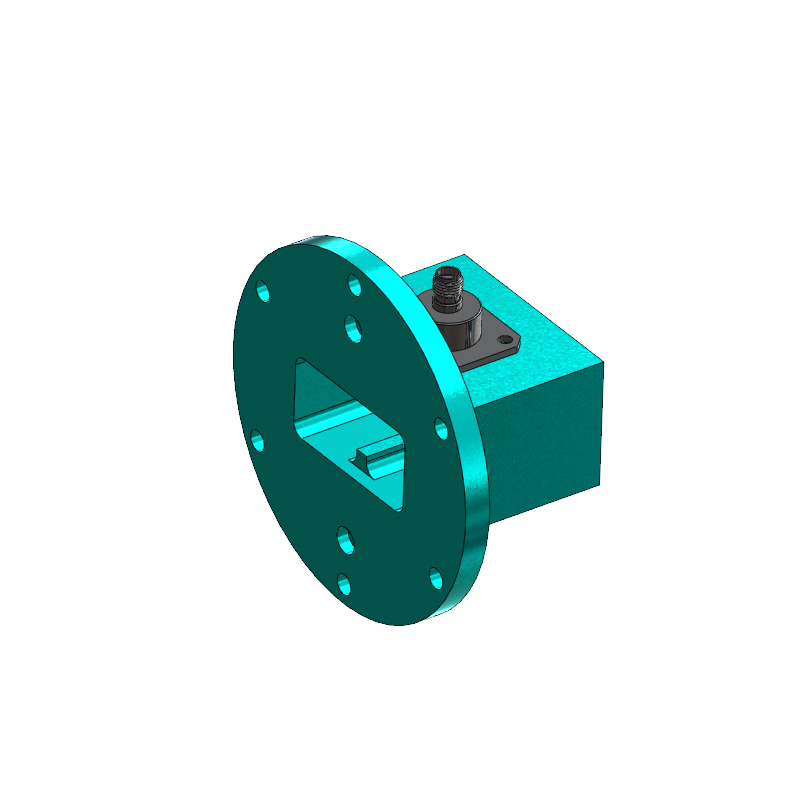

WR-159 Waveguide to Coaxial Adapter
Model: WC-159-UAR-SF | 4.9 - 7.05 GHz | SMA-Female | 250W Max
The WC-159-UAR-SF is a high-performance Waveguide to Coaxial Adapter designed for precision C-band operations within the 4.9 GHz to 7.05 GHz range. Optimized for Signal Defense and satellite link dominance, it features a ruggedized aluminum body with a 303 Stainless Steel joint for superior mechanical endurance. This adapter complies with international standards including EIA WR159 and RSCS WG13, delivering an ultra-stable 1.25 V.S.W.R. and handling up to 250 Watts of continuous power.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 4.90 - 7.05 GHz |
| Waveguide Standard | WR159 (WG13 / R58) |
| Maximum Power Handling | 250 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| Cutoff Frequency (Lowest) | 3.712 GHz |
Mechanical & Physical Specs

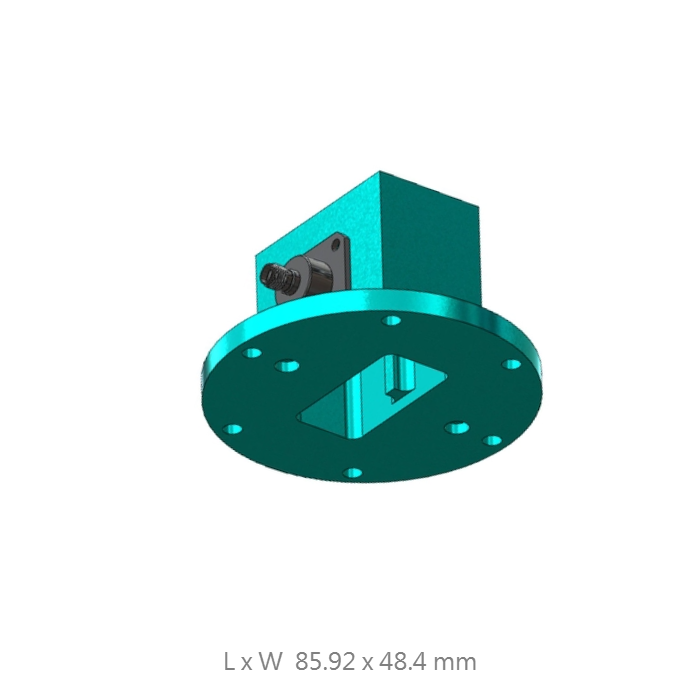

| Dimensions (LxW) | 85.92 x 48.4 mm |
| Net Weight | 230 g |
| Body / Joint Material | Aluminum / 303 Stainless Steel |
| Flange / Connector | UAR Flange / SMA-Female |
| Internal Dimensions | 40.386 x 20.193 mm |
Key Tactical Features
Broadband C-Band Transition
Ensures low-loss transition across the full 4.9-7.05 GHz band, providing a critical link for high-frequency signal management systems.
Stainless Steel Hybrid Build
Combines a lightweight aluminum body with a 303 Stainless Steel joint, ensuring maximum mating durability and mechanical survival in field use.
Superior Signal Integrity
Precision-machined internal waveguide geometry ensures low return loss and unwavering stability in professional communication networks.
Standardized Global Compatibility
Fully compliant with WR159 (EIA) and WG13 (British Military) standards, allowing seamless integration into international microwave infrastructures.
Get a Quote / Custom RF Solutions
Contact us for specialized flange patterns, alternative connector types (N/TNC), or integrated waveguide assembly requirements.
