WR-159 Waveguide to Coaxial Adapter
Model: WC-159-PDR-NF | 4.9 - 7.05 GHz | N-Female | 320W Max
The WC-159-PDR-NF is a high-performance Waveguide to Coaxial Adapter specifically engineered for precision C-band operations within the 4.9 GHz to 7.05 GHz spectrum. Optimized for Signal Security and professional microwave link infrastructures, it features a ruggedized aluminum body with a high-durability 303 stainless steel joint. This adapter delivers an ultra-stable 1.25 VSWR and handles up to 320 Watts of continuous power, serving as a critical transition link for satellite communications and advanced Signal Defense operations.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 4.9 - 7.05 GHz |
| Waveguide Standard | WR-159 (R58 / WG13) |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 320 Watts |
Mechanical & Physical Specs

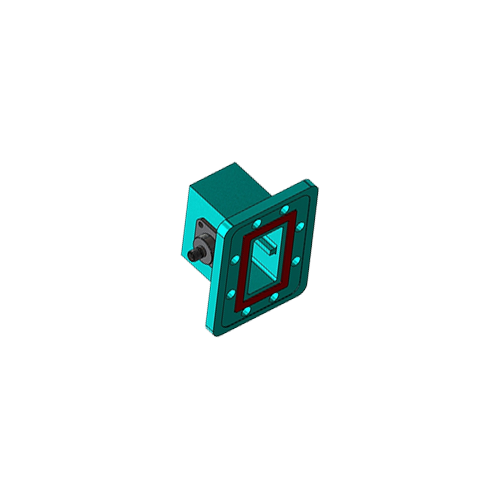

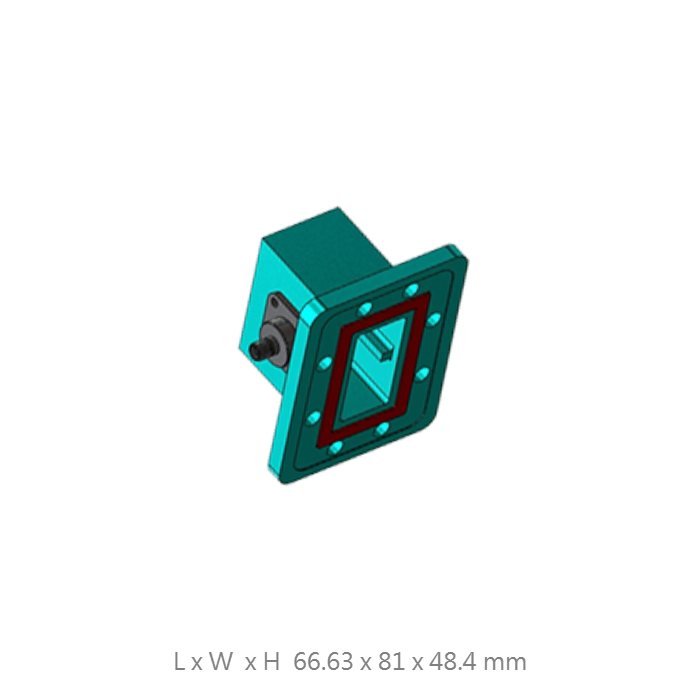

| Dimensions (LxWxH) | 66.63 x 81 x 48.4 mm |
| Net Weight | 230 g |
| Waveguide Flange | PDR Flange |
| Connector Type | N-Female |
| Material (Body / Joint) | Aluminum / 303 Stainless Steel |
Key Tactical Features
Broadband C-Band Transition
Ensures low-loss transition across the full 4.9-7.05 GHz band, providing a critical low-insertion-loss link for high-frequency signal management systems.
Stainless Steel Hybrid Build
Combines a lightweight aluminum body with a 303 stainless steel joint, ensuring maximum mating durability and mechanical survival in field Signal Security environments.
Superior Signal Integrity
Precision-machined internal waveguide geometry ensures low return loss and unwavering stability in professional communication networks and Signal Defense sub-systems.
High-Power Industrial Reliability
Engineered to handle 320W continuous wave transmission with superior thermal stability and predictable performance in diverse environmental conditions.
Get a Quote / Custom RF Solutions
Contact us for specialized flange patterns, alternative connector types, or integrated waveguide assembly requirements.
