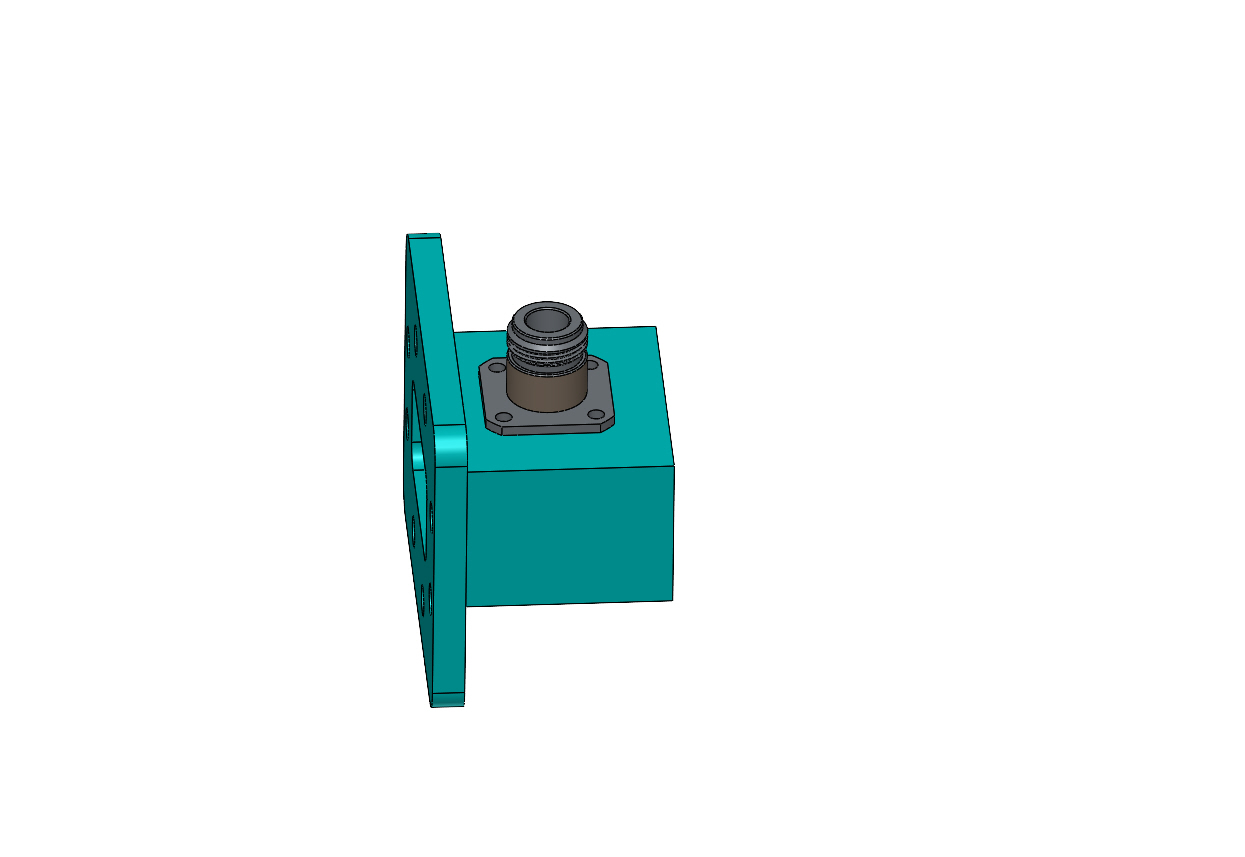

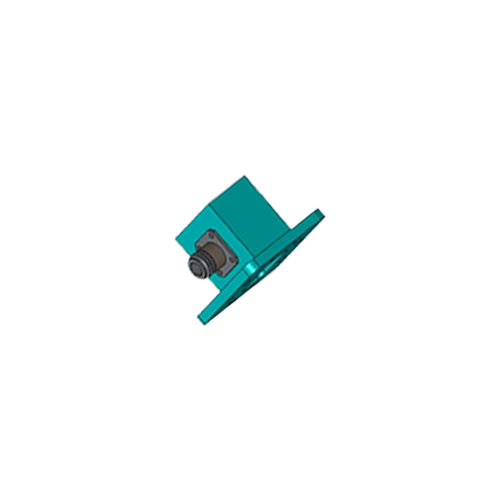

WC-159-UDR-NF Waveguide to Coaxial Adapter
Precision C-Band Transition | High-Power WR-159 Profile | 4.9 - 7.05 GHz
The WC-159-UDR-NF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the 4.9 GHz to 7.05 GHz frequency range. Optimized for professional Signal Security operations and mission-critical laboratory testing, it ensures superior Signal Integrity with a low VSWR of 1.25. Featuring a rugged aluminum body and a high-durability 303 Stainless Steel N-Female connector, this adapter provides unwavering stability for advanced Signal Defense deployments and radar system measurements. Capable of handling up to 320 Watts (CW) of continuous wave power, this premium transition component is designed and manufactured in Taiwan to exceed extreme industrial measurement certifications.
Electrical Performance
| Frequency Range | 4.9 - 7.05 GHz |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 320 Watts (CW) |
Mechanical & Material
| Waveguide Standard | WR-159 (R58) |
| Waveguide Flange | UDR Compatible |
| Coaxial Connector Type | N-Female |

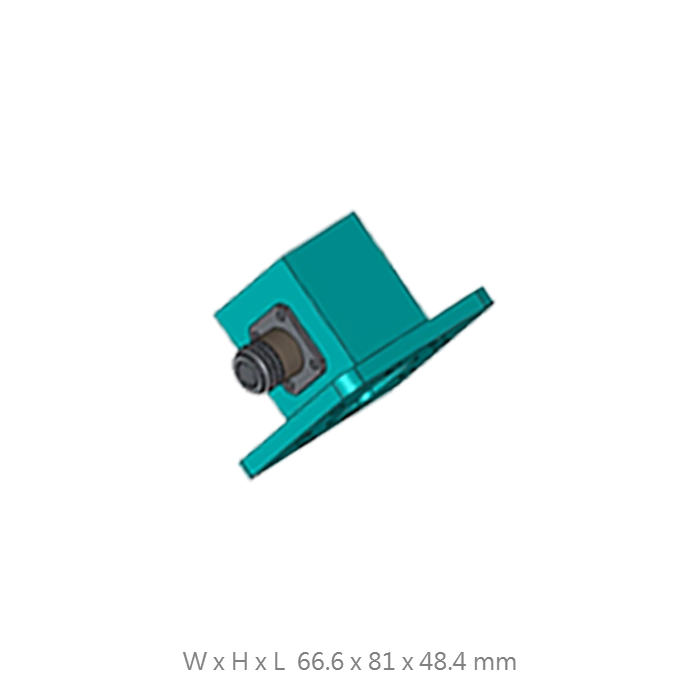

| Dimensions (W x H x L) | 66.6 x 81 x 48.4 mm |
| Net Weight | 240 g |
| Body / Joint Material | Aluminum / 303 Stainless Steel |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
Broadband C-Band Transition
Ensures low-loss transition across the full 4.9-7.05 GHz band, providing a critical low-insertion-loss link for high-frequency signal management systems.
Stainless Steel Hybrid Build
Combines a lightweight aluminum body with a 303 stainless steel joint, ensuring maximum mating durability and mechanical survival in field Signal Security environments.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
High-Power Industrial Reliability
Engineered to handle 320W continuous wave transmission with superior thermal stability and predictable performance in diverse environmental conditions.
Get a Quote / Custom RF Solutions
Contact our engineering team to request customized flange patterns, alternative connector types, or integrated waveguide assembly requirements.
