Description & Specification

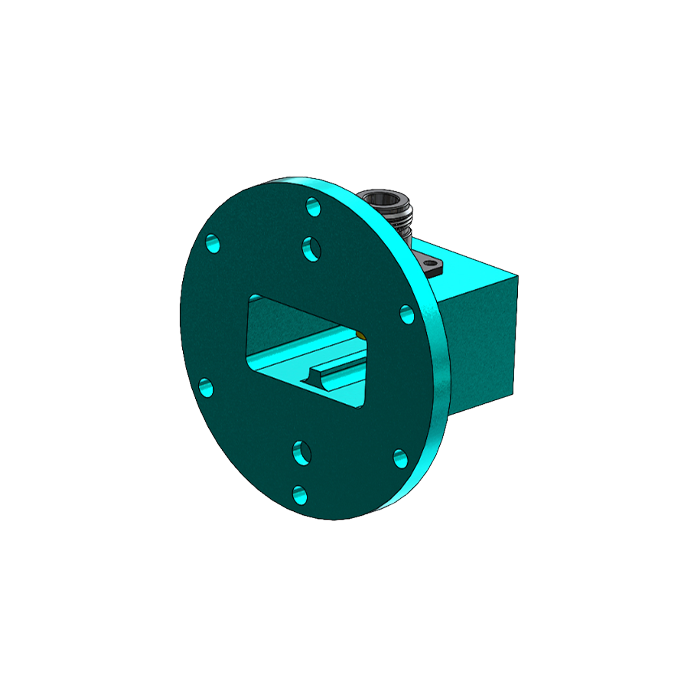

4.9 GHz to 7.05 GHz WR-159 Waveguide to Coaxial Adapter
Model: WC-159-UAR-NF | N-Female Connector | UAR Compatible Flange
The WC-159-UAR-NF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the 4.9 GHz to 7.05 GHz frequency range. Optimized for professional Signal Security operations and mission-critical laboratory testing, it ensures superior Signal Integrity with a low VSWR of 1.25. Featuring a ruggedized aluminum body and a high-durability 303 Stainless Steel N-Female connector, this adapter provides unwavering stability for advanced Signal Defense deployments and precision radar system measurements.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 4.90 - 7.05 GHz |
| Waveguide Standard | WR-159 / R58 / WG13 |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 280 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Material
| Dimensions (W x H) | 85.92 x 48.4 mm |
| Waveguide Flange | UAR Compatible |
| Body Material | High-Grade Machined Aluminum |
| Connector Type | N-Female (Stainless Steel 303) |
| Net Weight | 250 g |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
280W Power Reliability
Engineered with precision thermal management to handle robust continuous power loads, ideal for high-intensity laboratory testing and professional signal management.
Precision Signal Integrity
Optimized internal transition geometry ensures a maximum VSWR of 1.25, delivering minimal signal reflection and accurate data collection across the entire frequency band.
Tactical Signal Security
Designed to support Signal Defense infrastructure, providing a reliable link for interference mitigation and professional surveillance monitoring sub-systems.
Ruggedized SUS 303 Interface
Equipped with a high-durability stainless steel 303 N-Female connector to ensure repeatable mechanical coupling and superior electrical stability in demanding field environments.
Request a Professional Quote
Contact our engineering team to obtain individual VSWR plots, customized flange requirements, or integrated RF sub-assembly solutions.
