Description & Specification

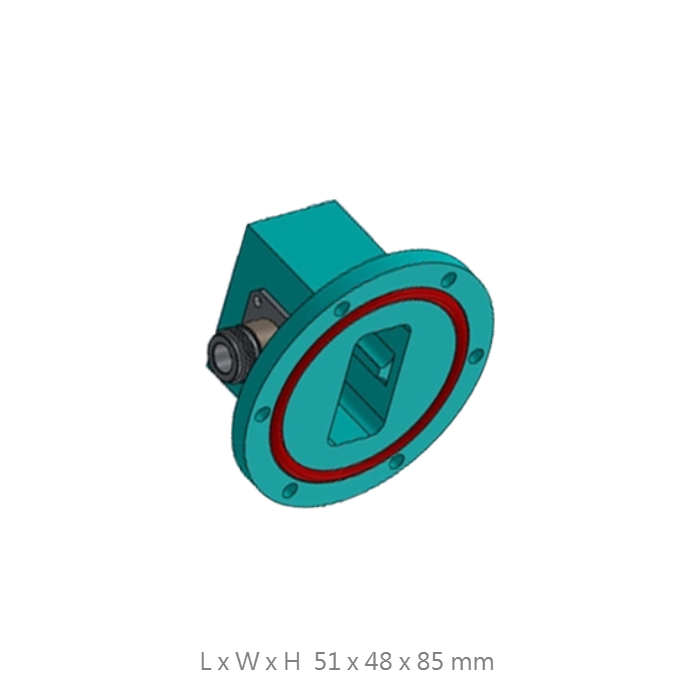

WC-159-PAR-NF Waveguide to Coaxial Adapter
C-Band | 4.9 - 7.05 GHz | Professional RF Transition
The WC-159-PAR-NF is a professional-grade Waveguide to Coaxial Adapter designed for precision signal transition within the 4.9 GHz to 7.05 GHz spectrum. Featuring a high-integrity N-Female interface and a standard PAR Flange, this adapter ensures minimal insertion loss and superior signal security. Its robust power handling and precise 1.3 V.S.W.R. make it the primary choice for integrating WR-159 standard gain horn antennas into advanced satellite communications, radar systems, and professional EMC test rigs.
Electrical & RF Performance
| Frequency Range | 4.9 - 7.05 GHz |
| Waveguide Standard | WR-159 |
| V.S.W.R (Max) | 1.3 : 1 |
| Connector Type | N-Female |
Mechanical & Physical
| Dimensions | 51 x 48 x 85 mm |
| Weight | 224 g |
| Flange Type | PAR |
Ultra-Compact Footprint
Measuring only 85mm in length, this adapter provides exceptional signal integrity in a small form factor, perfect for high-density RF system packaging.
Precision CNC Integrity
CNC-machined from premium materials to ensure consistent VSWR performance and mechanical durability across the entire 4.9-7.05 GHz band.
Mission-Critical Reliability
Robust construction designed for seamless integration in satellite ground stations, radar systems, and professional electromagnetic compatibility (EMC) test rigs.
Contact FT-RF Engineering Division
Contact our engineering team for customized flange configurations or high-power version requirements.
