WR510 1.45 to 2.2 GHz 10 dbi Waveguide Horn Input, UDR Flange

Model No: WI-510-UDR-10

Made in Taiwan
Frequency Range: 1.45 to 2.2 GHz
Waveguide size / Flange: EIA WR-510 / Standard UDR
Nominal Gain / Pattern: 10 dBi Calibrated / 58°×56° Beam
Max CW Power / Weight: 1000 Watts / 1.85 kg Core Build
Lead Time: 📩 info-tw@ft168.com.tw
Stock: 0
2026/06/18
Quantity:
INQUIRY

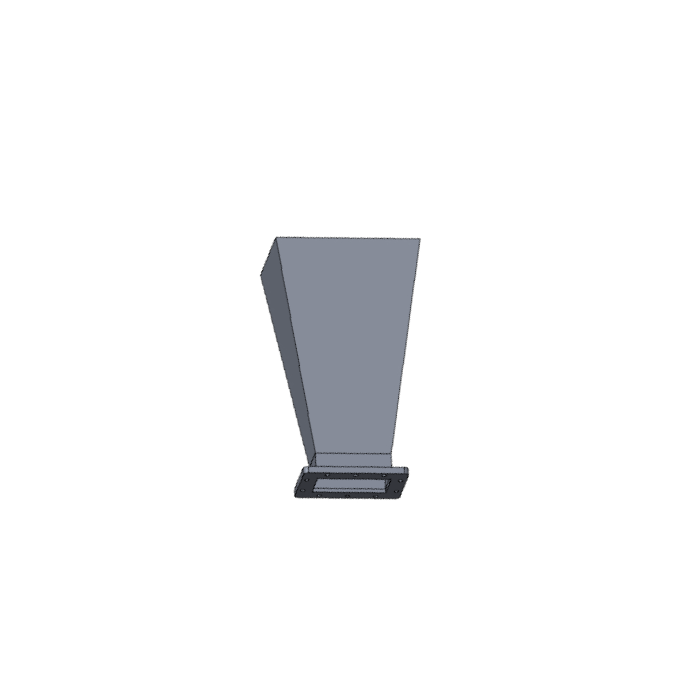

1.45 GHz to 2.2 GHz WR-510 Standard Gain Waveguide Horn Antenna

10 dBi Precision Calibration | Direct Waveguide Input | Model: WI-510-UDR-10
The WI-510-UDR-10 is a high-performance WR-510 Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for precision electromagnetic measurements and high-power operational profiles within the continuous 1.45 GHz to 2.2 GHz spectrum. Expertly optimized to cover critical frequency classes for mobile communications (GSM/LTE), telemetry links, and low-frequency L/S-Band radar arrays, this instrument delivers a highly predictable and consistent nominal gain profile of 10 dBi. Featuring a Direct Waveguide Input design equipped with a standardized UDR Style interface flange layout, it ensures flawless structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 1000 Watts (CW). Precision CNC machined from high-grade aerospace structural aluminum alloy in Taiwan, the calculated launching geometry produces exceptionally stable 58° horizontal and 56° vertical -3dB beamwidths with an impressively low return loss footprint. It stands as the definitive choice for automated anechoic antenna gain tracking matrices, comprehensive EMI/EMC immunity testing chambers, wide-area telemetry diagnostics, and mission-critical Signal Defense setups demanding uncompromised electrical parameters.



Electrical & RF Performance
Frequency Range Class 1.45 GHz to 2.2 GHz (L/S-Band Continuous Spectral Optimization)
Waveguide Standard Size EIA WR-510 / WG9A / R18 Layout Geometry Architecture
Nominal Gain (Typical) 10 dBi (Calibrated Reference Profile)
Maximum Power Handling 1000 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H/E Plane) 58° / 56° (Symmetric Beam Optimization)
Nominal System Impedance 50 Ohms
Mechanical & Material Specs

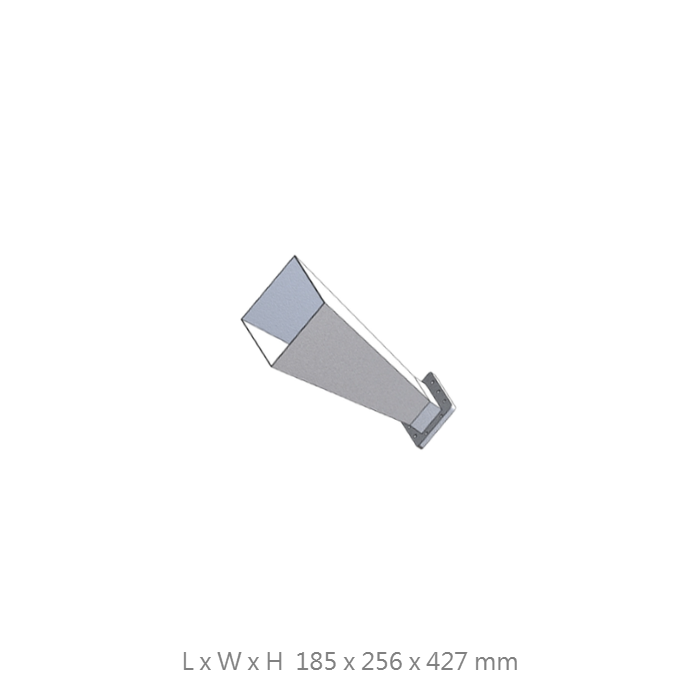

Physical Dimensions (W x H x L) 185 x 256 x 427 mm
Net Weight Profile 1850 g / 1.85 kg (Precision Rigid Balanced Design)

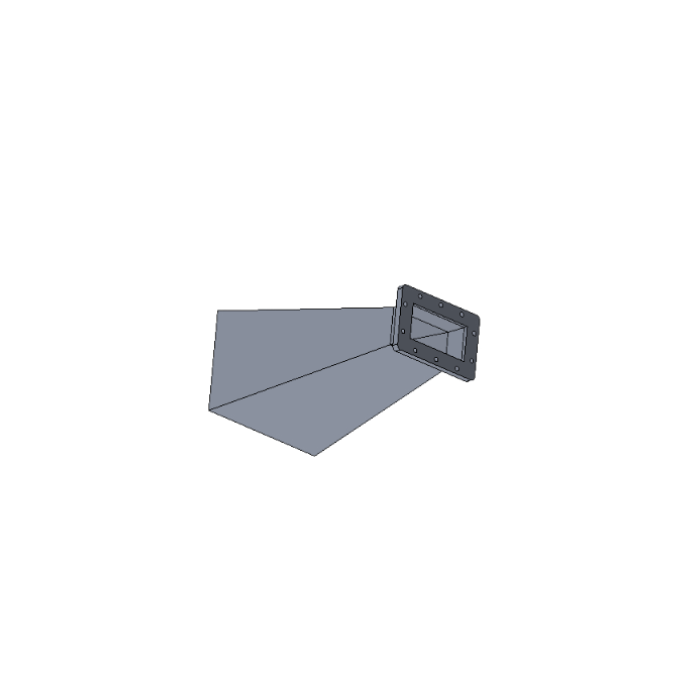

Waveguide Interface Flange Standardized UDR Style Waveguide Flange Layout Interface
Structural Body Material High-Grade Aerospace Structural Aluminum Alloy Core
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



1000W Power Handling

Robust aluminum construction supports intensive high-power continuous wave transmission, ideal for long-range radar simulation and high-field laboratory immunity testing.

Superior Signal Integrity

Meticulously calculated internal WR-510 launch geometry ensures minimal return loss metrics and flat, reproducible gain coefficients across the full band.

L/S-Band Spectrum Security

Fine-tuned for mobile cellular networks and tactical telemetry links, supporting advanced broad-spectrum monitoring, signal management, and interference mitigation.

Lightweight Aluminum Build

At only 1.85 kg, this compact horn balancing extreme mechanical rigidity with an easy-to-handle form factor, ideal for automated positioning masts or field tactical deployment masts.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified calibration datasets, mechanical drawings, or custom waveguide flange configurations.
