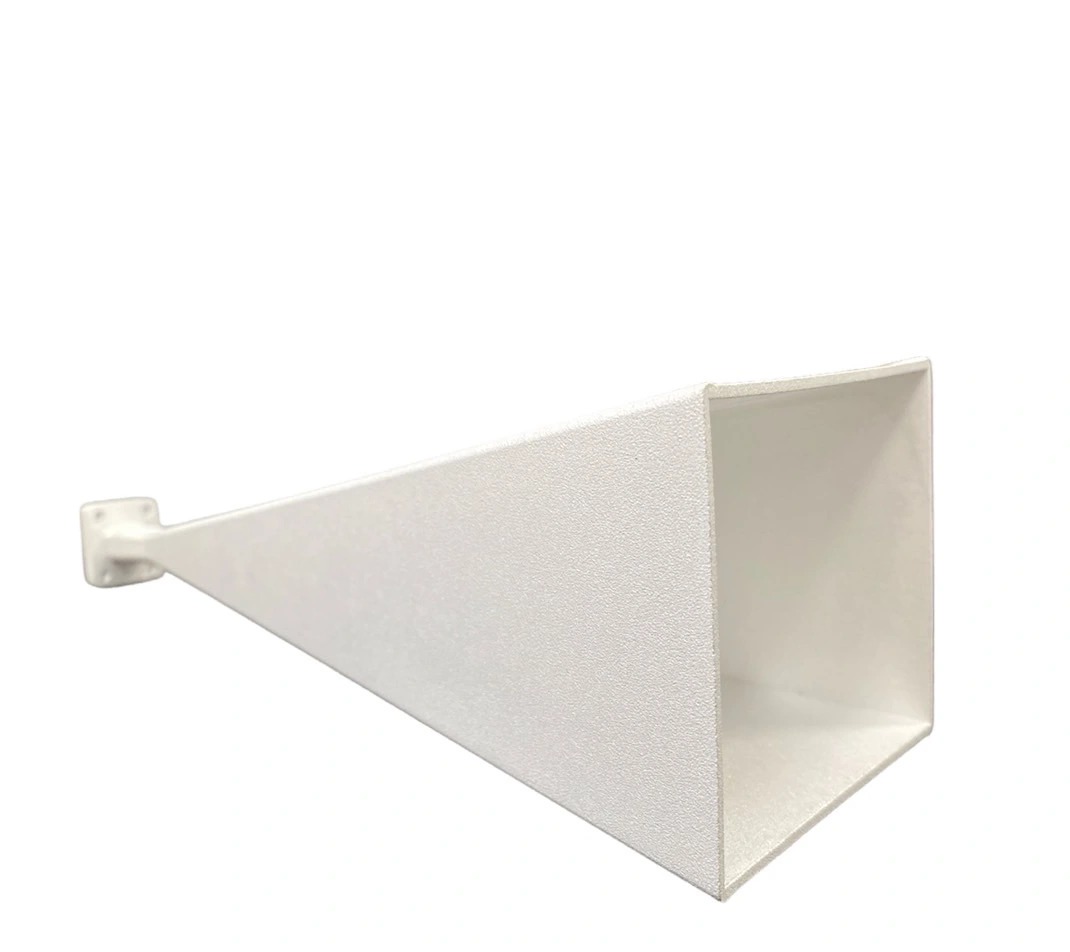

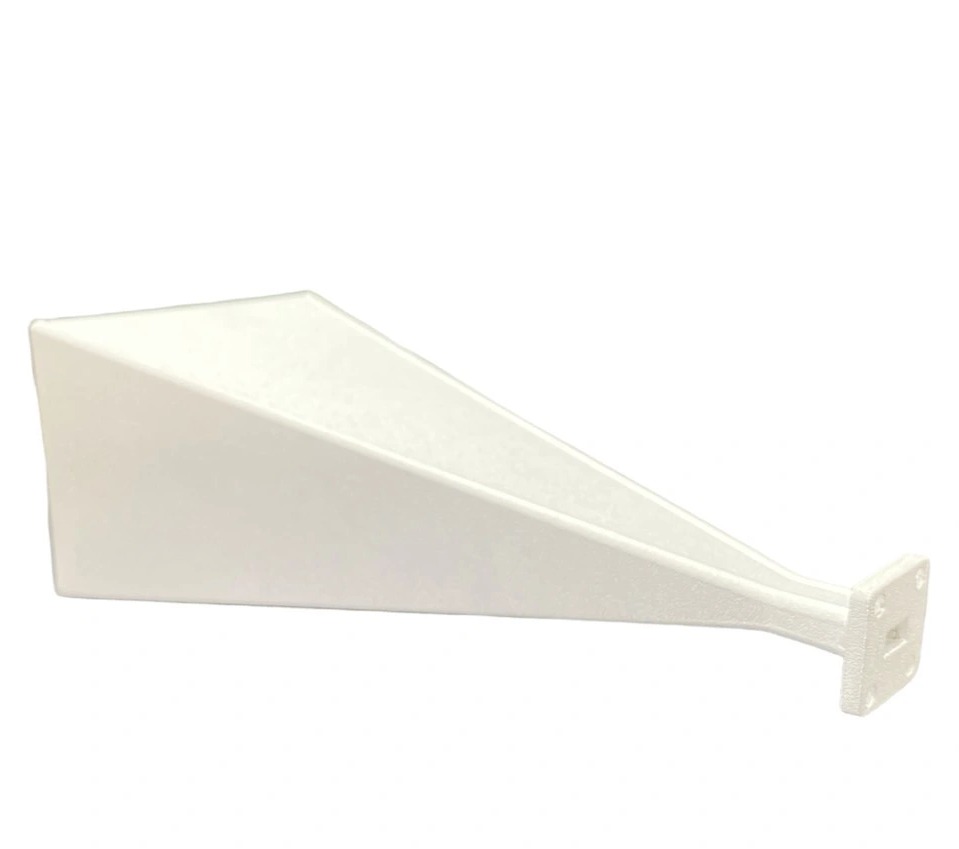

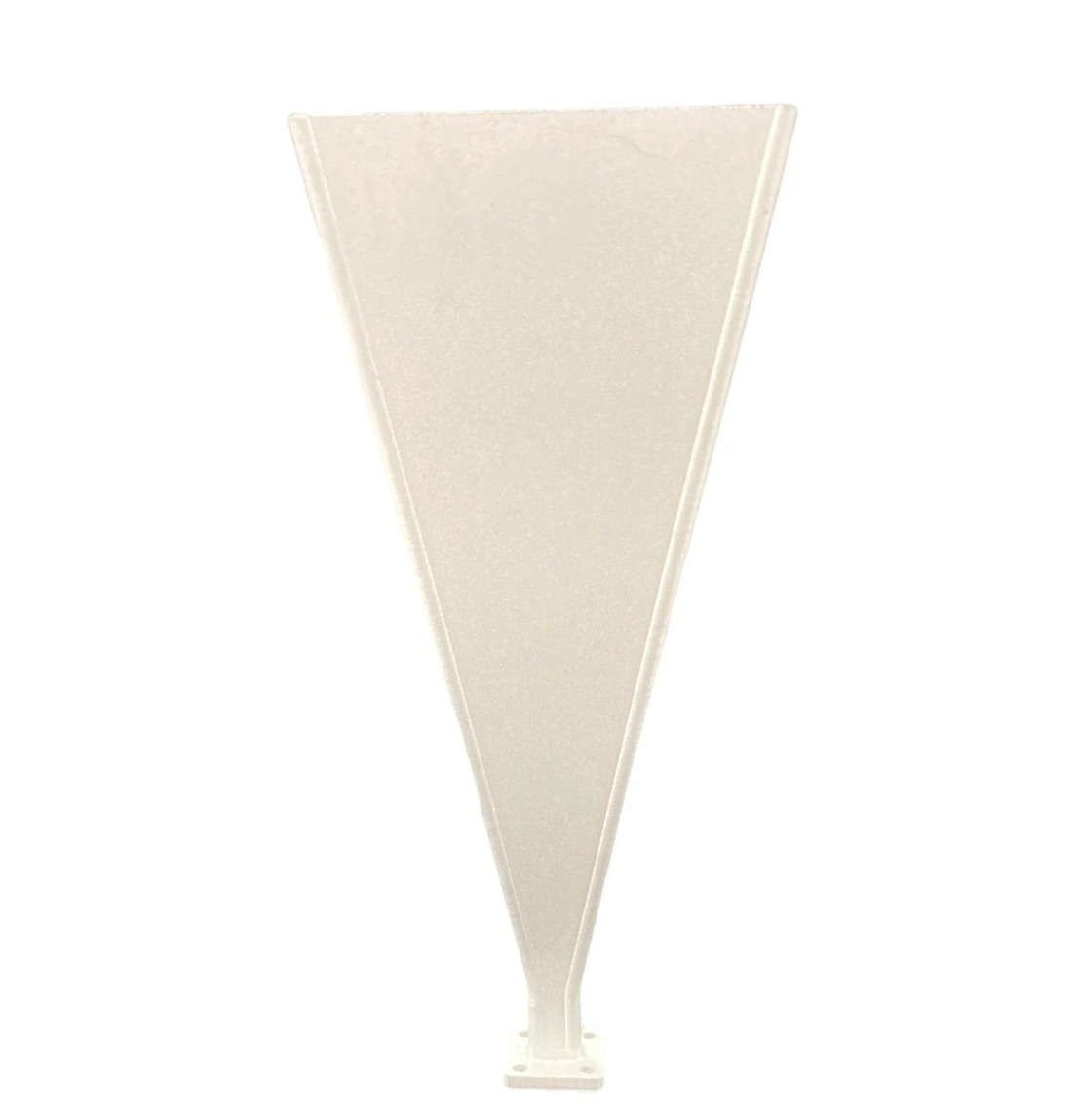

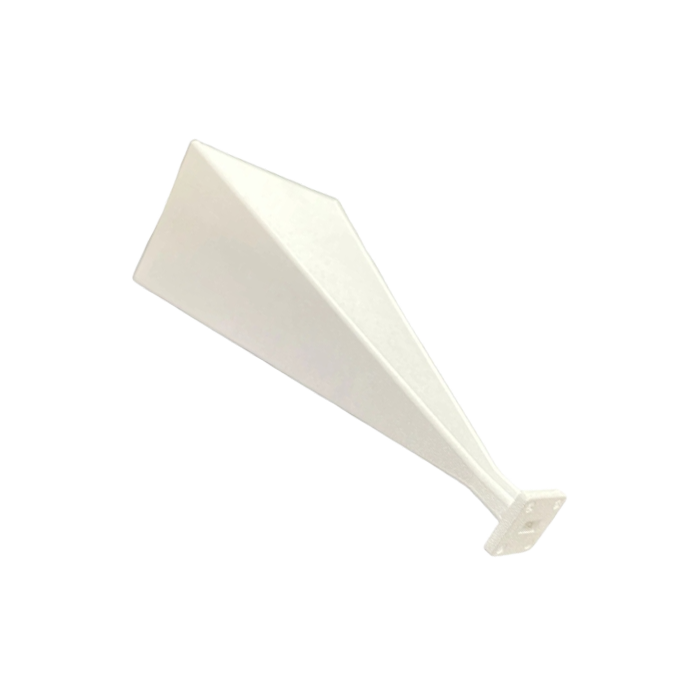

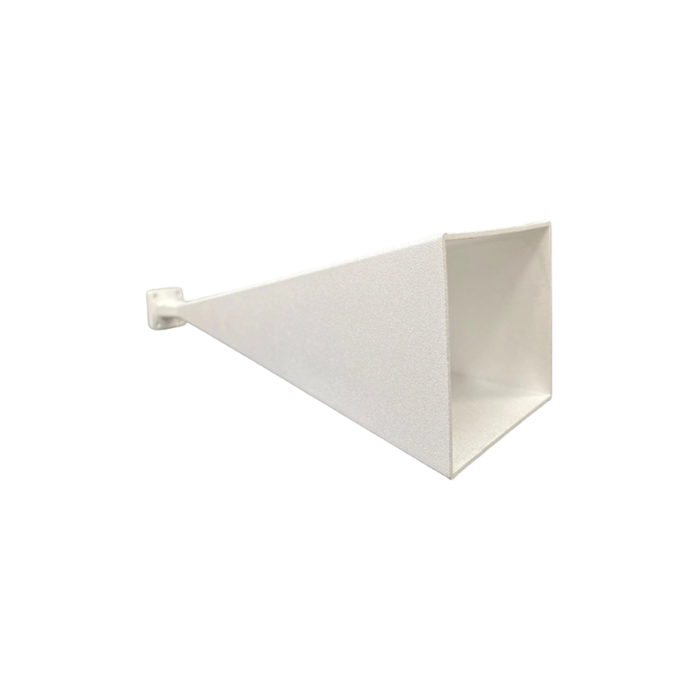

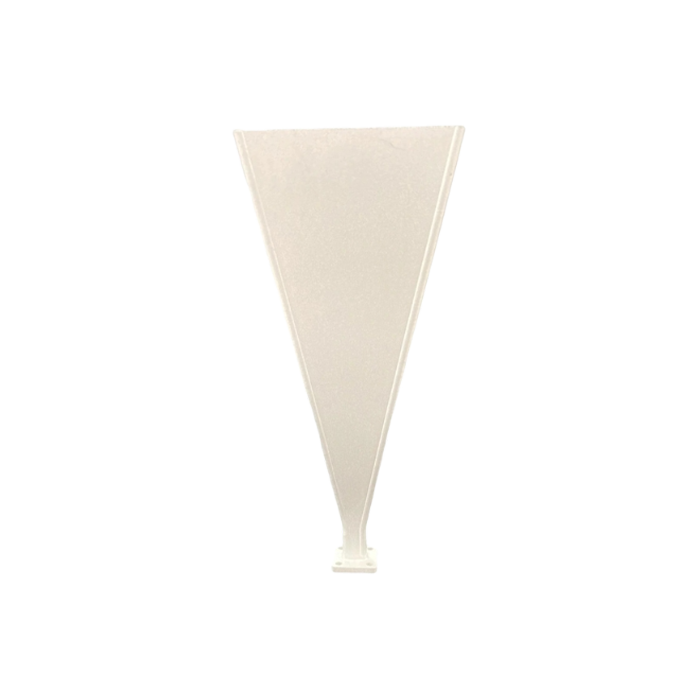

WR28 Waveguide Horn Antenna, 26.5 GHz to 40 GHz, 25dBi, UBR Flange

Model No: WI-28-UBR-25

Made in Taiwan
Frequency Range: 26.5 to 40.0 GHz
Standard Gain: 25 dBi
Waveguide Type: WR-28 (Ka-Band)
Max Power (W): 500 Watts
Stock: 20
2026/06/09
Quantity:
INQUIRY

26.5 GHz to 40.0 GHz WR-28 Ka-Band Standard Gain Horn Antenna

25 dBi High-Gain Precision | Direct Waveguide Input | Model: HS-028-UBR-25-NA
The HS-028-UBR-25-NA is a high-performance Ka-Band Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for the WR-28 waveguide standard. Operating across the expansive millimeter-wave spectrum of 26.5 GHz to 40.0 GHz, this premium antenna delivers a consistent and precision-calibrated nominal gain profile of 25 dBi with narrow-beam precision combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Featuring a Direct Waveguide Input with a standardized UG-599/U (UBR Style) flange layout, it ensures optimal structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural aluminum alloy in Taiwan, the specialized launch geometry creates highly focused 10° horizontal and 9° vertical radiation envelopes to maximize boresight resolution. It stands as the definitive choice for millimeter-wave EMI/EMC testing architectures, advanced 5G system parameters validation, high-bandwidth satellite communication networks, and mission-critical laboratory anechoic testing environments demanding uncompromised performance parameters.



Electrical & RF Performance
Frequency Range Class 26.5 GHz to 40.0 GHz (Continuous Ka-Band Spectral Optimization)
Waveguide Standard Size EIA WR-28 / R320 / WG22 Layout Geometry
Nominal Gain (Typical) 25 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 500 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H-Plane) 10° (Narrow Focused Horizon Focus)
-3dB Beamwidth (E-Plane) 9° (Narrow Focused Vertical Path)
Nominal System Impedance 50 Ohms
Mechanical & Environmental Data

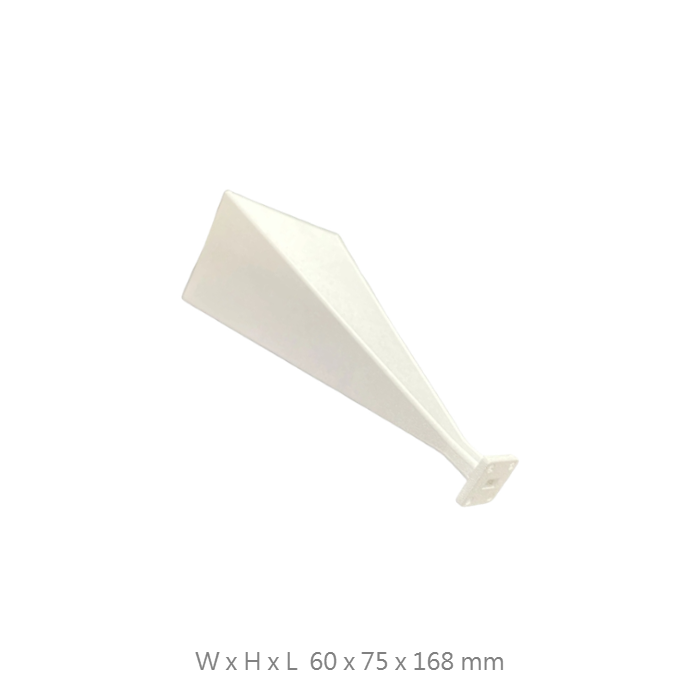

Physical Dimensions (W x H x L) 60 x 75 x 168 mm
Waveguide Connection Flange Standardized UG-599/U (UBR Style Flange Interface Layout)
Input Interface Launcher Direct Waveguide Input (No Adapter Loss)
Structural Body Material High-Grade Precision Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



Ka-Band Millimeter-Wave Precision

Optimized for the 26.5-40.0 GHz spectrum, delivering high-gain boresight accuracy and radiation pattern stability required for advanced 5G testing, satellite research, and professional Signal Defense verification.

Direct Waveguide Integration

Designed with a direct WR-28 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-frequency millimetric setups.

500W High-Power Stability

Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural and electrical integrity during high-intensity Signal Management operations.

Adaptive Deployment

Supports custom mounting designs, including PTZ control functions, waterproof builds, and specialized tripod adapters for mobile millimeter-wave monitoring infrastructures.
