WR-34 Waveguide Horn Antenna without Adapter, 22 GHz to 33 GHz 10dbi, UBR Flange

Model No: WI-34-UBR-10

Made in Taiwan
Frequency Range: 22.0 to 33.0 GHz
Standard Gain: 10 dBi
Waveguide Type: WR-34 (Ka-Band)
Max Power (W): 500 Watts
Stock: 8
2026/06/09
📐 VIEW DRAWING
Quantity:
INQUIRY

22.0 GHz to 33.0 GHz WR-34 Ka-Band Standard Gain Horn Antenna

10 dBi Precision Gain | Direct Waveguide Input | Model: HS-034-UBR-10-NA
The HS-034-UBR-10-NA is a high-performance Ka-Band Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for the WR-34 standard waveguide environments. Operating within the millimeter-wave spectrum across the continuous 22.0 GHz to 33.0 GHz frequency band, this premium antenna delivers a highly stable and precision-calibrated nominal gain profile of 10 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Featuring a Direct Waveguide Input equipped with a standardized UG-1530/U (UBR Style) flange layout interface, it ensures optimal structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural aluminum alloy in Taiwan, the calculated internal horn geometry produces highly clean and symmetric 54° radiation envelopes across both horizontal and vertical planes. It stands as the definitive choice for millimeter-wave EMI/EMC testing architectures, advanced 5G system parameters validation, high-bandwidth satellite communication development, and mission-critical laboratory antenna characterization environments demanding uncompromised performance parameters.



Electrical & RF Performance
Frequency Range Class 22.0 GHz to 33.0 GHz (Continuous Ka-Band Spectral Optimization)
Waveguide Standard Size EIA WR-34 / R260 / WG21 Layout Geometry
Nominal Gain (Typical) 10 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 500 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H/E Plane) 54° / 54° (Symmetric Pattern Optimization)
Nominal System Impedance 50 Ohms
Mechanical & Environmental Data

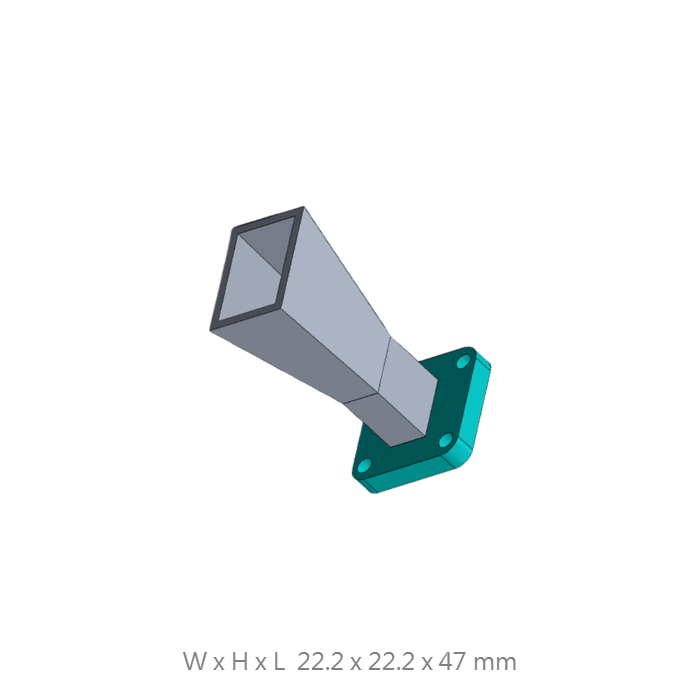

Physical Dimensions (W x H x L) 22.2 x 22.2 x 47 mm
Waveguide Connection Flange Standardized UG-1530/U (UBR Style Flange Interface Layout)
Input Interface Launcher Direct Waveguide Input (No Coaxial Adapter Loss)
Structural Body Material High-Grade Precision Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



Ka-Band Millimeter-Wave Precision

Optimized for the Ka-Band spectrum, delivering the boresight accuracy and symmetric radiation pattern required for advanced 5G testing, satellite research, and professional Signal Defense verification.

Direct Waveguide Integration

Designed with a direct WR-34 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision millimetric setups.

500W High-Power Stability

Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural and electrical integrity during high-intensity laboratory testing.

Adaptive Deployment

Supports custom mounting designs, including PTZ control functions, waterproof builds, and specialized tripod adapters for professional millimeter-wave monitoring sub-systems.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized waterproof builds, or custom mechanical mounting solutions.
