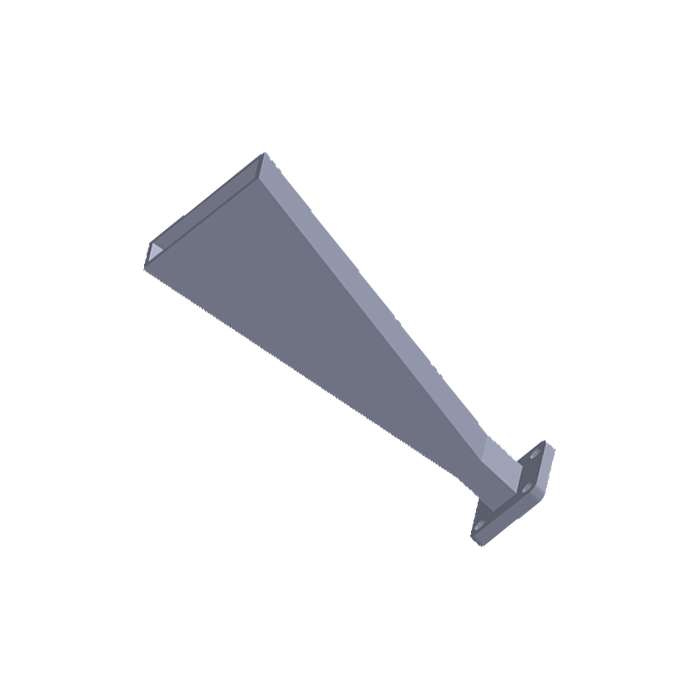

26.5 GHz to 40.0 GHz WR-28 Ka-Band E-Plane Sectoral Horn Antenna
Fan-Beam Radiation Pattern | Direct Waveguide Input | Model: HS-028-UBR-15-NA
The HS-028-UBR-15-NA is a precision-engineered Ka-Band E-Plane Sectoral Horn Antenna professionally designed and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for specialized wide-horizontal illumination fields. Operating within the millimeter-wave spectrum across the continuous 26.5 GHz to 40.0 GHz frequency band, this premium antenna is expertly flared in the E-plane to deliver a distinct, highly predictable Fan-Beam radiation pattern profile (77° H-plane x 16° E-plane) combined with a calibrated nominal gain of 15 dBi. Featuring a Direct Waveguide Input interface with a standardized UG-599/U (UBR Style) flange mating face, it ensures flawless structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural alloy in Taiwan, it exhibits exceptional electromechanical longevity and excellent pattern isolation metrics. It stands as the definitive choice for wide-vertical beam scanning grids, automated antenna characterization ranges, industrial EMI/EMC compliance validation scanning, professional 5G mmWave research, and mission-critical satellite link verification setups demanding uncompromised performance parameters.
Electrical & RF Performance
| Frequency Range Class | 26.5 GHz to 40.0 GHz (Continuous Ka-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-28 / R320 / WG22 Layout Geometry |
| Nominal Gain (Typical) | 15 dBi |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 500 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H-Plane) | 77° (Expansive Sector Fan-Beam Optimization) |
| -3dB Beamwidth (E-Plane) | 16° (Narrow Focused Elevation Envelope) |
| Nominal System Impedance | 50 Ohms |
Mechanical & Environmental Data

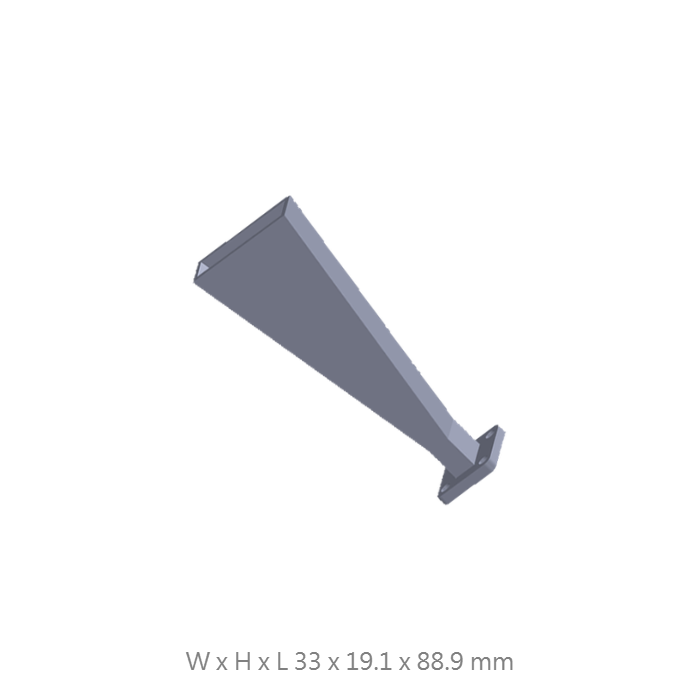

| Physical Dimensions (W x H x L) | 33 x 19.1 x 88.9 mm |
| Waveguide Connection Flange | Standardized UG-599/U (UBR Style Flange Interface Layout) |
| Input Interface Launcher | Direct Waveguide Input (No Adapter Power Loss) |
| Structural Body Material | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Expansive H-Plane Coverage
Specialized sectoral flare yields a massive 77° beamwidth in the horizontal plane, ideal for broad-area illumination in EMC susceptibility testing and multi-point Signal Defense surveillance.
Direct Millimeter-Wave Integration
Designed with a direct WR-28 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-frequency millimetric setups.
500W Continuous Stability
Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during high-intensity Signal Management testing.
Precision Pattern Stability
Optimized for the 26.5-40.0 GHz band, ensuring gain flatness and pattern stability required for professional 5G research, satellite link characterization, and localized monitoring.
