Description & Specification

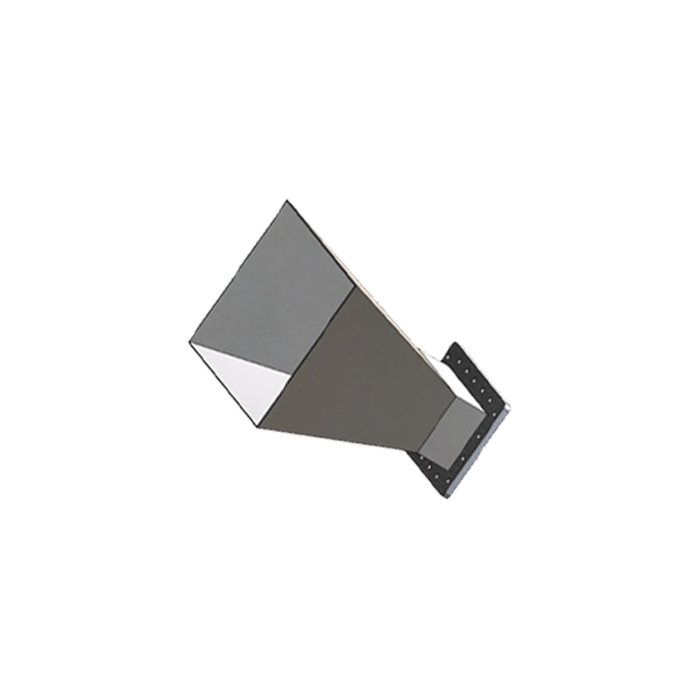

750 MHz to 1150 MHz WR-975 Standard Gain Waveguide Horn Antenna
Model: WI-975-UDR-10 | 10 dBi Gain | 3000W High Power Capacity
The WI-975-UDR-10 is a high-power Waveguide Horn Antenna professionally engineered for precision measurement and high-intensity RF operations within the 750 MHz to 1150 MHz spectrum. Precision-manufactured from high-grade aluminum and featuring a standard UDR Waveguide Flange, it manages extreme thermal power loads up to 3000 Watts. This large-scale antenna ensures exceptional Signal Integrity and stable directional gain, making it an essential radiator for EMI/EMC Testing, antenna calibration, and advanced Signal Defense infrastructure.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-975 / WG4 / R9 |
| Frequency Range | 750 to 1150 MHz |
| Nominal Gain | 10 dBi |
| Maximum Power Handling | 3000 Watts (CW) |
| -3dB Beamwidth (H / E Plane) | 54° / 54° |
| Impedance | 50 Ohm |
Mechanical & Physical Specs

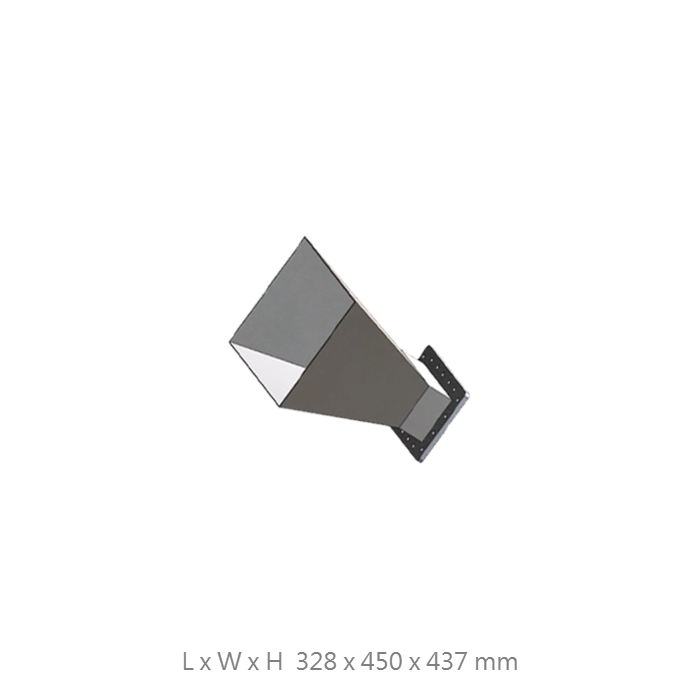

| Dimensions (L x W x H) | 328 x 450 x 437 mm |
| Net Weight | 5200 g (5.2 kg) |
| Waveguide Flange | UDR Style Flange |
| Material | High-Grade Aerospace Aluminum |
| Design & Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
3000W High-Power Domination
Engineered to handle massive continuous power loads, providing a robust radiator for high-intensity laboratory testing and signal dominance operations.
Broad UHF/L-Band Coverage
Optimized for the 750-1150 MHz spectrum, supporting advanced signal management and interference mitigation in professional RF networks.
Superior Signal Integrity
The large-scale precision aluminum construction ensures low return loss and consistent gain profile across the entire operating band.
Standardized UDR Interface
Equipped with a standard UDR waveguide flange for secure mechanical coupling and minimal signal leakage in mission-critical systems.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, mechanical drawings, or customized waveguide flange requirements.
