Description & Specification

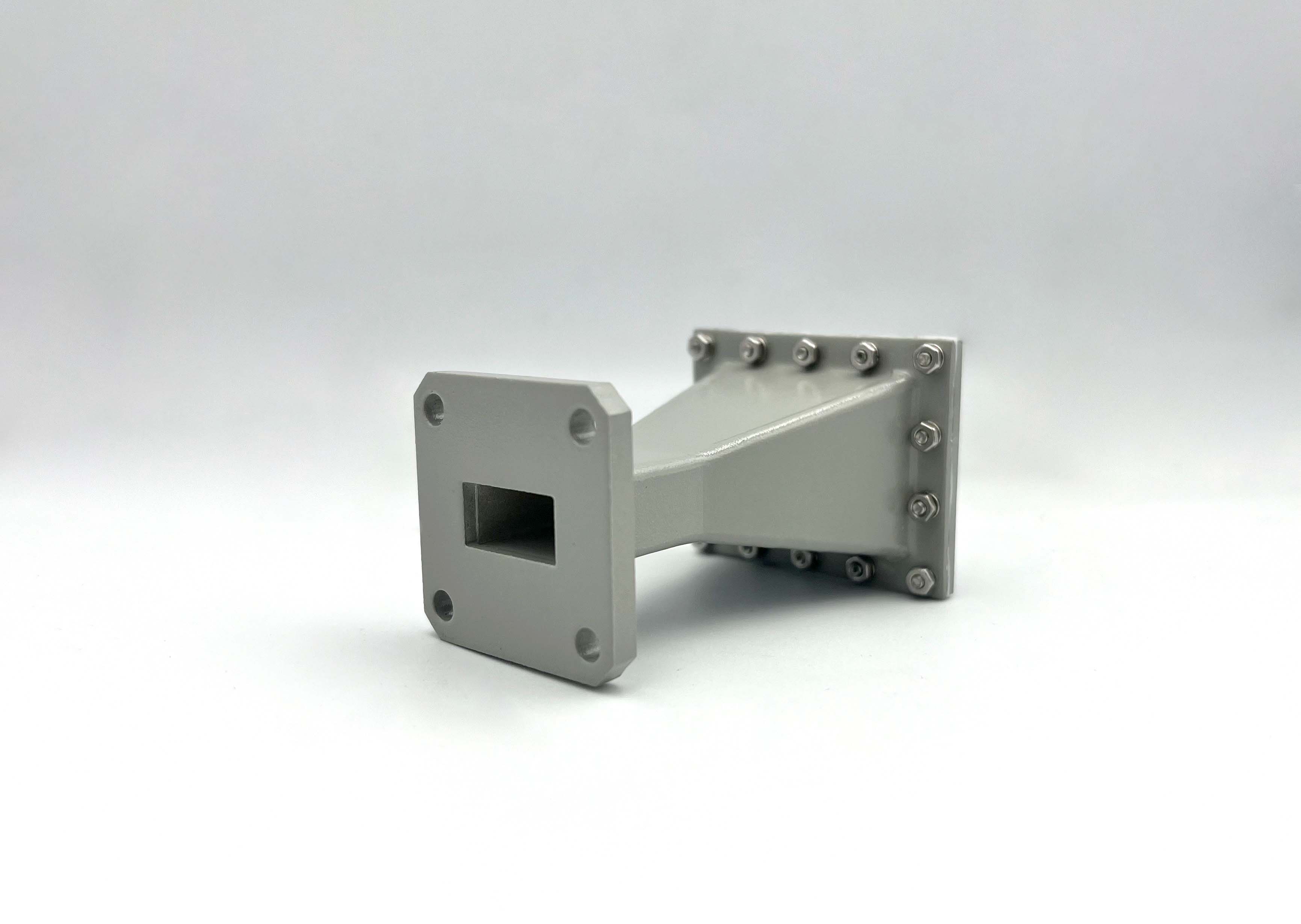

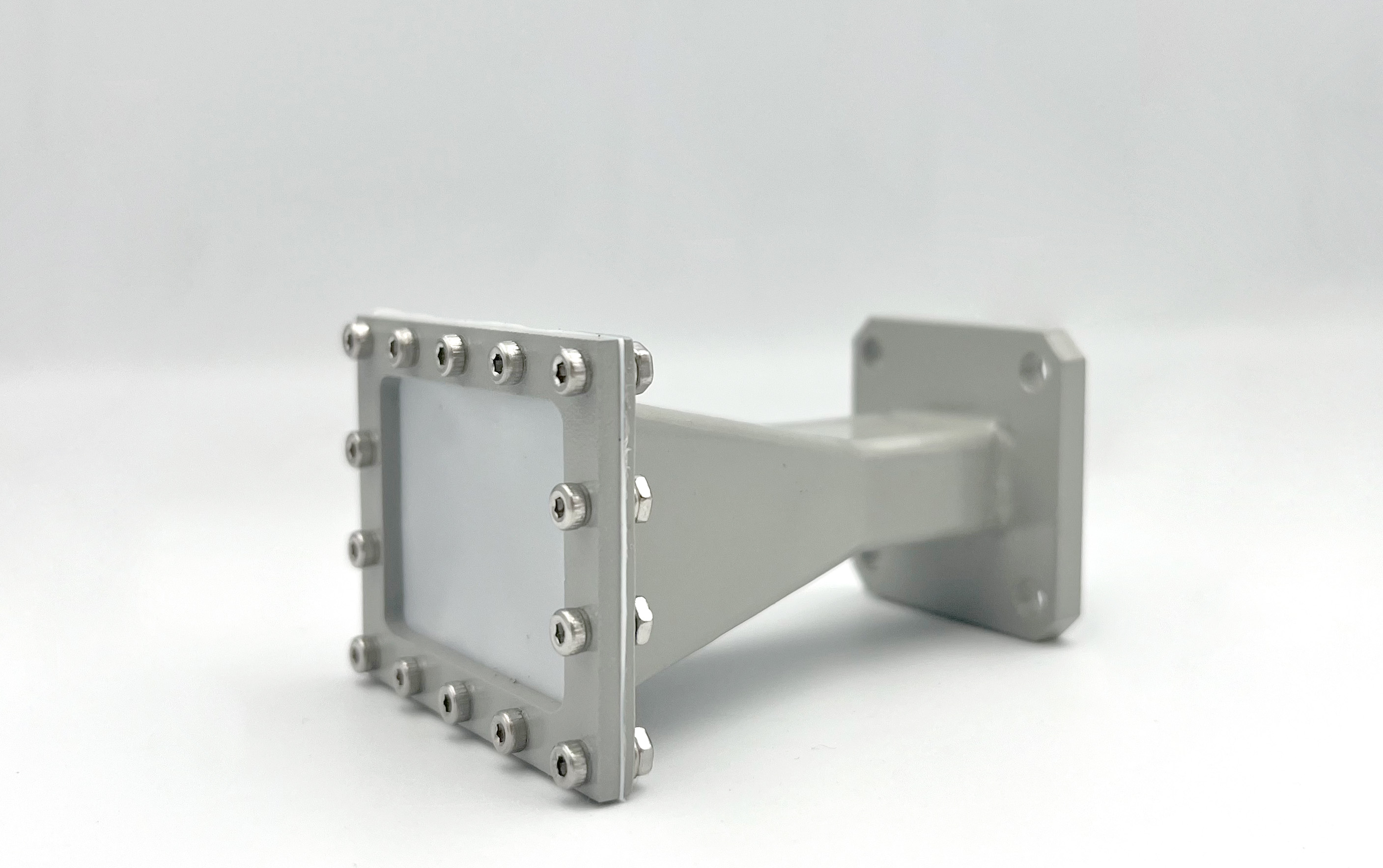

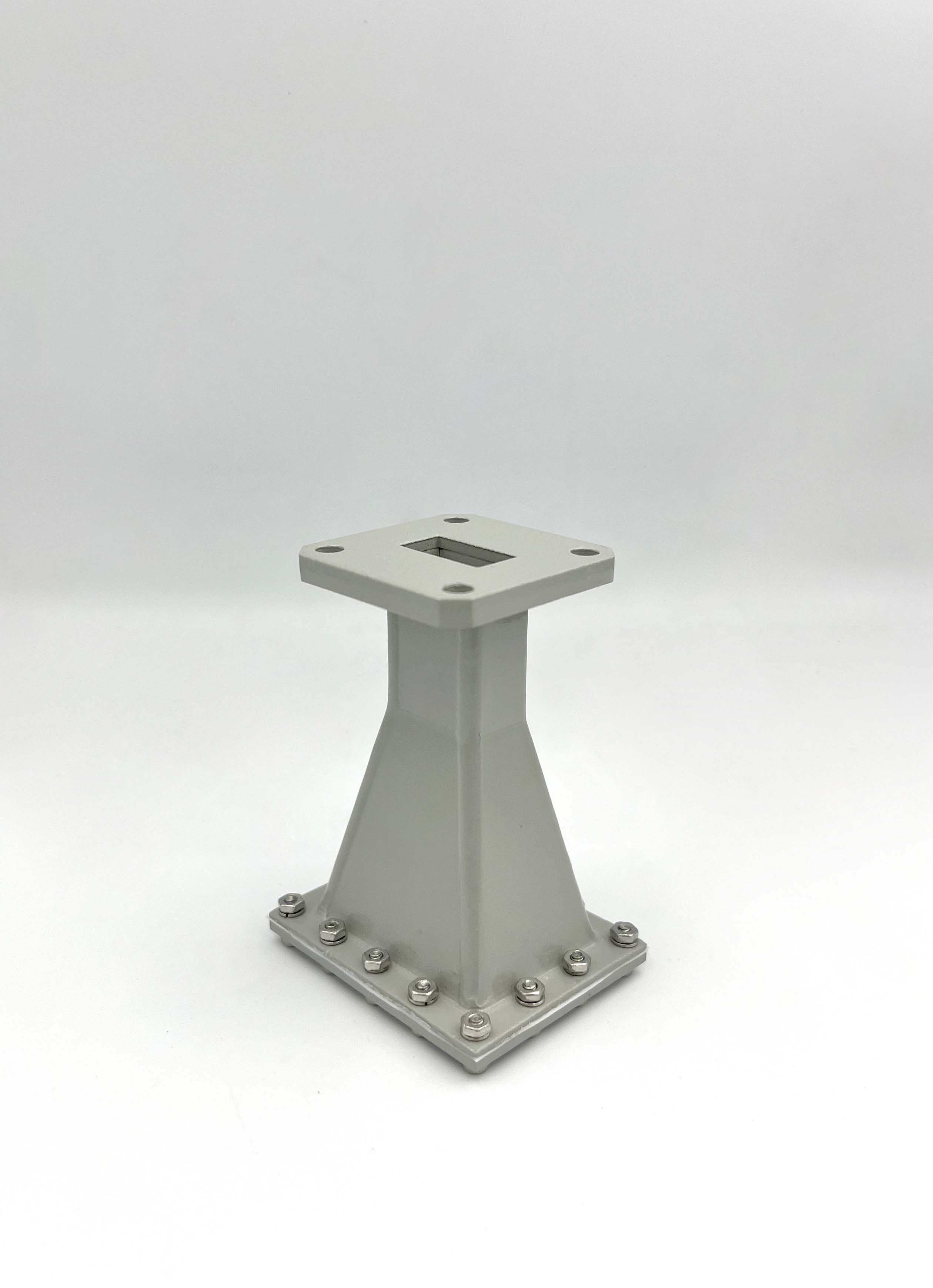

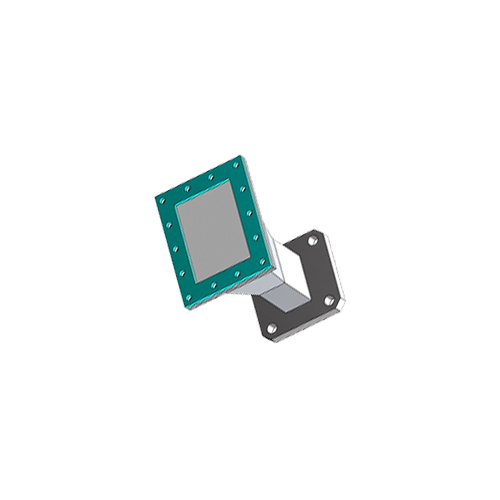

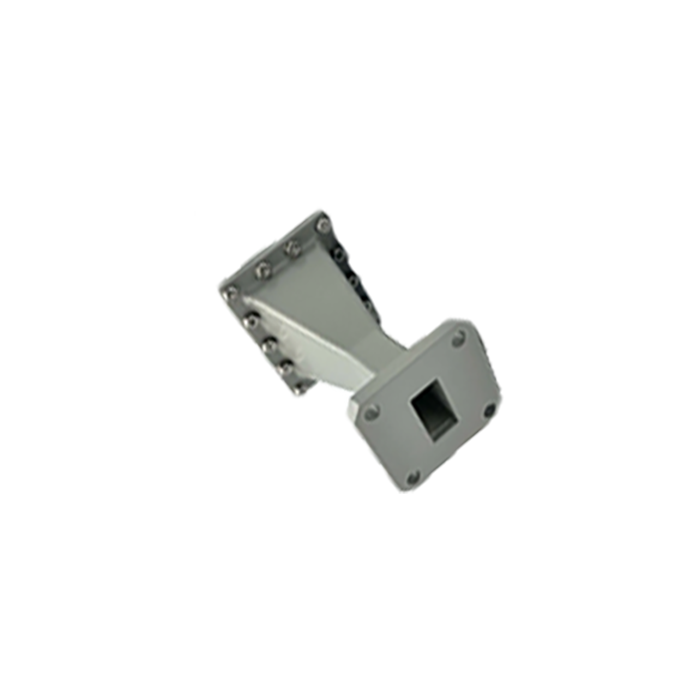

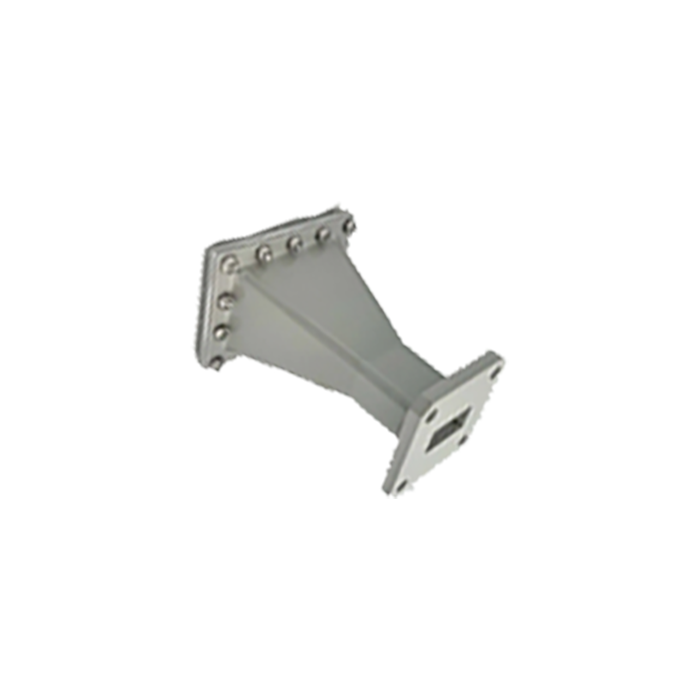

12.4 GHz to 18 GHz WR-62 Wide Beam Standard Gain Horn Antenna
Model: WI-62-UBR-10-R | 10 dBi Gain | Wide 54° Coverage
The WI-62-UBR-10-R is a high-precision WR-62 Waveguide Horn Antenna professionally engineered for Ku-Band microwave applications within the 12.4 GHz to 18 GHz spectrum. Optimized for professional Signal Security operations and high-fidelity laboratory testing, it delivers a consistent 10 dBi gain with an expansive 54° beamwidth for broader area coverage. Featuring a ruggedized aluminum body and a precision UBR UG-2664/U flange, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments and radar system measurements.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 12.4 - 18 GHz (Ku-Band) |
| Waveguide Standard | WR-62 / R140 / WG18 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H/E Plane) | 54° / 54° (Wide Beamwidth) |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

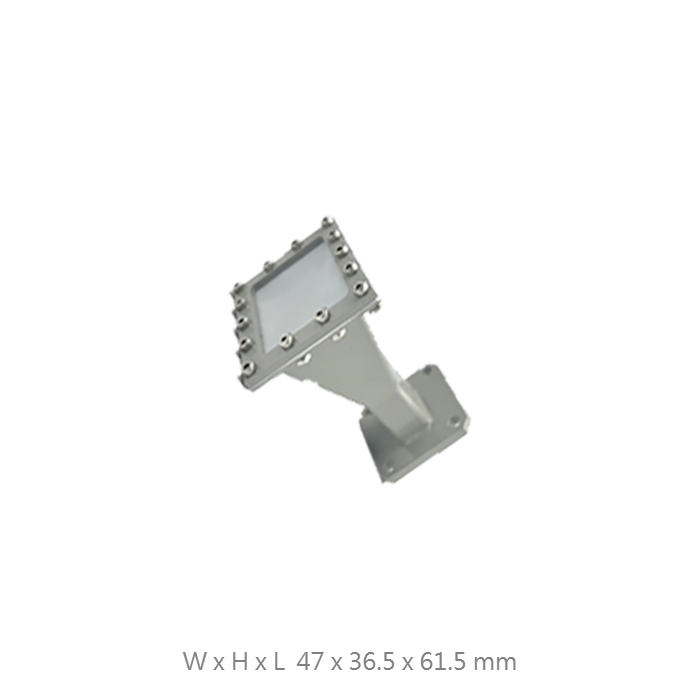

| Dimensions (W x H x L) | 47 x 36.5 x 61.5 mm |
| Net Weight | 45 g |
| Waveguide Flange | UBR UG-2664/U Compatible |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
Wide Area Beam Domination
The specialized 54-degree beamwidth provides expansive vertical and horizontal coverage, essential for broad-sector monitoring and professional signal management.
500W High-Power Capacity
Engineered to handle massive continuous power loads, providing a robust radiator for intensive Signal Security operations and high-power radar simulation.
Precision Signal Integrity
Optimized internal flare geometry ensures minimal signal reflection and stable radiation patterns across the entire Ku-Band operating spectrum.
Industrial Aluminum Build
Fully machined from high-quality aluminum alloy to ensure superior heat dissipation and maximum structural rigidity in demanding laboratory or field environments.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, radiation patterns, or customized waveguide flange requirements.
