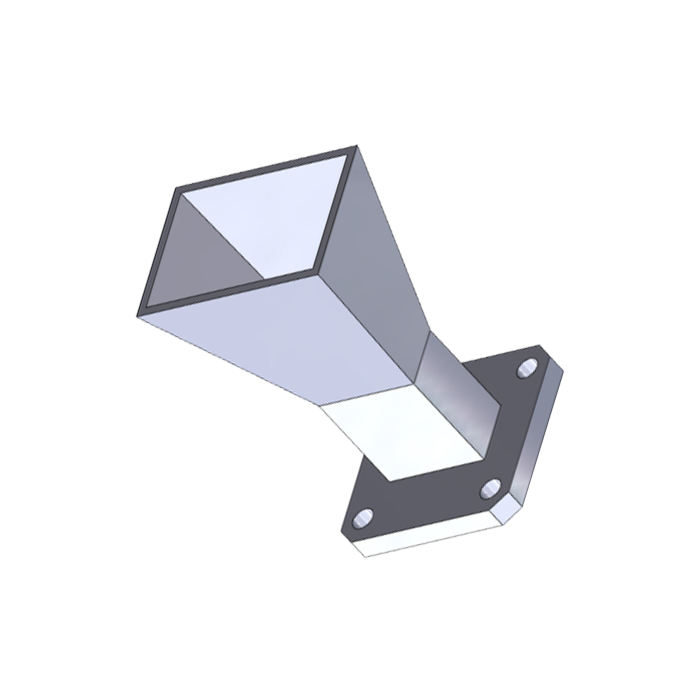

WI-62-UBR-10 Standard Gain Horn Antenna
12.4 GHz to 18 GHz | 10 dBi Gain | WR-62 Waveguide
The WI-62-UBR-10 is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Optimized for the Ku-band spectrum (12.4 - 18 GHz), it delivers a consistent directional gain of 10 dBi. Precision-manufactured in Taiwan using high-grade Aluminum, this antenna features a WR-62 waveguide interface and a UBR UG-2664/U flange. Its ultra-compact and lightweight design makes it an ideal reference antenna for laboratory microwave measurements and radar system calibrations.
Technical Specifications
Electrical Specifications
[Image of WR-62 standard gain waveguide horn antenna radiation pattern]| Frequency Range | 12.4 GHz - 18 GHz |
| Gain | 10 dBi |
| V.S.W.R | 1.3 : 1 |
| -3dB Beam-width (H-plane) | 54° |
| -3dB Beam-width (E-plane) | 54° |
| Maximum Power Handling | 500 W |
Mechanical Specifications

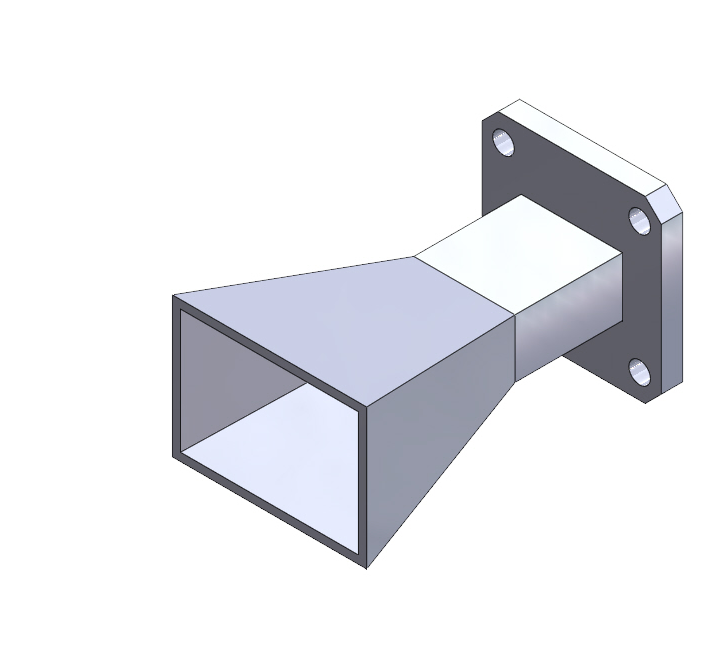

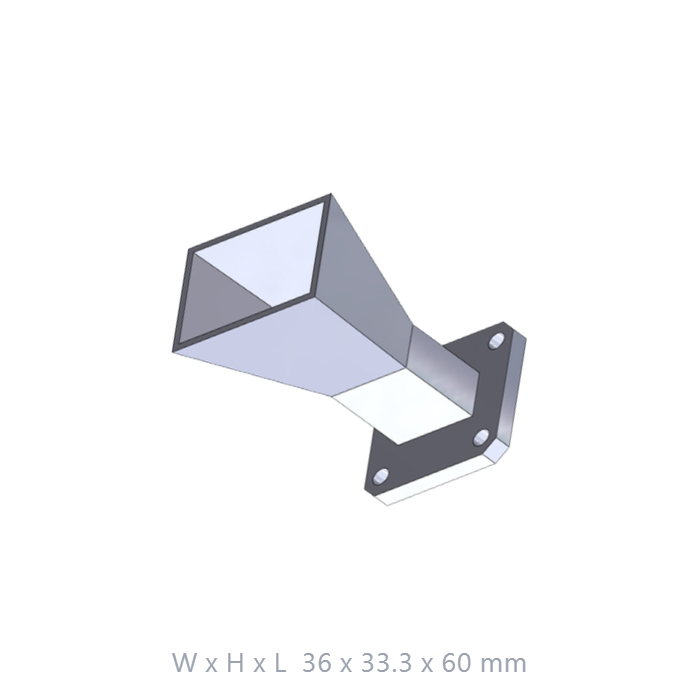

| Dimensions (L x W x H) | 60 x 36 x 33.3 mm |
| Weight | 28 g |
| Waveguide Size | WR-62 |
| Waveguide Flange | UBR UG-2664/U |
| Body Material | High-Grade Aluminum |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
Ku-Band Precision
Seamlessly covers the 12.4 - 18 GHz range, providing high accuracy for satellite and radar testing.
Seamlessly covers the 12.4 - 18 GHz range, providing high accuracy for satellite and radar testing.
Ultra-Lightweight Design
Weighing only 28 g, this antenna offers maximum portability and ease of mounting in laboratory setups.
Weighing only 28 g, this antenna offers maximum portability and ease of mounting in laboratory setups.
High Power Capability
Safely handles up to 500W of power, suitable for high-intensity signal transmission and calibration.
Safely handles up to 500W of power, suitable for high-intensity signal transmission and calibration.
Standard Flange Interface
Equipped with a UBR UG-2664/U flange for seamless integration with professional RF test equipment.
Equipped with a UBR UG-2664/U flange for seamless integration with professional RF test equipment.
Stable Directional Gain
Delivers a uniform 10 dBi gain profile, essential for use as a reference antenna in gain measurement setups.
Delivers a uniform 10 dBi gain profile, essential for use as a reference antenna in gain measurement setups.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet the highest international RF testing standards.
Precision designed and manufactured in Taiwan to meet the highest international RF testing standards.
