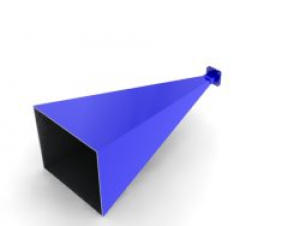

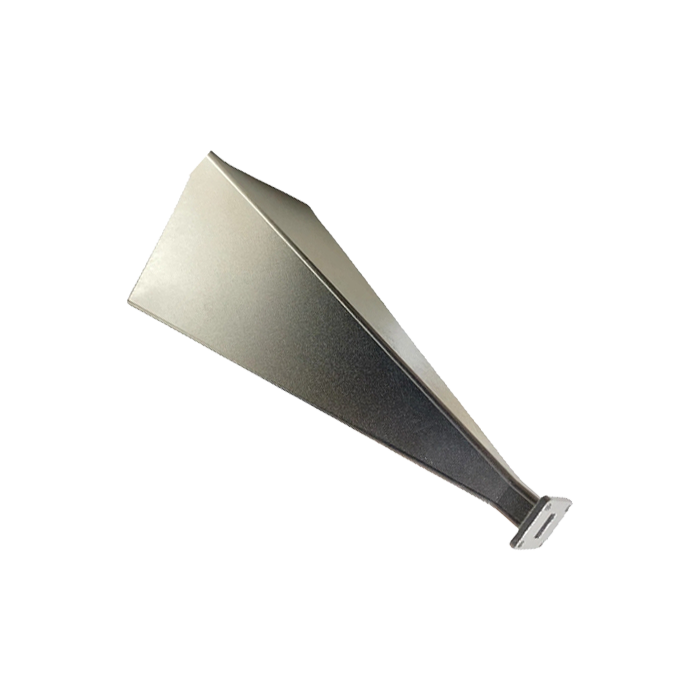

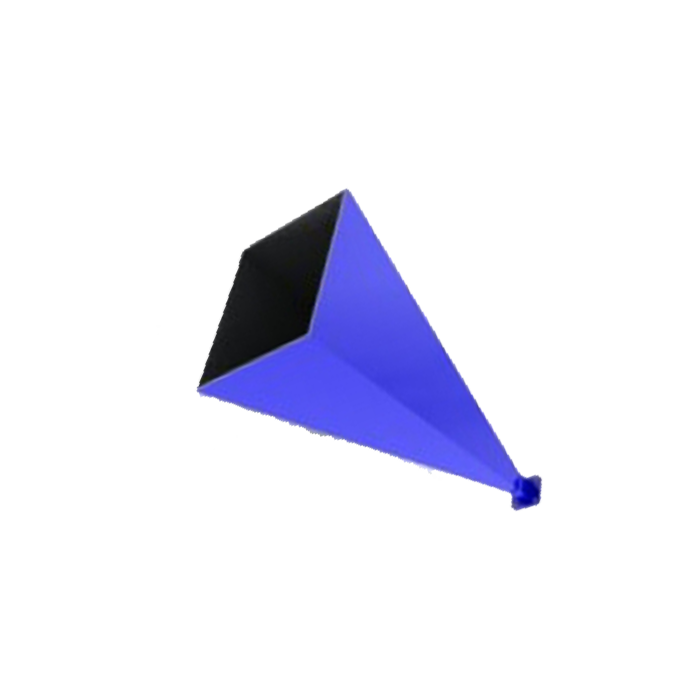

Standard Gain Waveguide Horn Antenna
12 GHz to 18 GHz | WR62 / WG18 | Directional Radiation
This high-precision Waveguide Horn Antenna is professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for Ku-band RF measurement applications. Operating within the 12 GHz to 18 GHz frequency range, it features a low average V.S.W.R of 1.3:1 and precise directional radiation patterns. Constructed from high-grade Aluminum in Taiwan, it utilizes a WR62 waveguide input with a UBR UG-2664/U flange, ensuring exceptional structural integrity and RF accuracy for indoor testing and calibration environments.
Technical Specifications
Electrical Specifications
[Image of WR62 standard gain waveguide horn antenna radiation pattern]| Frequency Range | 12 GHz - 18 GHz |
| V.S.W.R (avg) | 1.3 : 1 |
| Radiation Type | Directional |
| Polarization | Vertical or Horizontal |
| Horizontal Beam-width | 10° |
| Vertical Beam-width | 11° |
| Waveguide Type | WR62 / WG18 / R140 |
Mechanical & Environmental Specifications

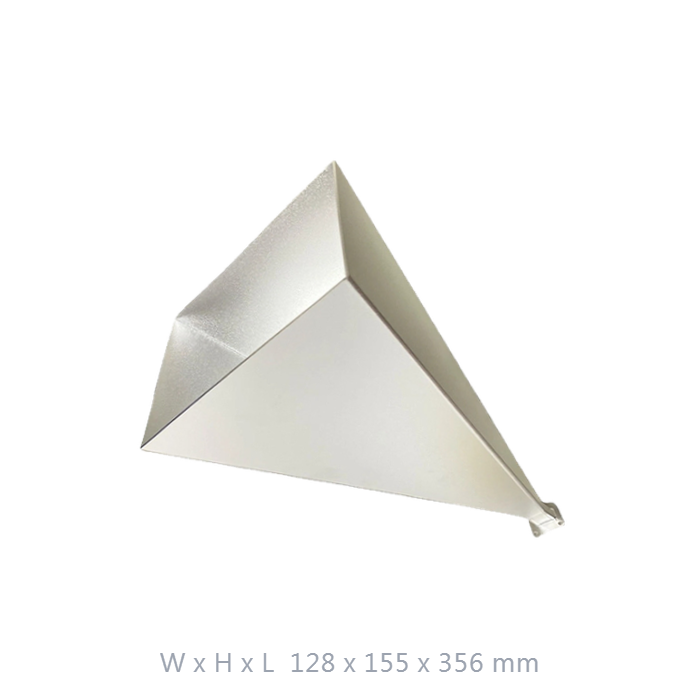

| Dimensions (Diameter) | 128 x 155 x 356 mm |
| Antenna Weight | 600 g |
| Flange Type | UBR UG-2664/U |
| Parts Material | Aluminum |
| Mounting Screw Holes | Diameter M4 * 4 |
| Operating Temperature | -20°C to +80°C |
| Compliance | RoHS |
Key Features
Ku-Band Specialization
Specifically optimized for the 12 - 18 GHz spectrum, providing high accuracy for satellite and radar testing.
Specifically optimized for the 12 - 18 GHz spectrum, providing high accuracy for satellite and radar testing.
Narrow Beam Precision
Features concentrated 10°/11° beamwidths, making it ideal for directional signal analysis and reference measurements.
Features concentrated 10°/11° beamwidths, making it ideal for directional signal analysis and reference measurements.
Lightweight Aluminum Build
Manufactured with a durable yet lightweight aluminum body (600g) for easy lab setup and mechanical stability.
Manufactured with a durable yet lightweight aluminum body (600g) for easy lab setup and mechanical stability.

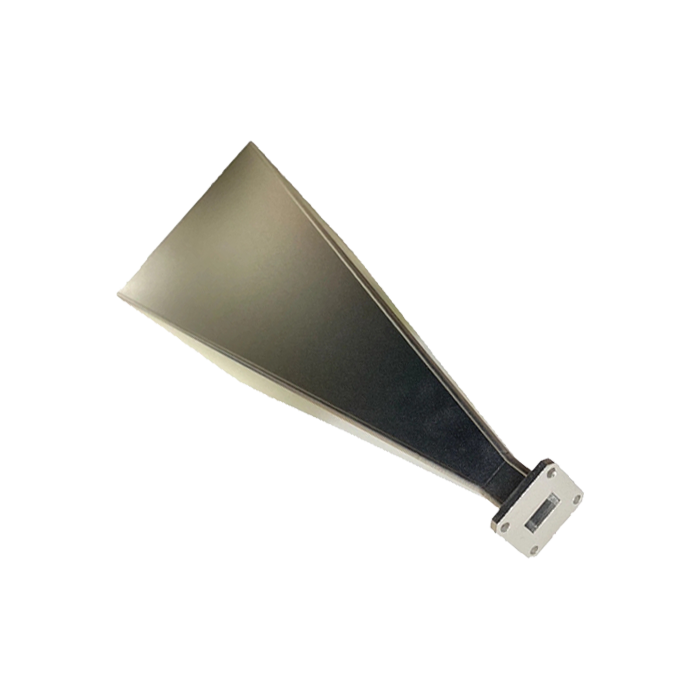

Standard Waveguide Interface
Equipped with a WR62 waveguide input and UG-2664/U flange for seamless system integration.
Equipped with a WR62 waveguide input and UG-2664/U flange for seamless system integration.
Rugged Environmental Design
Handles extreme storage temperatures from -20°C to +120°C while maintaining reliable indoor operation.
Handles extreme storage temperatures from -20°C to +120°C while maintaining reliable indoor operation.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet stringent industrial RF量測 standards.
Precision designed and manufactured in Taiwan to meet stringent industrial RF量測 standards.
