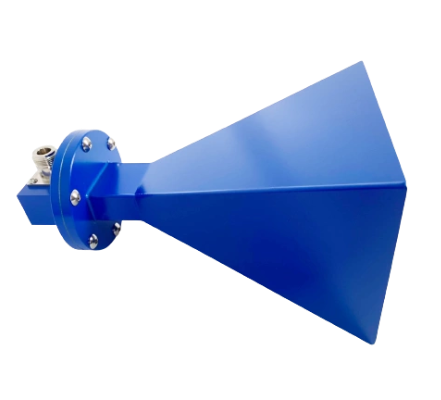

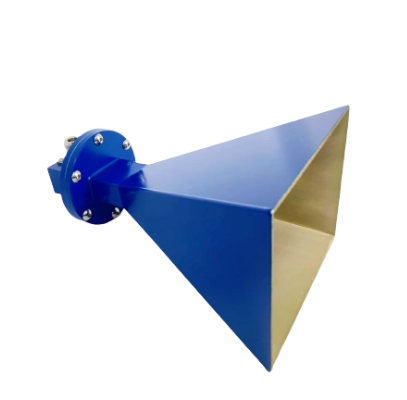

C-Band Standard Gain Horn Antenna
WR-137 Waveguide | 5.85 GHz – 8.2 GHz | 15 dBi Gain
The HS-13715A-NF is a high-precision standard gain horn antenna professionally engineered for C-band microwave measurements and laboratory calibration. Operating across the 5.85 GHz to 8.2 GHz frequency range, it maintains a stable nominal gain of 15 dBi with exceptional beam symmetry. Utilizing premium aluminum alloy and a durable Stainless Steel N-Female connector, this antenna ensures maximum Signal Integrity and predictable radiation characteristics. It is an indispensable instrument for EMI/EMC testing, antenna gain calibration, spectrum surveillance, and professional communication infrastructure verification.
Technical Specifications
Electrical RF Performance
[Image of standard gain waveguide horn antenna radiation pattern]
| Frequency Range | 5.85 GHz - 8.2 GHz (C-Band) |
| Antenna Type | Directional Horn Antenna |
| Nominal Gain | 15 dBi |
| V.S.W.R (Average) | 1.25 : 1 / 1.5 : 1 |
| Polarization | Vertical or Horizontal (Linear) |
| -3dB Beamwidth | Horizontal: 23° | Vertical: 20° |
| Maximum Power | 300 Watts |
Mechanical & Environmental Data

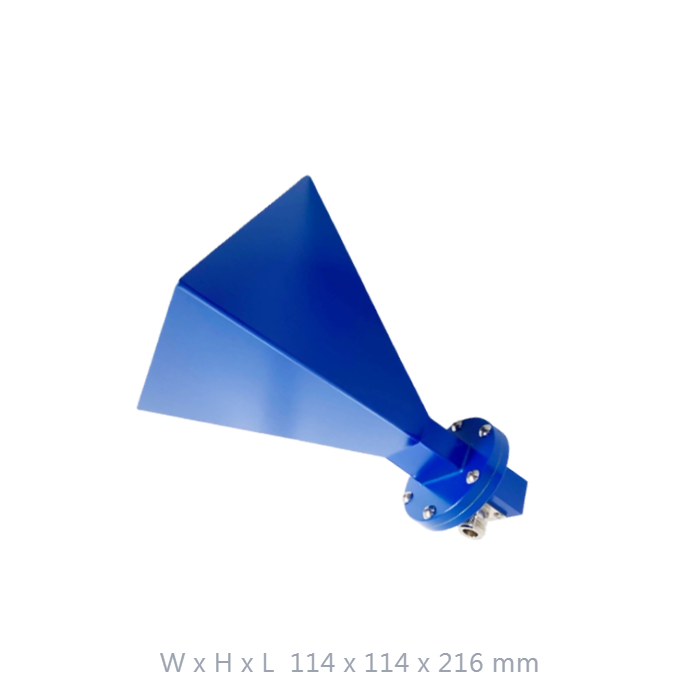

| Connector Interface | N-Female (Stainless Steel / SUS-303) |
| Waveguide Standard | WR-137 Architecture |
| Dimensions (LxWxH) | 216 x 144 x 114 mm |
| Net Weight | 458 g / 480 g |
| Material Finish | Aerospace-Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
| Operating Humidity | 10% ~ 70% non-condensing |
Professional Tactical Features
C-Band Precision Beam
Engineered for the 5.85-8.2 GHz spectrum, providing highly stable electrical performance and high symmetry for critical Signal Integrity measurements.
Industrial SUS Interface
Equipped with a precision stainless steel (SUS-303) N-Female connector to ensure reliable mating cycles and standardized connectivity with professional RF test equipment.
Consolidated Performance
Backed by a consolidated performance database to ensure traceable results for EMI/EMC testing, direction finding, and advanced spectrum surveillance.
Broadband Calibration Excellence
Ideal as a reference device for measuring the gain of other antennas, offering uniform gain across its entire operating bandwidth.
Inquire About C-Band Solutions
Contact our engineering team for specialized gain calibration data, custom mounting options, or technical support regarding broadband measurement setups.
