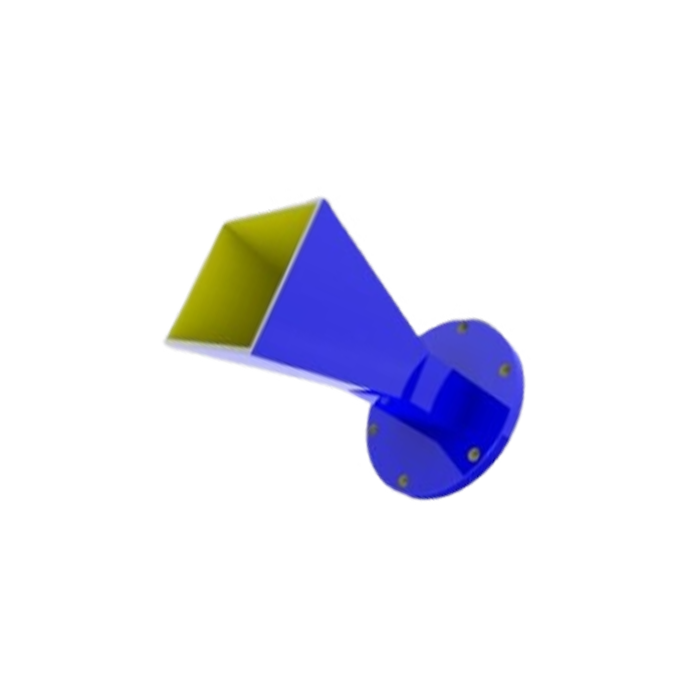

C-Band Precision Standard Gain Horn Antenna
WR-137 Waveguide | 5.85 GHz – 8.2 GHz | 10 dBi Gain
The HS-13710A-NF is a high-precision standard gain horn antenna professionally engineered for C-band microwave measurements and laboratory calibration. Operating within the 5.85 GHz to 8.2 GHz spectrum, it features a standardized WR-137 waveguide interface and high-durability Stainless Steel N-Female connector. Delivering a stable nominal gain of 10 dBi with uniform radiation patterns, this antenna is an essential component for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing where traceable accuracy and structural reliability are paramount.
Technical Specifications
Electrical RF Performance
[Image of standard gain waveguide horn antenna radiation pattern]
| Frequency Range | 5.85 GHz - 8.2 GHz (C-Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | Horizontal: 40° | Vertical: 42° |
| Maximum Power | 250 Watts (Continuous Power) |
Mechanical & Interface Data
| Connector Type | Stainless Steel N-Female |
| Waveguide Interface | WR-137 / WG14 / R70 Standard |
| Waveguide Adapter Model | WC-137-UAR-NF |
| Dimensions (WxHxL) | 67 x 52 x 148 mm |
| Net Weight | 320 g / 0.38 kg |
| Structural Material | Premium Aluminum Metal Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
C-Band Precision Beam
Designed specifically for the 5.85-8.2 GHz spectrum, providing highly stable electrical performance and minimal
