Description & Specification

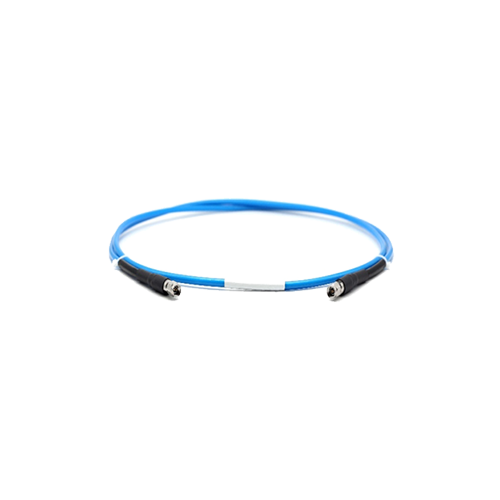

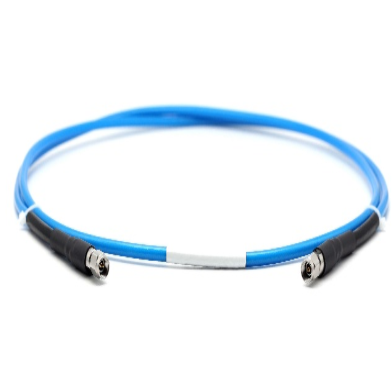

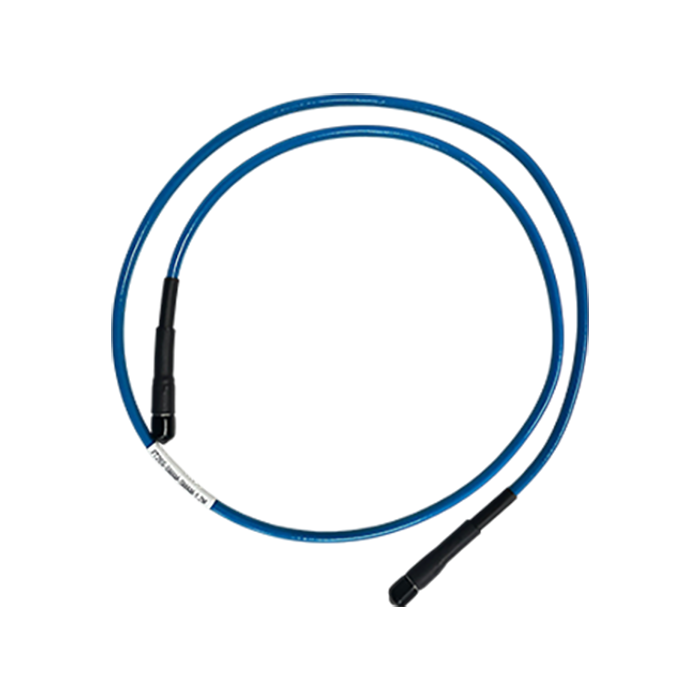

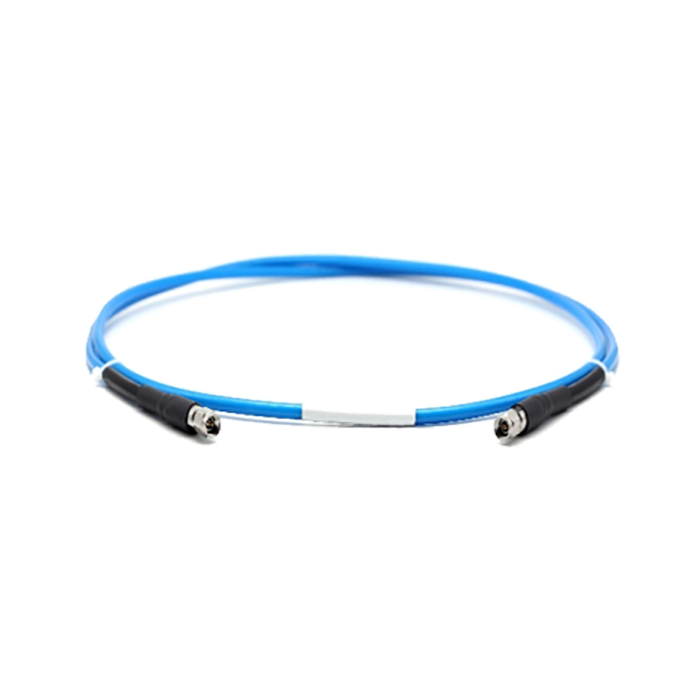

26.5 GHz Precision Cable Assembly

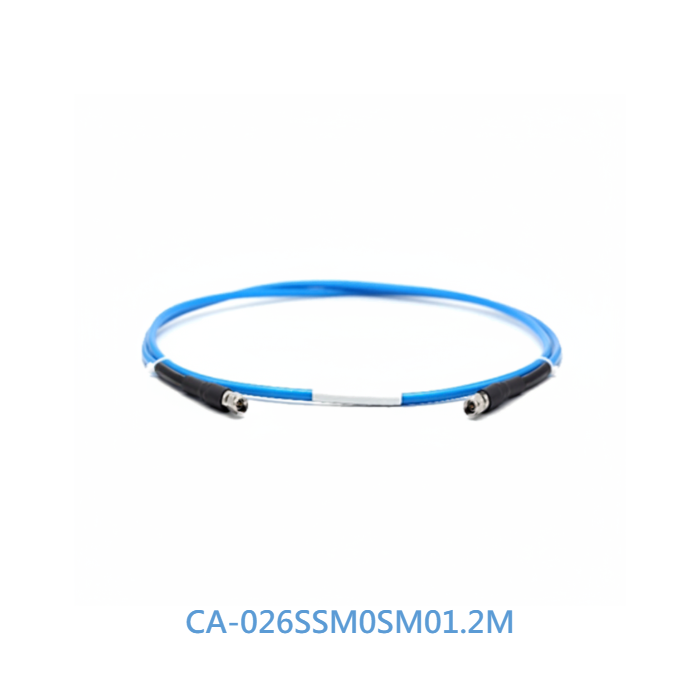

Model: CA-026SSM0SM01.2M | 1.2M SMA Male to Male | Armor Series
The CA-026SSM0SM01.2M is an elite-tier transmission solution engineered for precision RF systems up to 26.5 GHz. Utilizing the advanced multi-layer spiral silver-plated copper center conductor and a rugged PUR jacket, this assembly offers exceptional flexibility without sacrificing electrical performance. Designed for Signal Defense and high-vibration tactical applications, it maintains superior phase stability and shielding dominance in the hardest environmental conditions.
Technical Specifications
| Center Contact | Multi-layer spiral silver plated copper |
| Dielectric Layer | LD-PTFE (Low-Density PTFE) |
| Inner Shielding | Silver plated flat copper wire braid |
| Middle Shield | LD-PTFE Isolation Layer |
| Outer Shielding | Silver plated copper wire braid |
| External Jacket | PUR (Rugged Polyurethane) |
Technical Specifications
| Frequency Range | DC ～ 26.5 GHz |
| Impedance | 50 Ohm |
| Connectors | SMA Male to SMA Male (Straight) |
| Total Length | 1.2 Meters |
| Armor Protection | Integrated High-Flexibility Armor |
Professional Test Highlights
Spiral Center Flexibility
The multi-layer spiral silver-plated center contact design ensures exceptional durability during repeated bending, making it ideal for gimbal systems and mobile testing.
Triple-Shielded Dominance
Silver-plated flat and round copper braids provide maximum EMI/RFI suppression, supporting advanced Signal Security in high-interference environments.
PUR Mechanical Survival
The rugged Polyurethane (PUR) jacket offers superior abrasion, chemical, and oil resistance, ensuring long-term stability in field tactical deployments.
Superior Phase Stability
Utilizes LD-PTFE dielectrics to maintain consistent electrical length and minimal phase deviation during mechanical or thermal shifts.
Get a Quote / Custom RF Assemblies
Available in custom lengths with precision SMA, N-Type, or 2.92mm connectors. Contact our engineering team for technical support.
