WR137 Standard Gain Horn Antenna
- Select
HS-137-UAR-10A-NF
WR137 5.825GHz to 8.2GHz 10dbi Standard Gain Waveguide Horn Flange Type:01 Antenna N-Female
View Details
- Waveguide Type: WR-137
- Frequency: 5.825GHz to 8.2GHz
- Waveguide Coaxial Adapter Model: WC-137-UAR-NF
- Waveguide input Mode: WI-137-UAR-10
- Connector: N-Female
- V.S.W.R: 1.25
- Gain: 10 dBi
- Wieght(g): 320
- Size (mm): 67x52x148

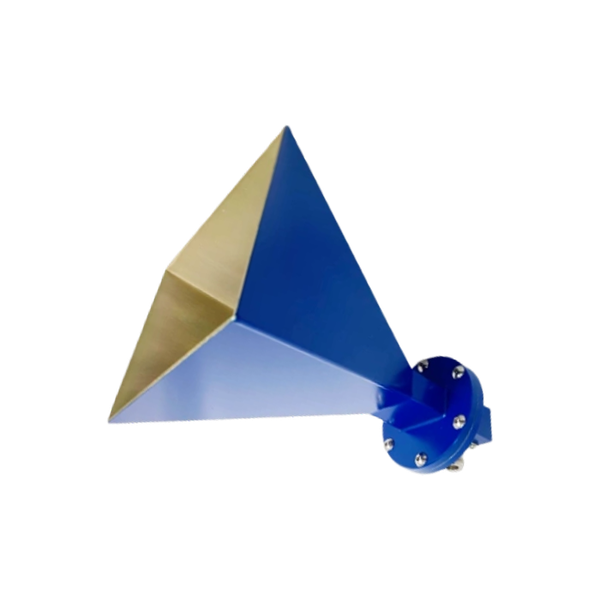

HS-137-UAR-15A-NF
WR137 Standard Gain Waveguide Horn Antenna, 5.825GHz to 8.2GHz frequency, 15dbi gain, UG 344/U Flange N-Female
View Details
- Waveguide Type: WR-137
- Frequency: 5.825GHz to 8.2GHz
- Waveguide Coaxial Adapter Model: WC-137-UDR-NF
- Waveguide input Mode: WI-137-UDR-15
- Connector: N-Female(SUS-303)
- V.S.W.R: 1.25
- Gain: 15 dBi
- Wieght(g): 480
- Size (mm): 144x114x216
- In stock: 1 pcs
HS-137-UAR-20A-NF
WR137 5.825GHz to 8.2GHz 20dbi Standard Gain Waveguide Horn Flange Type: 01 Antenna N-Female
View Details
- Waveguide Type: WR-137
- Frequency: 5.825GHz to 8.2GHz
- Waveguide Coaxial Adapter Model: WC-137-UAR-NF
- Waveguide input Mode: WI-137-UAR-20
- Connector: N-Female
- V.S.W.R: 1.25
- Gain: 20 dBi
- Wieght(g): 860
- Size (mm): 197x153x328
- In stock: 1 pcs
