Description & Specification

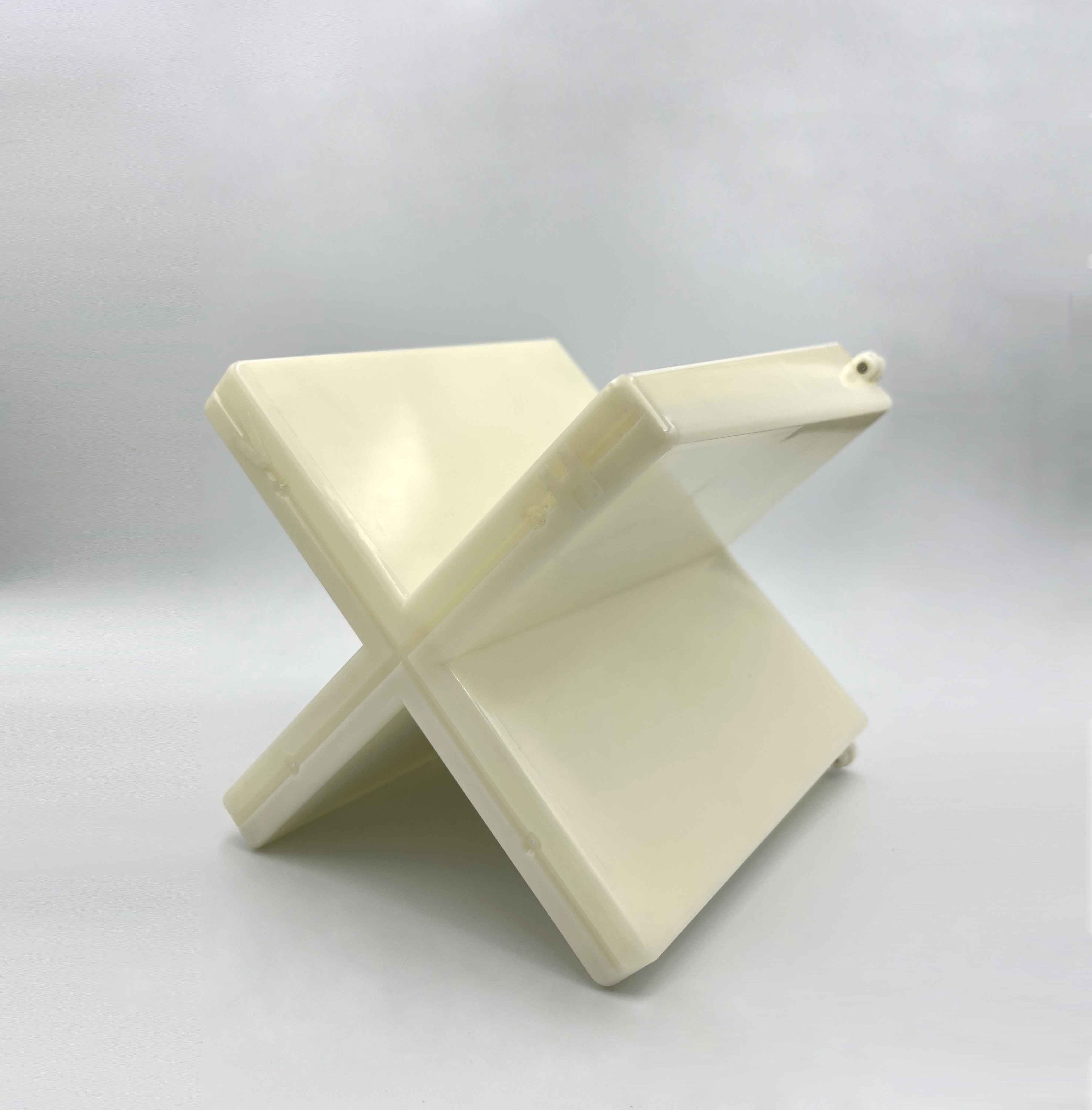

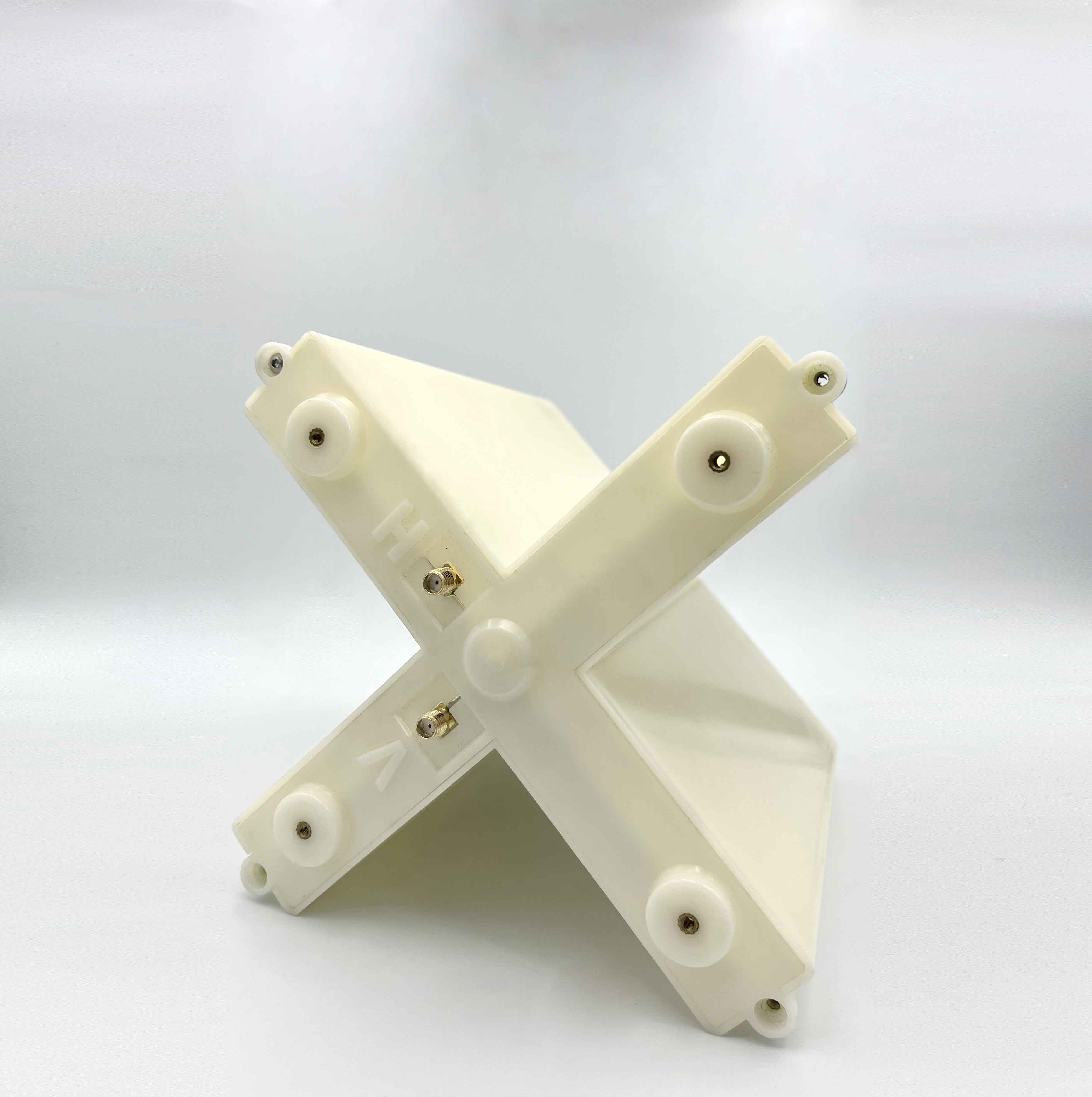

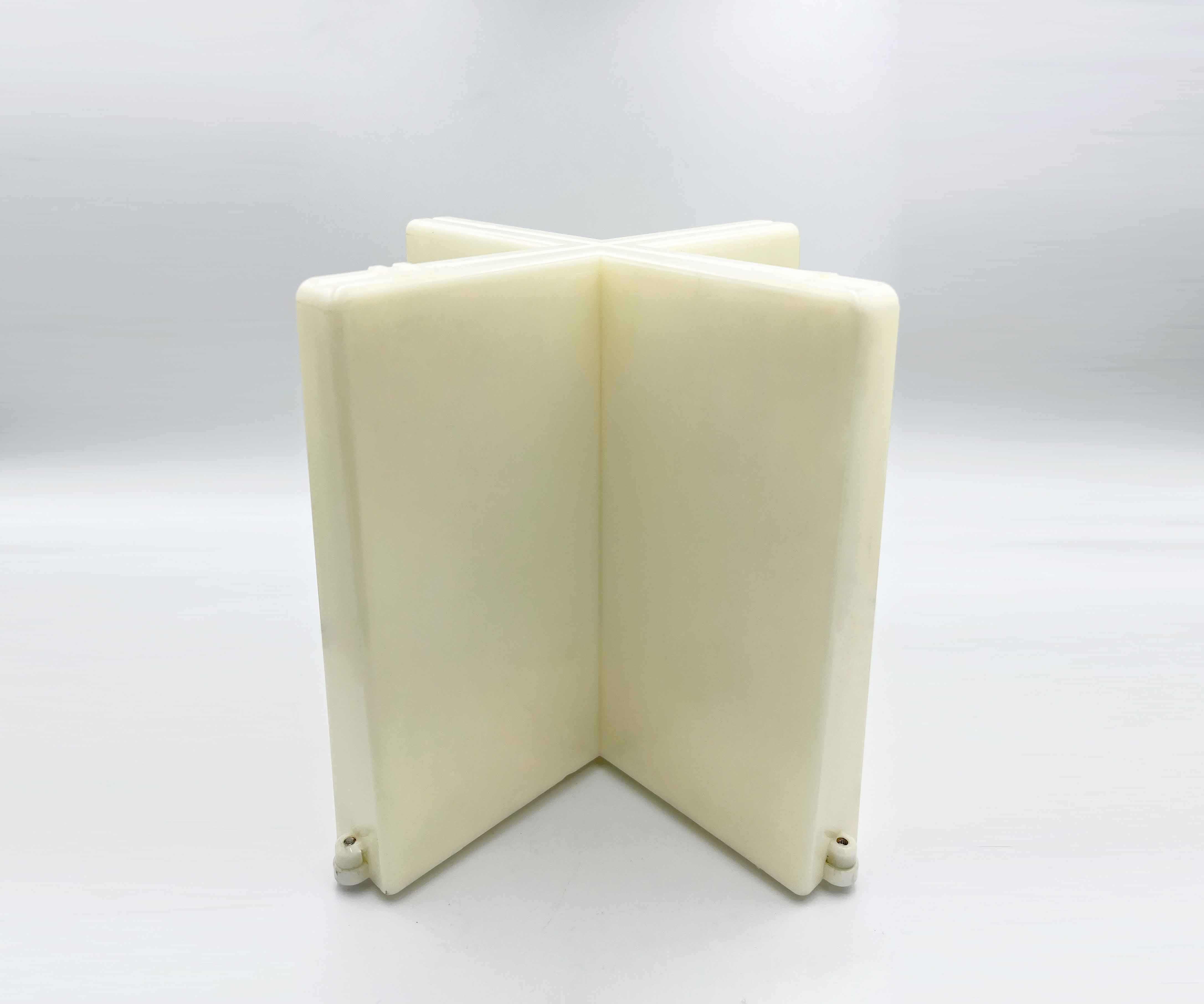

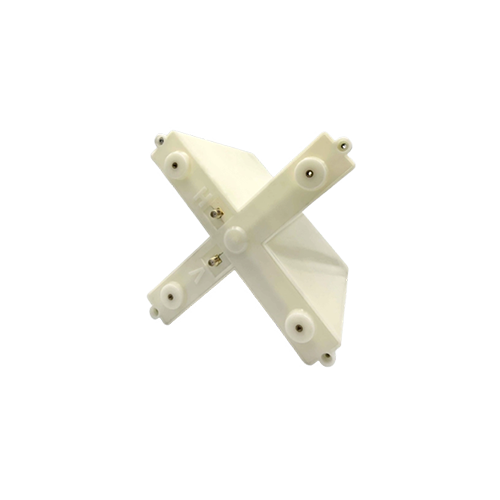

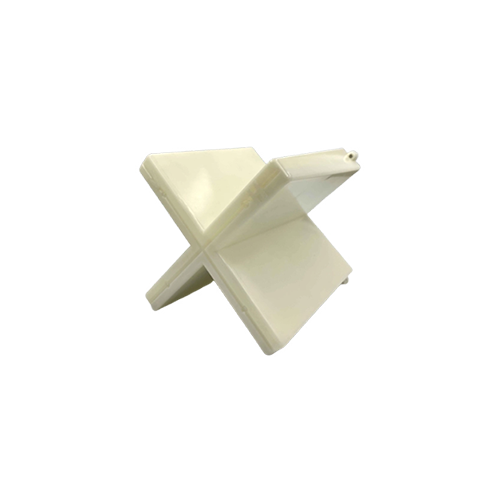

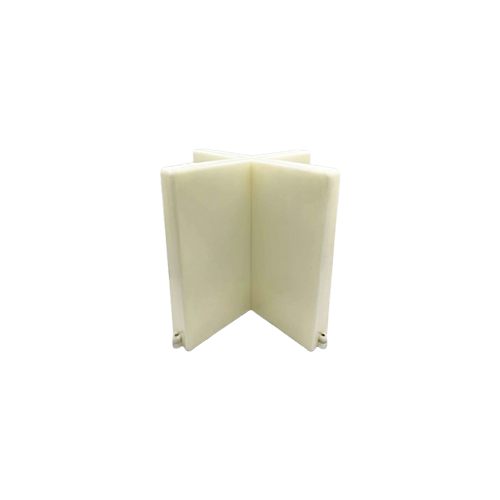

600MHz - 8GHz Vivaldi Antenna (Model: VC-06M08GA-SF)
New Launch | Ultra-Wideband | Upgraded from VC-07M10G-SF
The VC-06M08GA-SF is the newly newly launched evolution in our UWB antenna line, serving as the enhanced successor to the VC-07M10G-SF. This rugged Vivaldi Antenna offers an impressive frequency range from 600 MHz to 8 GHz, making it a versatile single-antenna solution for wideband spectrum monitoring, ground-penetrating radar (GPR), and EMC pre-compliance testing. Constructed from high-quality 6061 Aluminum Alloy, it ensures mechanical stability and consistent performance across its entire bandwidth.
Technical Specifications
Electrical Specifications
| Frequency Range | 600 MHz to 8 GHz |
| Gain | -14 dBi to 4 dBi (Frequency dependent) |
| Max Power Handling | 25 Watts (CW) |
| V.S.W.R | 3.0 : 1 (Max) |
| Polarization | Linear |
| Impedance | 50 Ohms |
Mechanical & Environmental Specifications

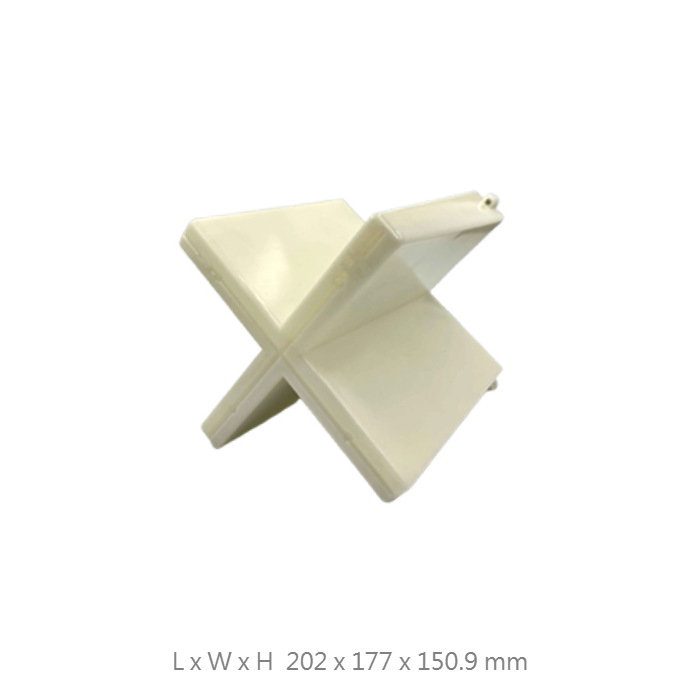

| Dimensions (L x W x H) | 202 x 177 x 150.9 mm |
| Net Weight | ~330 g |
| Body Material | 6061 Aluminum Alloy |
| Connector | SMA-Female (SMA-SMA) |
| Operating Temperature | -20°C to +80°C |
