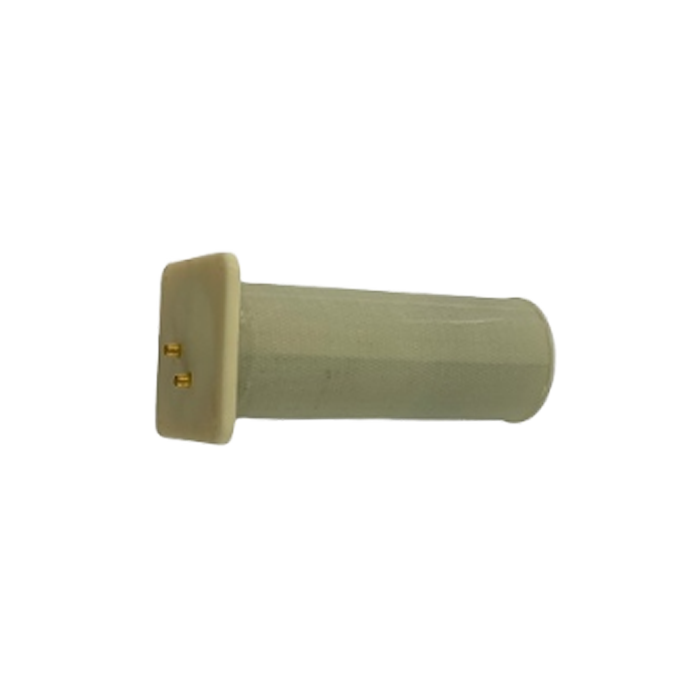

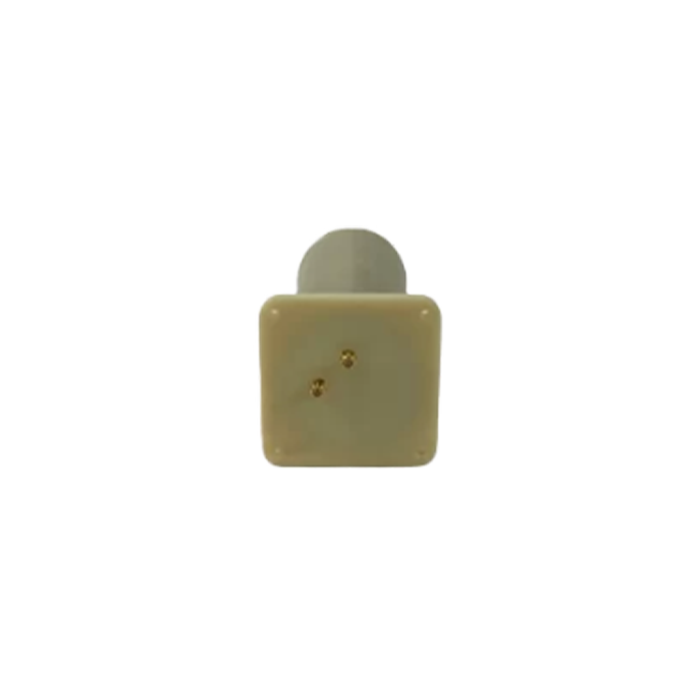

Wideband Dual-Polarized Vivaldi Antenna (Model: VC-07M10G-SF)
700 MHz - 10 GHz | Dual-Polarization | Note: Upgraded to VC-06M08GA-SF
The VC-07M10G-SF is a precision-engineered Dual-Polarized Dual-Vivaldi Antenna designed by FT-RF in Taiwan. Covering an ultra-wide frequency range from 700 MHz to 10 GHz, this antenna features a robust 6061 Aluminum alloy construction and Stainless Steel SMA-Female connectors. It is optimized for indoor applications requiring uniform gain and DC short lightning protection.
Important Notice: This original model (VC-07M10G-SF) is no longer in production and has been upgraded to the newer version: VC-06M08GA-SF. Please contact us for details on the latest generation.
Important Notice: This original model (VC-07M10G-SF) is no longer in production and has been upgraded to the newer version: VC-06M08GA-SF. Please contact us for details on the latest generation.
Technical Specifications
Electrical Specifications
| Frequency Range | 700 MHz – 10 GHz (UHF / L / S / C / X Band) |
| Gain | -14 dBi to 4 dBi |
| V.S.W.R | 3.0 : 1 (Average) |
| Antenna Type | Dual-Polarized Dual-Vivaldi |
| Polarization | Vertical or Horizontal (Dual) |
| Beamwidth (Vertical) | 52 Degrees |
| Beamwidth (Horizontal) | 74 Degrees |
| Maximum Power | 25 Watts (Peak) |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 7 dB |
| Antenna Factor | 40 - 53 dB/m |
Mechanical & Environmental Specifications

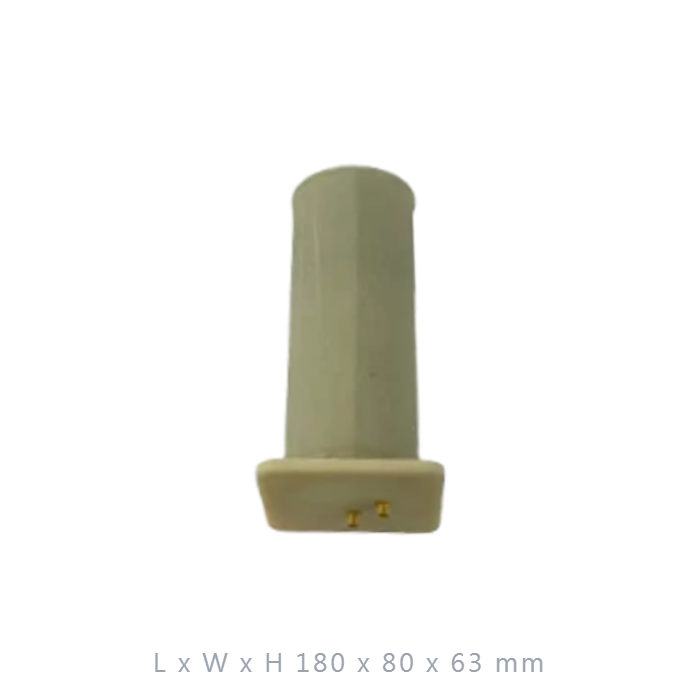

| Dimensions (LxWxH) | 180 x 80 x 63 mm |
| Weight | 130 g |
| Connector Type | SMA-Female (Stainless Steel) |
| Body Material | 6061 Aluminum Alloy, Fiberglass |
| Internal Material | RO4533 |
| Application | Indoor |
| Operating Temperature | -20°C to +80°C |
| Storage Temperature | -20°C to +100°C |
| Operating Humidity | 10% ~ 70% (non-condensing) |
| Safety Compliance | RoHS |
Key Features
Wideband Performance
Operates across a massive spectrum from 700 MHz to 10 GHz, covering UHF to X Bands.
Dual Polarization
Supports both Vertical and Horizontal polarization for versatile signal analysis and reception.
Rugged Design
Constructed with 6061 Aluminum metal alloy and Fiberglass for durability and stability.
Taiwan Made
Designed and manufactured in Taiwan, featuring high-quality components like Stainless Steel SMA connectors.
