  • 700MHz to 10GHz Open Boundary Quad-Ridged Broadband Horn Antenna SMA-Female

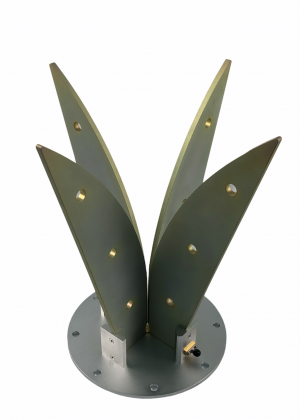

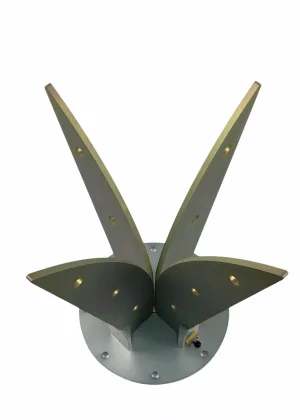

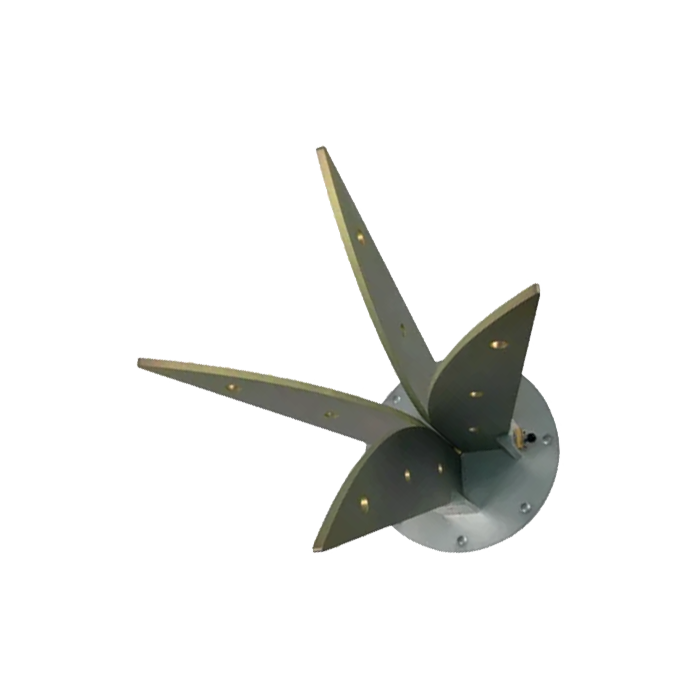

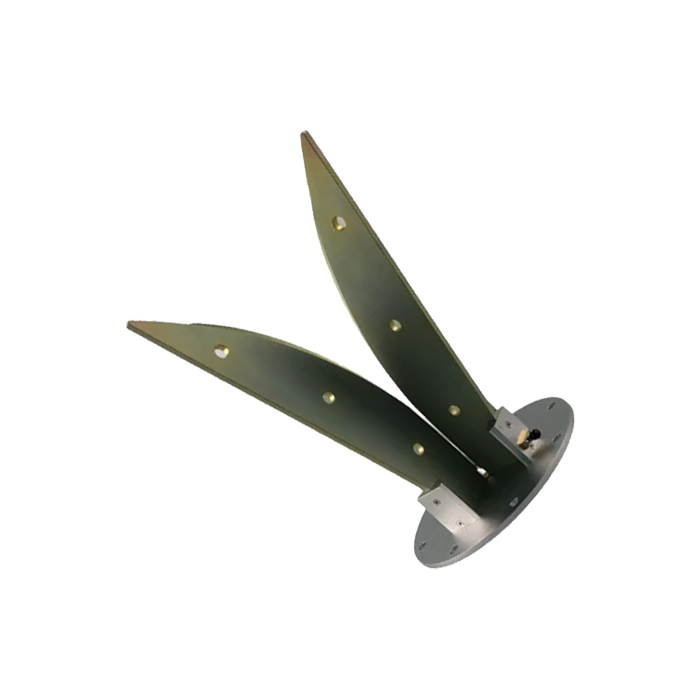

700MHz to 10GHz Open Boundary Quad-Ridged Broadband Horn Antenna SMA-Female

700MHz to 10GHz Open Boundary Quad-Ridged Broadband Horn Antenna SMA-Female

Model No: HR-07M10GT1-SF

Product Datasheet: Download

  • Frequency: 700MHz to 10 GHz
  • Gain: -8 dbi to 14 dBi
  • LxWxH: 241x241x281mm
  • In Stock: 3 - Delivery in 15 days
Quantity:
INQUIRY

  • Description & Specification

Applications:

  •    700MHz to 10GHz Open Boundary Quad-Ridged Horn Antenna SMA-Female
  •    6061 Aluminum metal alloy
  •    Stainless Steel SMA-female
  •    Taiwan Design, Made in Taiwan

Features:

  •  DC Short lightning protection
  •  Low VSWR
  •  Uniform Gain
  •  Consolidated performance database

Electrical Specifications

Frequency Range

700MHz - 10GHz

V.S.W. R

2.5 :1 (Avg)

Antenna Type

Horn

Radiation

Directional

Gain

-08 - 14dBi

Antenna Factor

26 – 43 dB/m

Polarization

Vertical and Horizontal or ± 45deg

Maximum Power

50W

Vertical Beamwidth

45 Deg

Horizontal Beamwidth

52 Deg

Impedance

50 Ohm

FBR

20 db

Antenna Design

Quad-Ridged

Connector

SMA-Female


Mechanical Specifications

Length x Width

241x241mm

Height

281 mm

Antenna Weight (N.W)

1.36 kg

Accessories (N.W)

50 g

Application

Indoor

Parts Material

Aluminum

L Mount Style

N/A

Mounting

N/A

Mount Style

Antenna Mounting 8mm screws

Storage Temperature

-20 to +80

Operating Temperature

-10 to +60

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS, WEEE, CE, FCC
