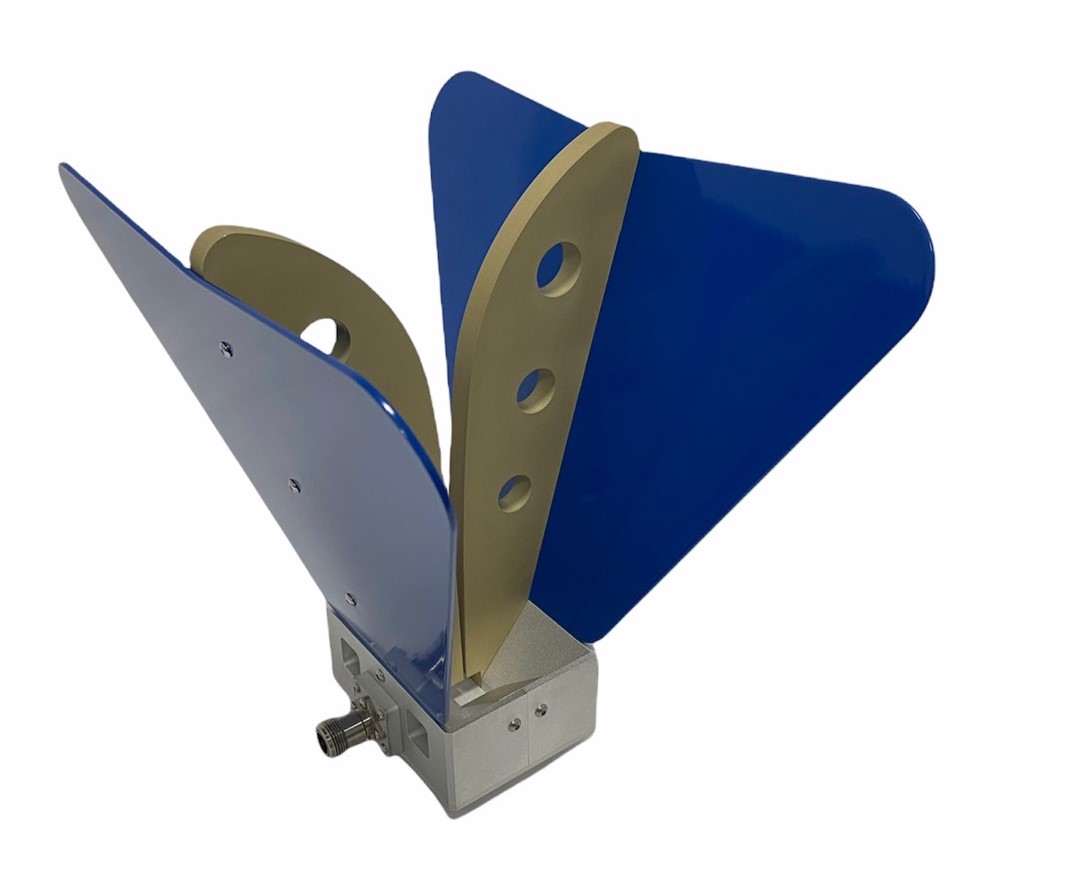

800MHz to 18GHz Open Boundary Double Ridged Broadband Horn Antenna N-Female

800MHz to 18GHz Open Boundary Double Ridged Broadband Horn Antenna N-Female

Model No: HB-08M18G-NF

Product Datasheet: Download

  • Frequency: 800MHz-18GHz
  • Gain: 3dbi to 14dBi
  • LxWxH: 204x208x168mm
  • In Stock: 5 - Delivery in 15 days
Quantity:
INQUIRY

  • Description & Specification

Applications:

  •  800MHz to 18GHz Open Boundary Double Ridged Horn Antenna N-Female
  •  6061 Aluminum metal alloy
  •  Stainless Steel N-female
  •  Taiwan Design, Made in Taiwan

Features:

  •  High Power 500W (peak) 300W (Cont)
  •  DC Short lightning protection
  •  Low VSWR
  •  Uniform Gain
  •  Consolidated performance database

Mechanical Specifications

Model : HB-08M18G-NF
LxWxH : 204x208x168mm
Connector : N-Female
Styling : Open Boundary Double Ridge
Gain : 3dbi-14dBi
-3db Beam-width : 17 deg- 70 deg
N.W. : 1.05 KG
Frequency : 800MHz-18GHz
Polarization : Vertical or Horizontal
