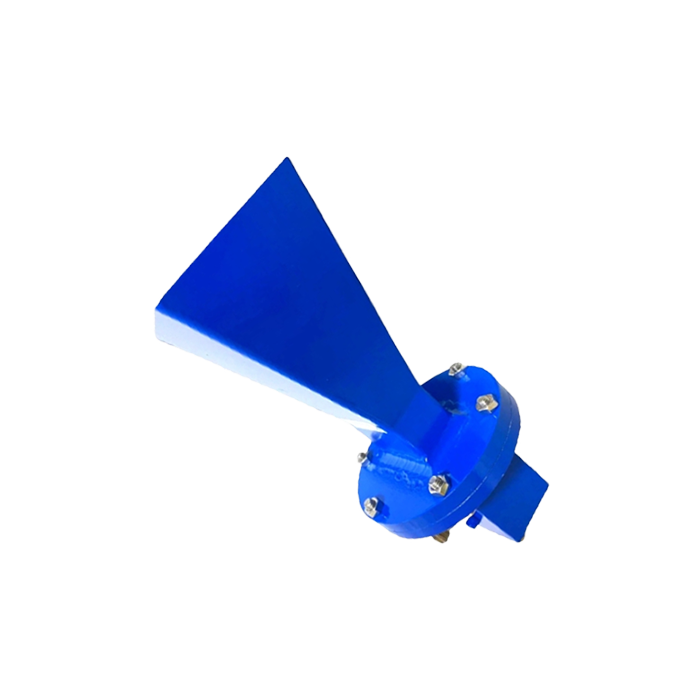

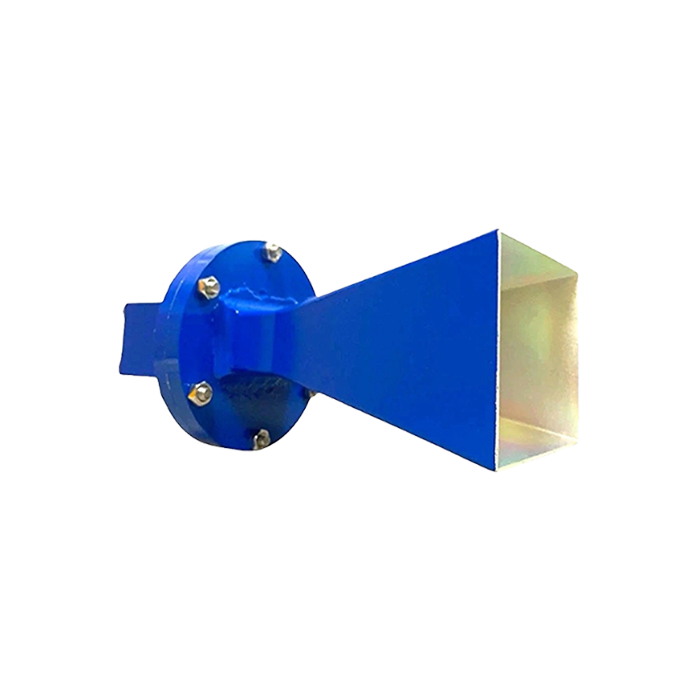

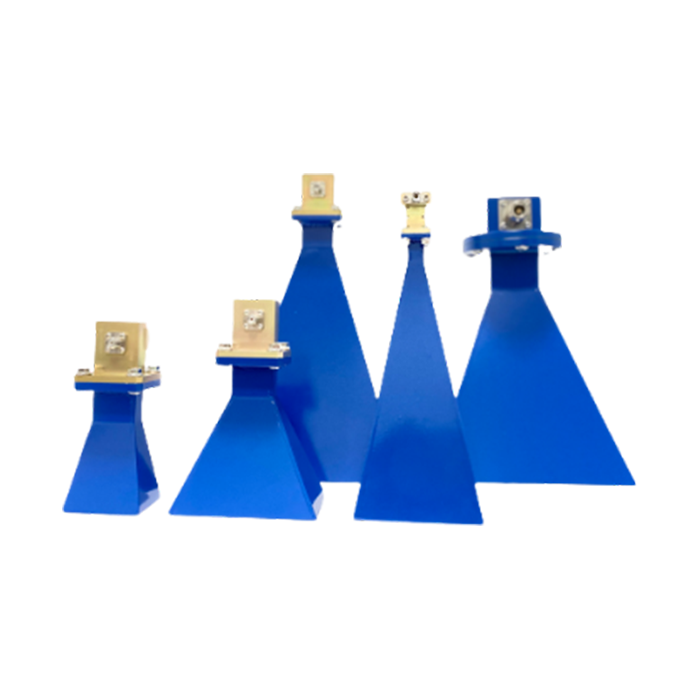

WR159 4.9GHz to 7.05GHz 10dbi Stand Gain Waveguide Horn Antenna, UAR Flange, N-Female connector
FT-RF Horn Antenna
10 out of
10
-
Description & Specification
C-Band Precision Standard Gain Horn
WR-159 Waveguide | 4.9 GHz – 7.05 GHz | 10 dBi Gain
The HS-159-UAR-10A-NF is a high-precision standard gain horn antenna professionally engineered for C-band microwave measurements and laboratory calibration. Operating across the 4.9 GHz to 7.05 GHz range, it features a standardized WR-159 waveguide interface and CPR 159 flange compatibility. Delivering a stable nominal gain of 10 dBi, this antenna is an indispensable component for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing where traceable accuracy and structural reliability are paramount.
Technical Specifications
Electrical RF Performance
[Image of standard gain horn antenna radiation pattern]
| Frequency Range | 4.9 GHz - 7.05 GHz (C-Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 54° | E-Plane: 54° |
| Maximum Power | 500 Watts (CW) |
Mechanical & Interface Data
| Connector Type | N-Female Interface |
| Waveguide Interface | WR-159 Architecture |
| Flange Compatibility | CPR 159 F/G System |
| Coaxial Adapter Model | WC-159-UAR-NF |

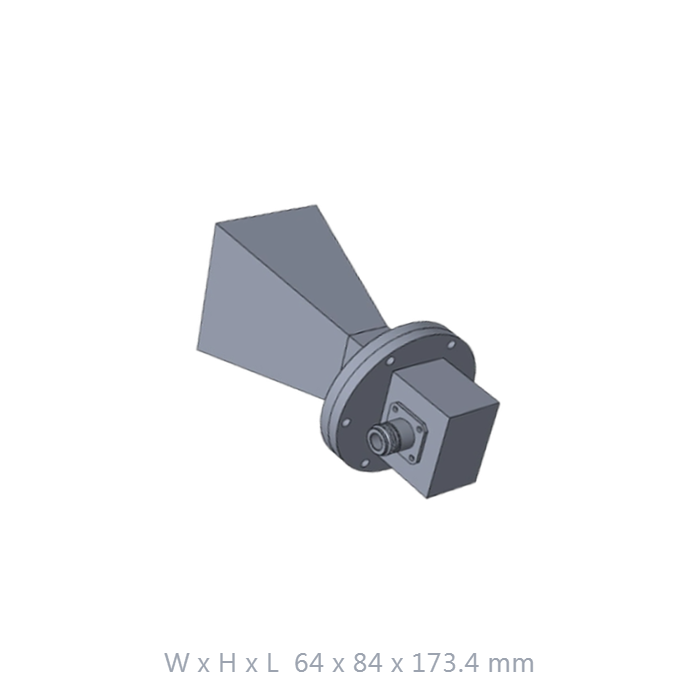

| Dimensions (WxHxL) | 64 x 84 x 173.4 mm |
| Net Weight | 450 g |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
C-Band Precision Integrity
Specifically engineered for the 4.9-7.05 GHz spectrum, providing highly stable electrical performance and low loss for critical Signal Integrity measurements.
500W High Power Handling
Constructed to support high power loads up to 500 Watts, ensuring reliability during continuous duty cycles in high-intensity laboratory environments.
Uniform Gain Consistency
Delivers a predictable 10 dBi gain profile across the bandwidth, making it an ideal reference device for measuring the gain of other antennas.
Robust Structural Build
Constructed from premium aluminum alloy with precise mechanical alignment to ensure traceable results for EMI/EMC testing and spectrum surveillance.
Inquire About C-Band Solutions
Contact our engineering team for specialized gain data, heavy-duty mounting options, or technical support regarding broadband measurement setups.
