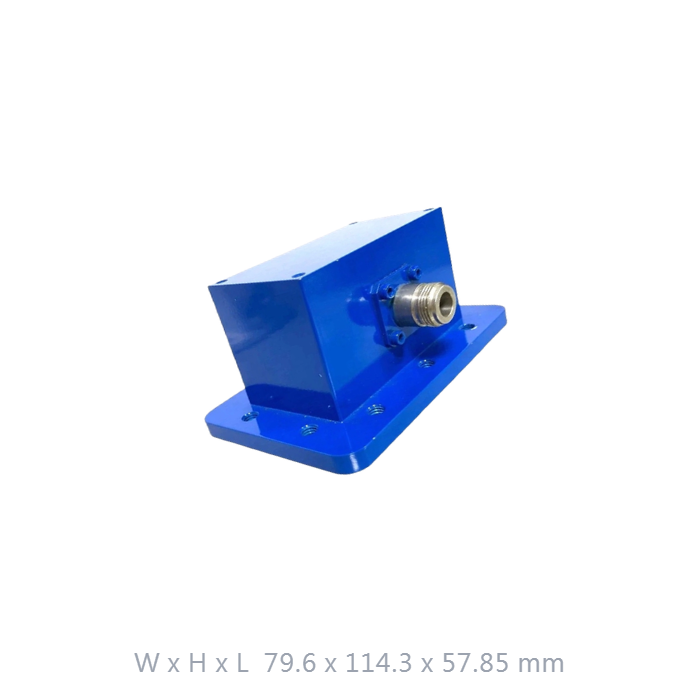

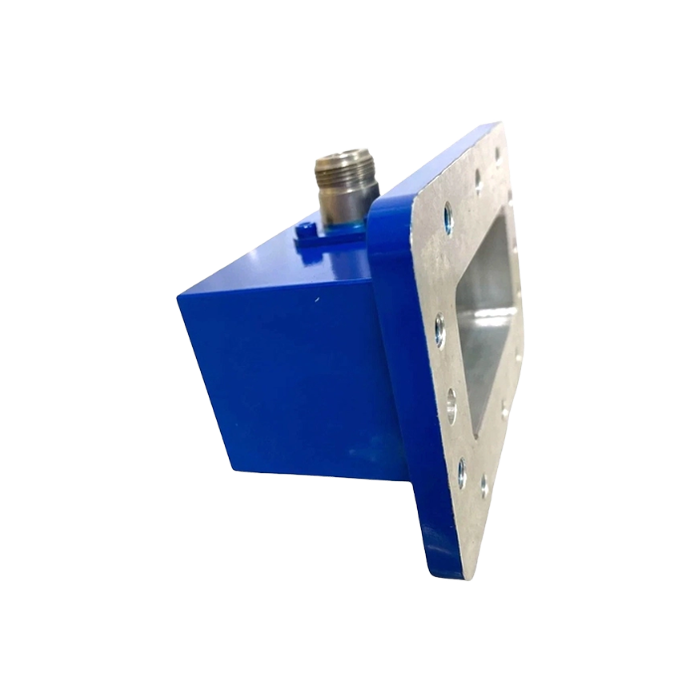

WR-284 Waveguide to Coaxial Adapter
Precision S-Band Transition | Standard UDR Flange Layout | 2.6 GHz – 3.95 GHz
The WC-284-UDR-NF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-284 architectural standard. Operating continuously across the 2.6 GHz to 3.95 GHz S-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low nominal V.S.W.R profile of 1.25 : 1. Manufactured from high-grade aluminum alloy in Taiwan, this robust 430 g adapter features a standardized rectangular UDR Style (PDR/CPR284 compatible) flange interface mated to a precision coaxial N-Female connector port, safely managing continuous wave power loads up to 300 Watts (CW). This layout makes it the definitive choice for professional S-band radar system calibration, antenna measurement ranges, wireless testing chambers, and high-fidelity laboratory verification setups.
Electrical & RF Performance
| Frequency Range | 2.6 GHz to 3.95 GHz (S-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-284 (R32 / WG10 Layout) |
| Waveguide Flange Designation | UDR Style Flange Standard Layout (Compatible with PDR/CPR284) |
| Coaxial Connector Interface | N-Female Interface Premium Port |
| Physical Dimensions (W x H x L) | 79.6 x 114.3 x 57.85 mm |
| Net Weight | 430 g |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Connector Interface Material | Premium Wear-Resistant Stainless Steel |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
S-Band Spectrum Integrity
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal signal leakage and clean mapping flatness across the full 2.6–3.95 GHz operating spectrum.
Low-Loss Coaxial Interface
Equipped with a high-durability, precision-aligned coaxial N-Female connector port, ensuring reliable electrical contact stability and long-term wear resistance for repeatable laboratory duty cycles.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring outstanding mechanical flat tolerances and enduring calibration constancy.

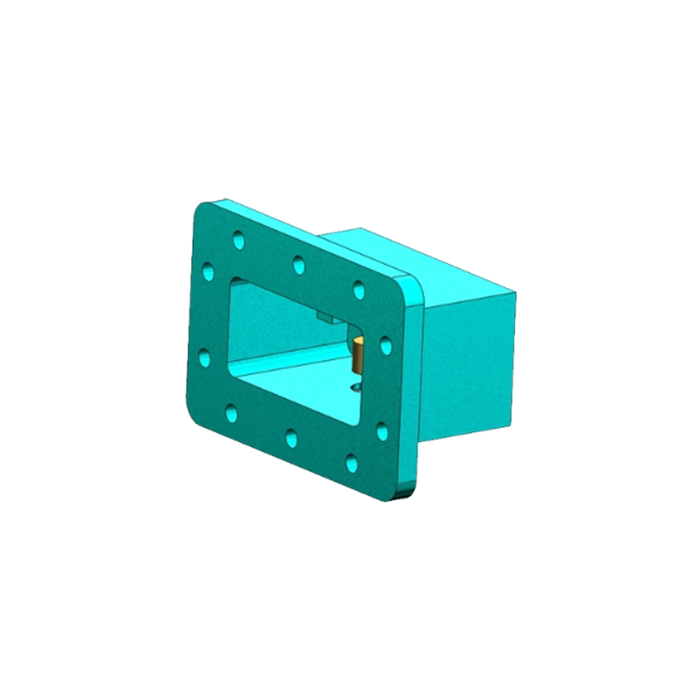

Standardized UDR Flange
Features a specialized UDR waveguide flange for secure mechanical coupling, ensuring stable power transitions and repeatable, uncompromised test results in severe RF testing configurations.
Request a Professional Quote
Contact our technical engineering team today to request certified individual V.S.W.R plots, detailed radiation pattern documentation, or custom waveguide flange hole configurations.
