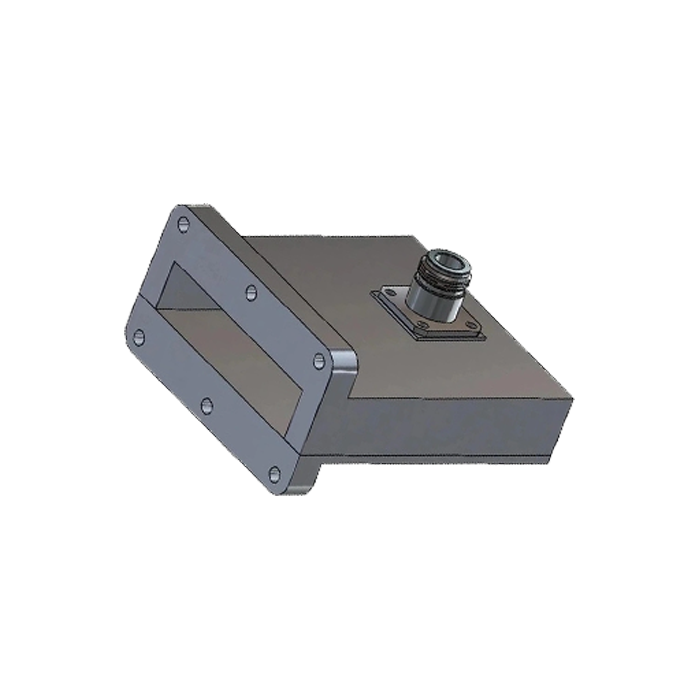

7.05 GHz to 10.0 GHz WR-112 1/2 Height Waveguide Adapter
Model: WC-284-H-PDR-NF | N-Female Stainless Steel | 300W CW
The WC-284-H-PDR-NF is a high-precision, compact Waveguide to Coaxial Adapter professionally engineered for the WR-112 waveguide standard. Operating within the 7.05 GHz to 10.0 GHz X-Band spectrum, this specialized 1/2 height component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing and laboratory measurement ranges. Featuring a robust Stainless Steel N-Female connector and a specialized PDR flange, it ensures low-loss coupling and exceptional Signal Integrity for mission-critical RF deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 7.05 GHz to 10.0 GHz |
| Waveguide Standard | WR-112 / R84 / WG15 (1/2 Height) |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

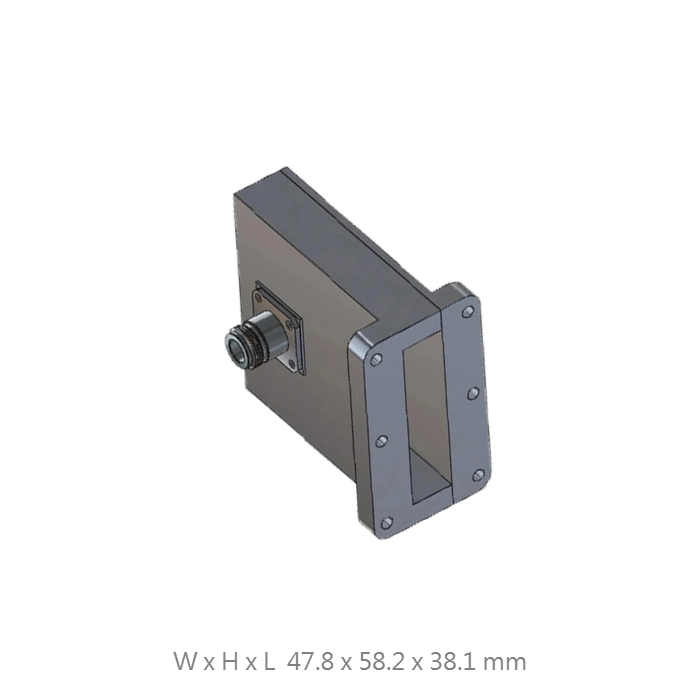

| Dimensions (W x H x L) | 47.8 x 58.2 x 38.1 mm |
| Net Weight | 110 g (Ultra-Lightweight) |
| Waveguide Flange | 1/2 Height PDR Style |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | N-Female (Stainless Steel) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
X-Band Spectrum Integrity
Optimized internal transition geometry ensures minimal signal reflection and reflection across the full 7.05-10.0 GHz band, essential for professional Signal Defense operations.
Rugged Stainless Interface
Equipped with a high-durability stainless steel N-Female connector to provide superior electrical contact stability and long-term wear resistance for repeatable laboratory measurements.
Compact 1/2 Height Build
At only 110g, this specialized 1/2 height adapter ensures minimal mechanical load on precision laboratory positioners while maintaining the structural rigidity required for field testing.
Standardized PDR Flange
Features a specialized PDR waveguide flange for secure mechanical coupling, ensuring repeatable and accurate testing results in demanding microwave evaluations.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling, or alternative waveguide adapter designs.
