Description & Specification

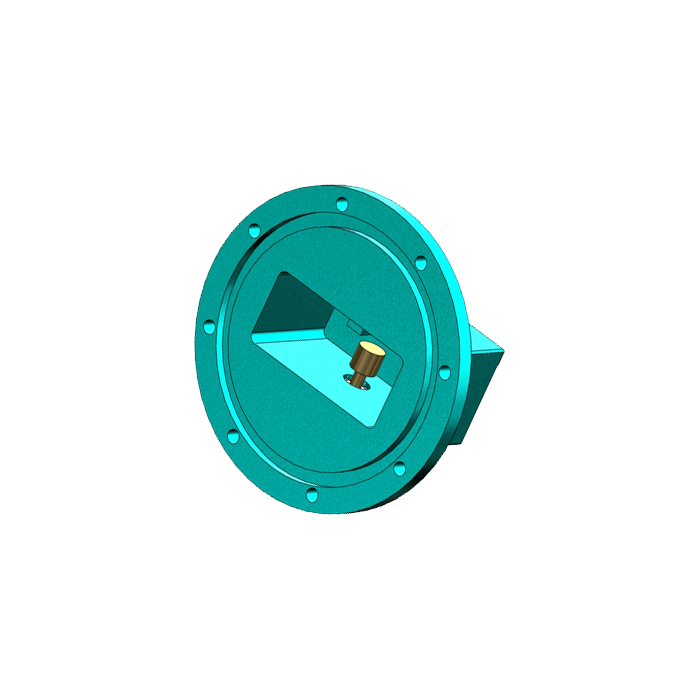

2.6 GHz to 3.95 GHz WR-284 Waveguide to Coaxial Adapter
Model: WC-PAR-284-NF | N-Female Connector | 300W High Power
The WC-PAR-284-NF is a high-precision Waveguide to Coaxial Adapter specifically engineered for the WR-284 waveguide standard. Operating within the 2.6 GHz to 3.95 GHz spectrum, this component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing, antenna measurement ranges, and S-band radar system calibration. Featuring a robust N-Female connector and a specialized PAR flange, it ensures low-loss coupling and exceptional Signal Integrity for mission-critical RF deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 2.6 GHz to 3.95 GHz |
| Waveguide Standard | WR-284 / R32 / WG10 |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

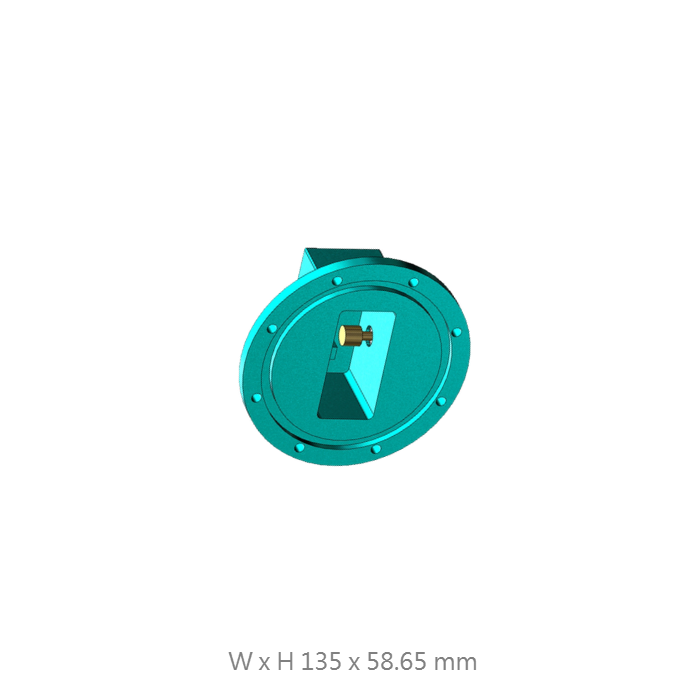

| Dimensions (W x H) | 135 x 58.65 mm |
| Net Weight | 530 g |
| Waveguide Flange | PAR Style |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | N-Female |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
S-Band Spectrum Integrity
Optimized internal transition geometry ensures minimal signal leakage and reflection when paired with professional S-band waveguide hardware or antennas.
Low-Loss Coaxial Interface
Equipped with a precision N-Female connector, providing reliable electrical contact and structural durability for repeatable laboratory and field measurements.
Precision Aluminum Architecture
Fully machined from high-grade aluminum to ensure high structural rigidity while remaining easy to deploy on laboratory positioners or tactical masts.
Standardized PAR Flange
Features a specialized PAR waveguide flange for secure mechanical coupling, ensuring repeatable results in demanding RF evaluation sub-systems.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, radiation patterns, or customized waveguide flange requirements.
