  • WR284 Waveguide Coaxial Adapter, UAR Flange, operating from 2.6 to 3.95GHz, N-Female Connector

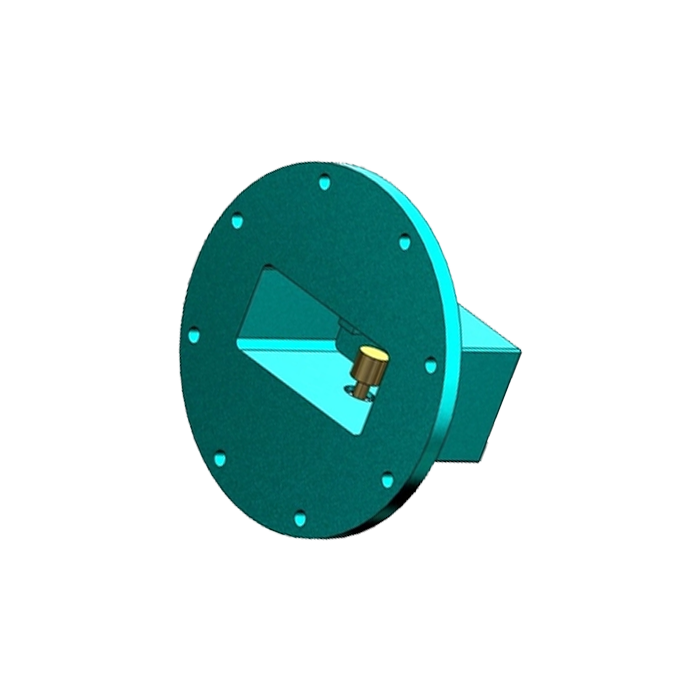

WR284 Waveguide Coaxial Adapter, UAR Flange, operating from 2.6 to 3.95GHz, N-Female Connector

WR284 Waveguide Coaxial Adapter, UAR Flange, operating from 2.6 to 3.95GHz, N-Female Connector

Model No: WC-284-UAR-NF

Mechanical Drawing: Download

Application:  WR284 Waveguide Coaxial Adapter, UAR Flange, operating from 2.6 to 3.95GHz, N-Female Connector Use with WR284 Standard gain horn antenna Feature:  Meet international standards Good appearance design Custom design: (Please contact us: info-tw@ft168.com.tw) Specification: Model: WC-284-UAR-NF Waveguide: WR-284 Frequency: 2.6 to 3.95GHz Max Power(W): 300W Size(mm): 134.9x58.65 Weight (g): 560 Waveguide Flange: UAR Connector: N-Female V.S.W.R: 1.25 Body: Aluminum
Quantity:
INQUIRY

  • Description & Specification

Application:

  • WR284 Waveguide Coaxial Adapter, UAR Flange, operating from 2.6 to 3.95GHz, N-Female Connector
  • Use with WR284 Standard gain horn antenna

Feature:

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

Specification:

  • Model: WC-284-UAR-NF
  • Waveguide: WR-284
  • Frequency: 2.6 to 3.95GHz
  • Max Power(W): 300W
  • Size(mm): 134.9x58.65
  • Weight (g): 560
  • Waveguide Flange: UAR
  • Connector: N-Female
  • V.S.W.R: 1.25
  • Body: Aluminum
