  • WR284 Waveguide Coaxial Adapter, PDR Flange, operating from 2.6 to 3.95GHz, N-Female Connector
WR284 Waveguide Coaxial Adapter, PDR Flange, operating from 2.6 to 3.95GHz, N-Female Connector

WR284 Waveguide Coaxial Adapter, PDR Flange, operating from 2.6 to 3.95GHz, N-Female Connector

Model No: WC-284-PDR-NF

Mechanical Drawing: Download

  • Waveguide: WR-284
  • Frequency: 2.6 to 3.95GHz
  • Max Power(W): 300W
Quantity:
INQUIRY

  • Description & Specification

Application:

  • WR284 Waveguide Coaxial Adapter, PDR Flange, operating from 2.6 to 3.95GHz, N-Female Connector
  • Use with WR284 Standard gain horn antenna

Feature:

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

Specification:

  • Model; WC-284-PDR-NF
  • Waveguide: WR-284
  • Frequency: 2.6 to 3.95GHz
  • Max Power(W): 300W

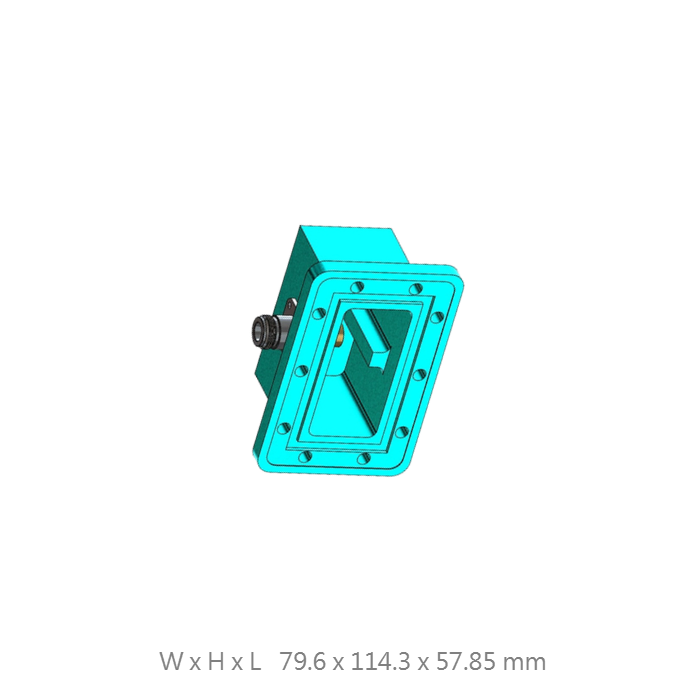

  • Size(mm): 79.6x114.3x57.85
  • Weight(g): 430
  • Waveguide Flange: PDR
  • Connector: N-Female
  • V.S.W.R: 1.25
  • Body: Aluminum
