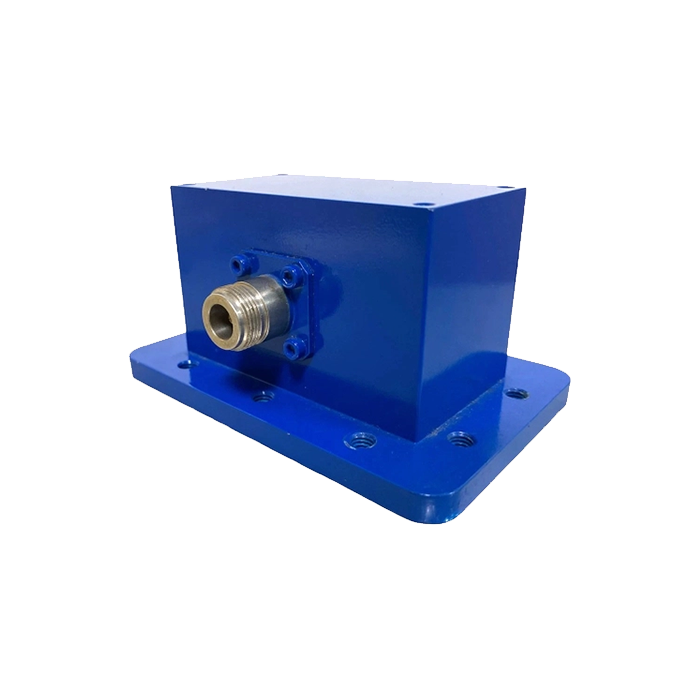

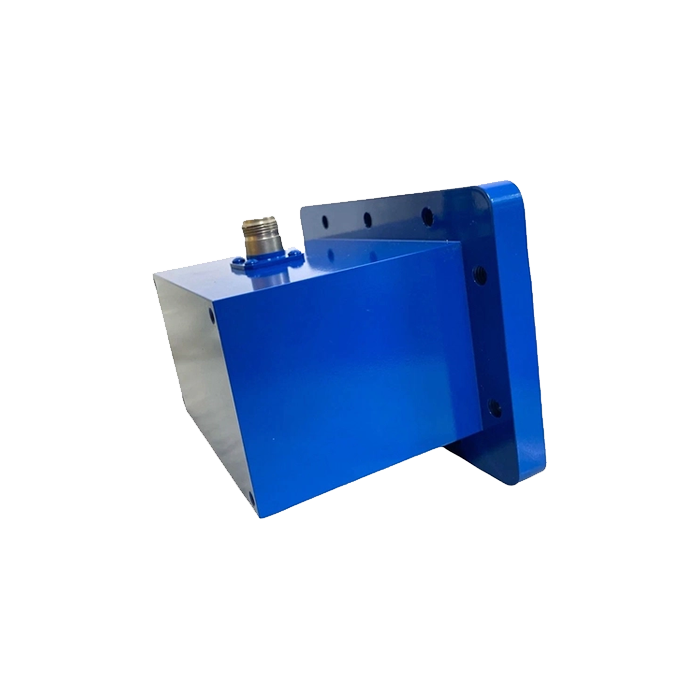

WR430 Waveguide to Coaxial Adapter
Precision LS-Band Transition | Standard UDR Flange Layout | 1.7 GHz – 2.6 GHz
The WC-430-UDR-NF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR430 architectural standard. Operating continuously across the 1.7 GHz to 2.6 GHz LS-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with a low maximum V.S.W.R profile of 1.3 : 1. Manufactured from high-grade aluminum alloy in Taiwan, this robust 1.35 kg adapter features a standardized rectangular UDR Style (CPR-430 compatible) flange interface mated to a precision coaxial N-Female connector port, safely managing continuous wave power loads up to 300 Watts (CW). This layout makes it the definitive choice for driving standard gain horn antennas during radiation pattern tests, telemetry tracking networks, meteorological radar setups, and high-fidelity laboratory verification matrices.
Electrical & RF Performance
| Frequency Range | 1.7 GHz to 2.6 GHz (LS-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR430 (R22 / Layout) |
| Waveguide Flange Designation | UDR Style Flange (CPR-430 Compatible Layout) |
| Coaxial Connector Interface | N-Female Interface Premium Port |

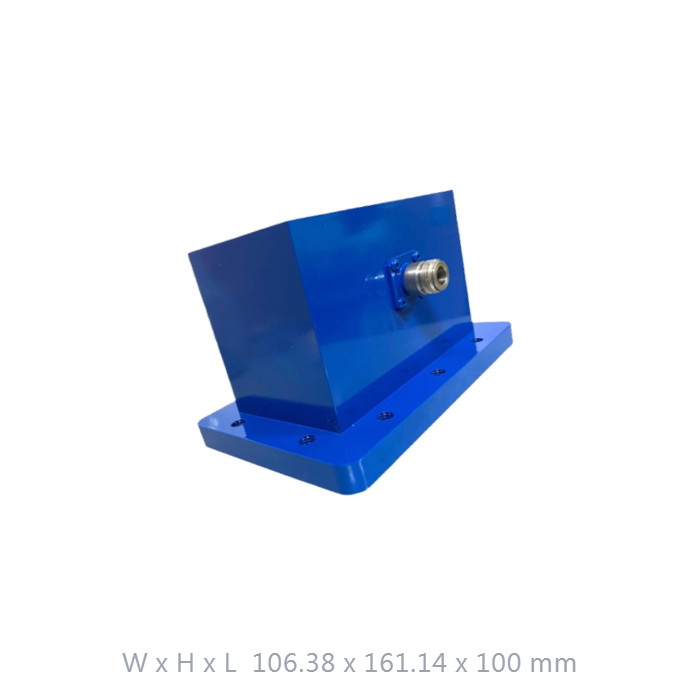

| Physical Dimensions (W x H x L) | 106.38 x 161.14 x 100 mm |
| Net Weight | 1350 g (1.35 kg Balanced Construction Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Horn Antenna Synergy
Designed primarily to feed WR430 Standard Gain Horn architectures, ensuring optimized impedance matching thresholds for accurate directional radiation pattern tests.
LS-Band Specialist
Targets the precise 1.7-2.6 GHz frequency band spectrum, serving as a critical uncompromised link for modern tracking telemetry networks and meteorological radar applications.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, ensuring structural concentricity, perfect axial leveling, and repeatable tracking factors.
Balanced 1.35kg Build
Engineered with a structurally sound aluminum profile heavy enough to provide structural rigidity, yet light enough to be mounted safely on multi-axis automated rotating positioners.
300W Transmission Endurance
Sustains continuous power thresholds up to 300 Watts CW reliably without thermal breakdown, rendering it ideal for medium-power transmission setups and high-sensitivity receivers.
Get a Quote / Customization
Contact our technical engineering team today to request certified alternative flange hole drilling options, individual certified V.S.W.R plots, specialized waterproof sealing rings, or custom color coatings.
