18GHz to 40GHz Double Ridged Broadband Wave guide Horn Antenna, K-Female Connector
FT-RF Horn Antenna
10 out of
10
-
Description & Specification

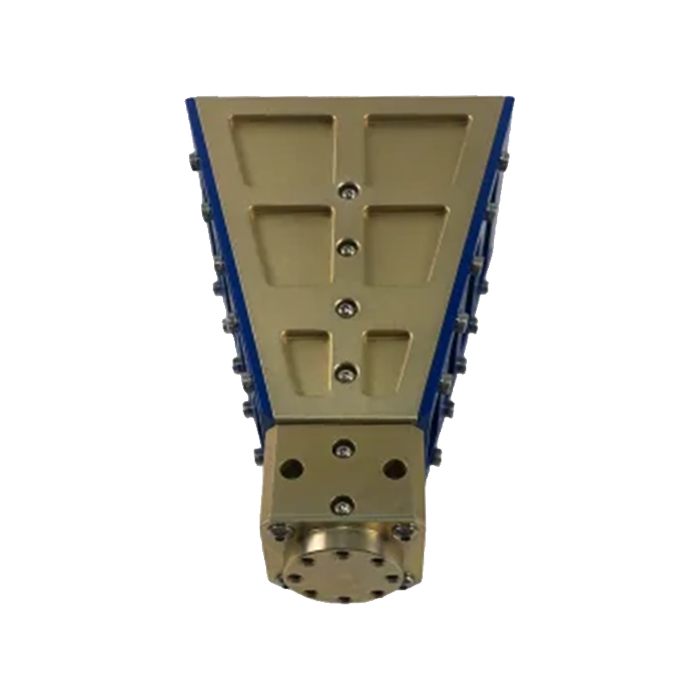

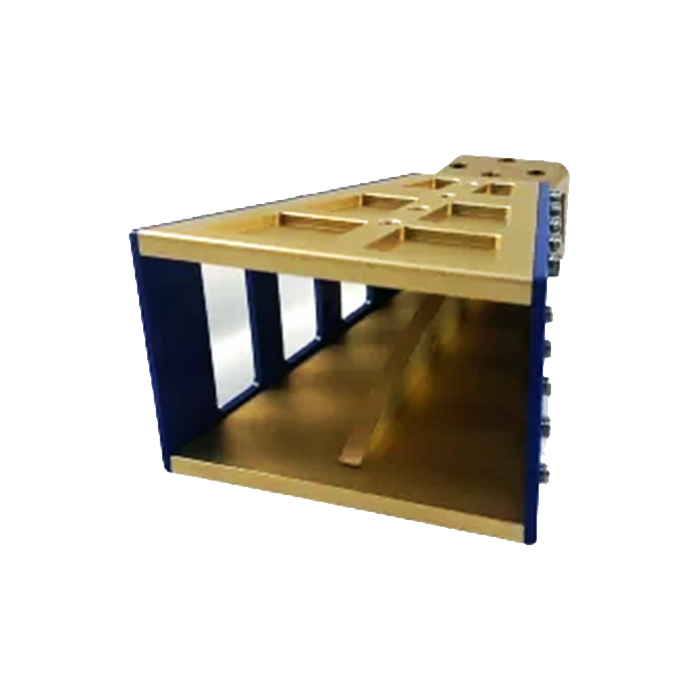

18GHz to 40GHz Double-Ridged Horn Antenna
High-Frequency Broadband Antenna | 2.92mm Female Connector
This precision Double-Ridged Horn Antenna operates across the 18 GHz to 40 GHz frequency range, making it ideal for K and Ka-band measurements. Constructed from high-grade 6061 Aluminum alloy with a stainless steel 2.92mm (K) connector, it offers exceptional performance with high gain (15-18 dBi) and consistent antenna factors. Designed and manufactured in Taiwan, it features built-in DC short lightning protection for reliable indoor laboratory use.
Technical Specifications
Electrical Specifications
[Image of 18-40GHz double ridged horn antenna radiation pattern]| Frequency Range | 18 GHz - 40 GHz |
| Antenna Type | Double-Ridged Horn |
| V.S.W.R | 2.5 : 1 (Average) |
| Gain | 15 - 18 dBi |
| Antenna Factor | 40 – 50 dB/m |
| Maximum Power Handling | 25 W |
| Vertical Beamwidth | 18° |
| Horizontal Beamwidth | 21° |
| FBR (Front-to-Back Ratio) | 25 dB |
| Connector | 2.92mm (K) Female (Stainless Steel) |
Mechanical & Environmental Specifications

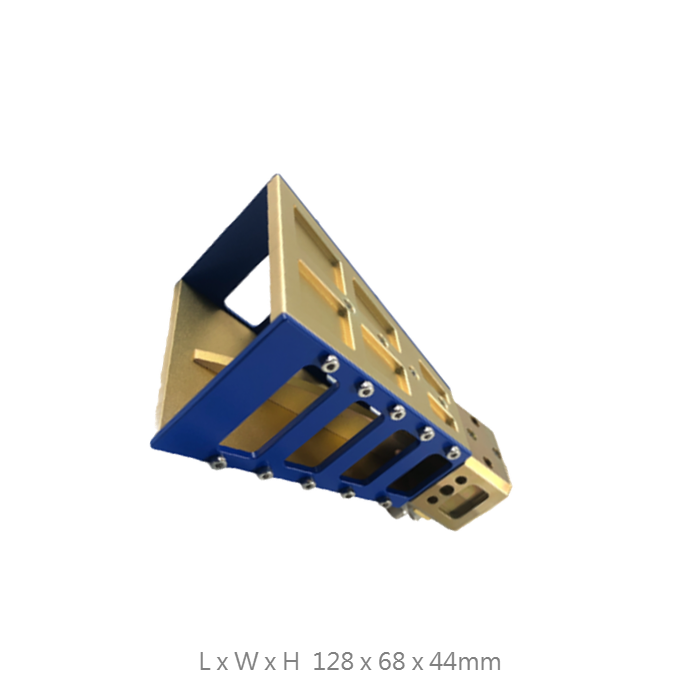

[Image of double ridged horn antenna mechanical dimensions 18-40GHz]| Dimensions (L x W x H) | 128 x 68 x 44 mm |
| Antenna Weight | 119 g |
| Parts Material | 6061 Aluminum Alloy |
| Mounting Style | L-Type Aluminum Bracket (M5/5mm or M2.5mm) |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
Millimeter-Wave Precision
Tailored for high-frequency bands (18-40GHz), perfect for 5G research and satellite testing.
Tailored for high-frequency bands (18-40GHz), perfect for 5G research and satellite testing.
DC Short Protection
Integrated lightning protection ensures safety for high-sensitivity testing equipment.
Integrated lightning protection ensures safety for high-sensitivity testing equipment.
Uniform Gain Stability
Delivers consistent gain performance (15-18 dBi) across the entire frequency spectrum.
Delivers consistent gain performance (15-18 dBi) across the entire frequency spectrum.
Consolidated Database
Backed by a comprehensive performance database for accurate calibration and data analysis.
Backed by a comprehensive performance database for accurate calibration and data analysis.
Premium Build Quality
Utilizes 6061 Aluminum and Stainless Steel connectors for maximum durability and RF integrity.
Utilizes 6061 Aluminum and Stainless Steel connectors for maximum durability and RF integrity.
Ultra-Lightweight
At just 119g, it is exceptionally easy to mount and integrate into complex test configurations.
At just 119g, it is exceptionally easy to mount and integrate into complex test configurations.
Contact Us
For pricing, data sheets, or technical support regarding this 40GHz Horn Antenna, please contact us:
