2 GHz to 18 GHz Open Boundary Quad-Ridged Horn Antenna
Model: HA-0218G-SF | Dual-Polarized Broadband | 18 dBi Gain

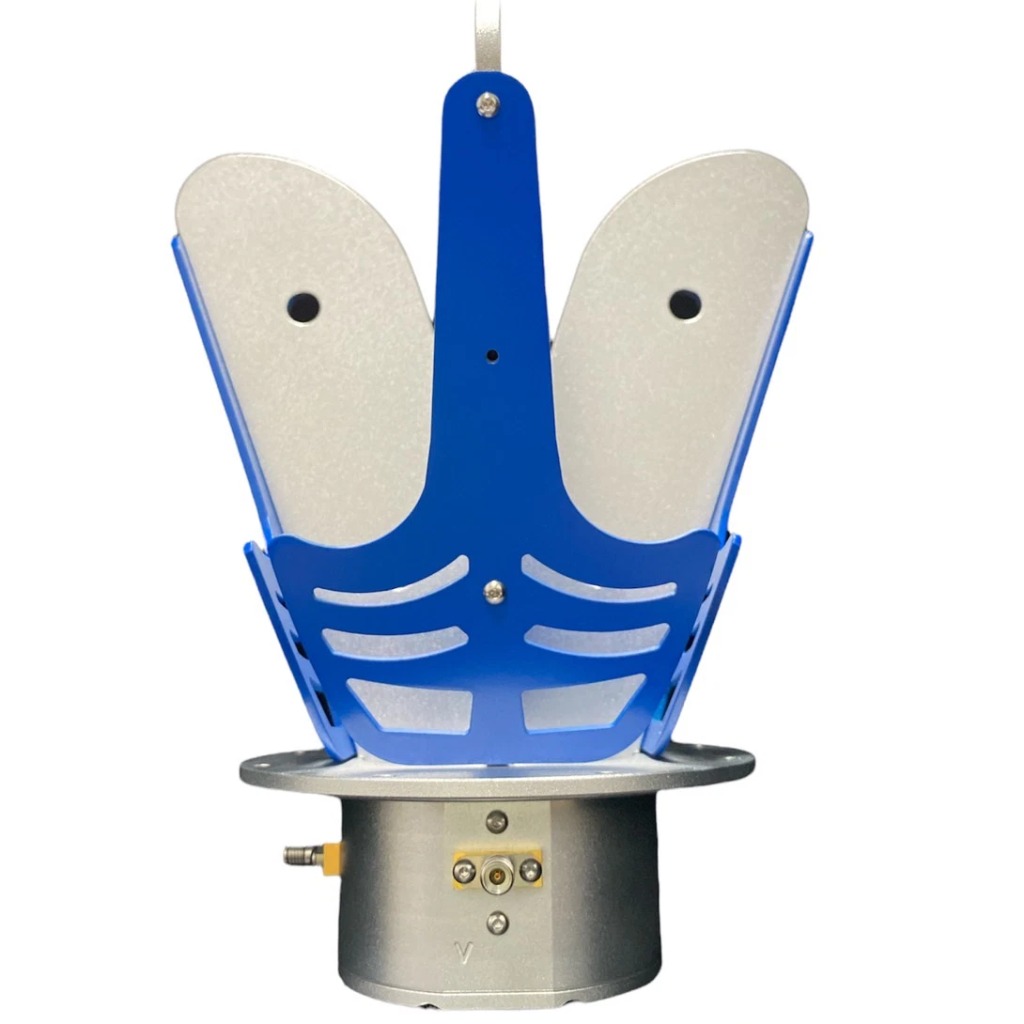

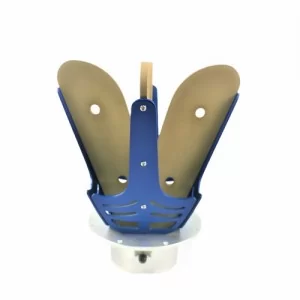

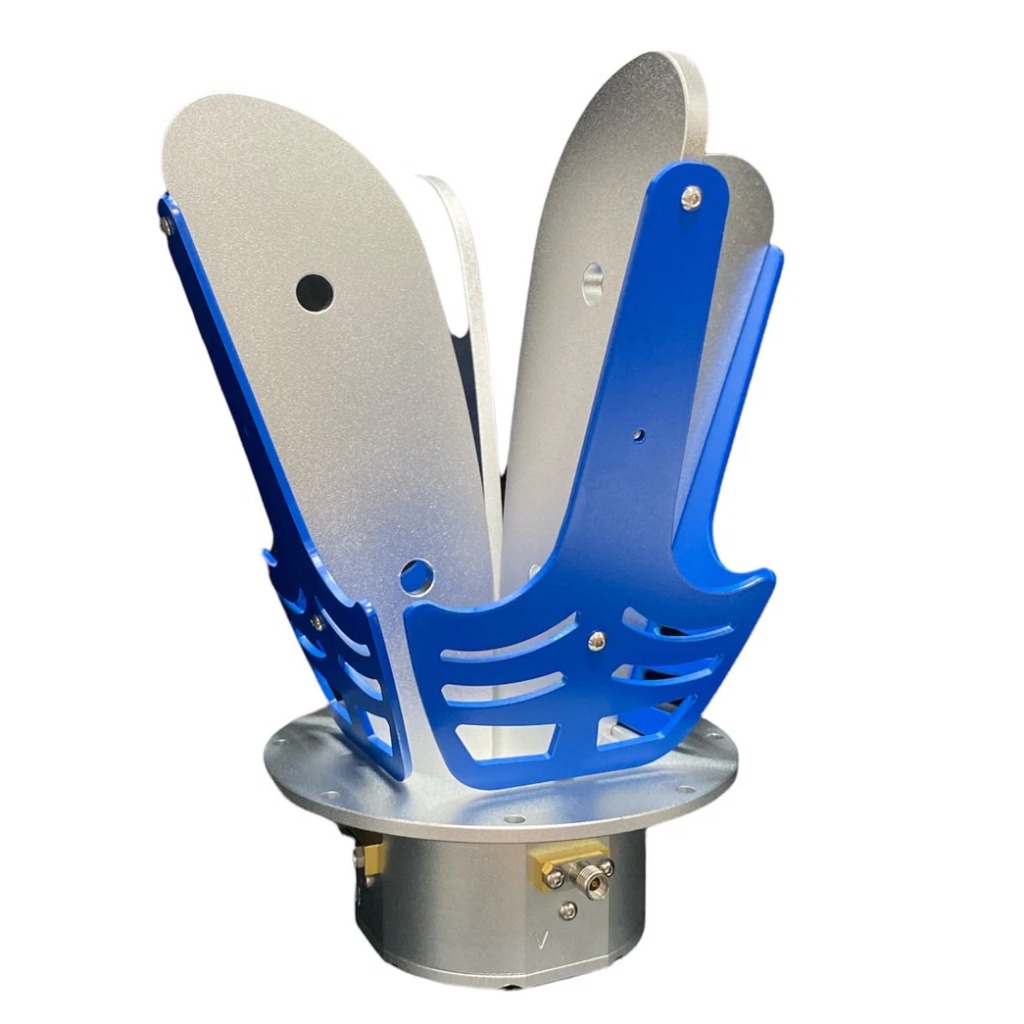

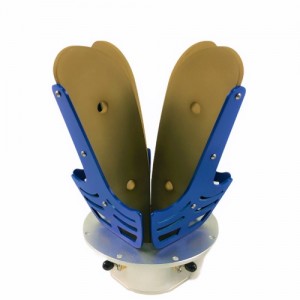

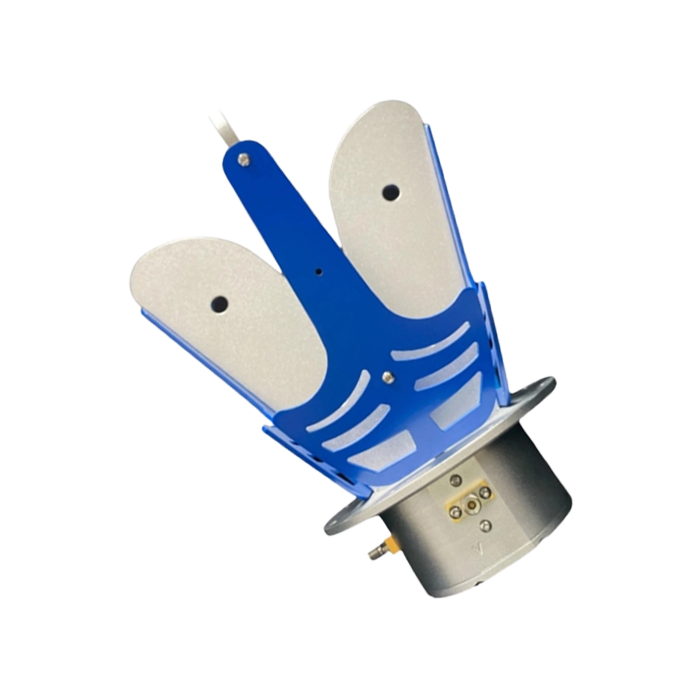

The HA-0218G-SF is a high-precision Open Boundary Quad-Ridged Horn Antenna professionally engineered for multi-octave microwave applications. Covering the expansive 2 GHz to 18 GHz spectrum, its unique open boundary architecture minimizes internal reflections and enhances beam symmetry across the entire bandwidth. Built with aerospace-grade 6061 Aluminum alloy and featuring dual SMA-Female ports, it supports simultaneous Vertical/Horizontal or ±45° polarization. This antenna is an essential instrument for Signal Integrity verification, antenna measurements, and professional EMC/EMI testing environments.
Product Showcase
Technical Specifications
Electrical & RF Performance
| Frequency Range | 2 GHz to 18 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Nominal Gain | 2 dBi to 18 dBi |
| Polarization | Dual (Vertical & Horizontal / ±45°) |
| V.S.W.R (Avg) | < 2.5 : 1 |
| -3dB Beamwidth (Avg) | Horizontal: 37° | Vertical: 37° |
| Antenna Factor | 31 to 42 dB/m |
| Front to Back Ratio (FBR) | 29 dB |
| Impedance | 50 Ohm |
Mechanical & Interface Data

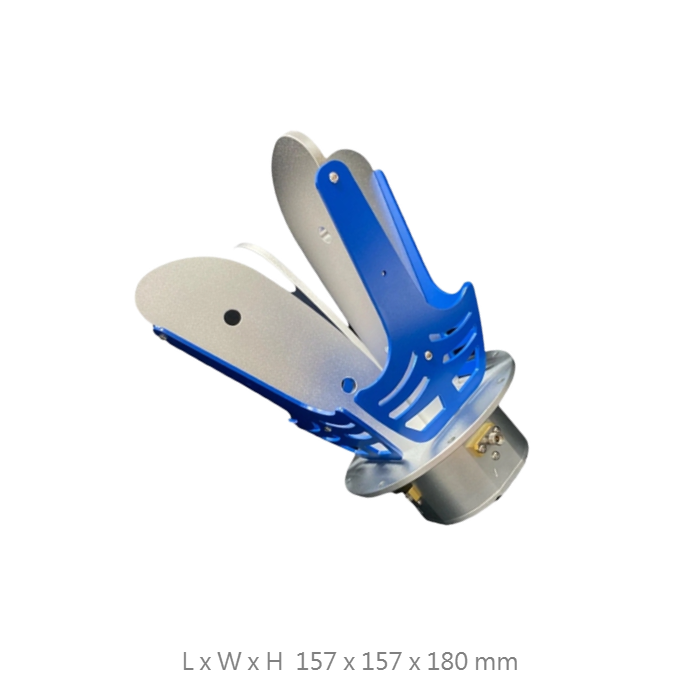

| Dimensions (L x W x H) | 157 x 157 x 180 mm |
| Net Weight | 879 g (Precision Lightweight Design) |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
| Connector Type | Stainless Steel SMA-Female x 2 |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
| Compliance | RoHS, WEEE, CE, FCC |
Key Tactical Features
Open Boundary Architecture
Engineered with an optimized open design to minimize internal resonance and back-radiation, ensuring cleaner Signal Integrity acquisition across the full 16 GHz bandwidth.
Dual-Polarization Versatility
Equipped with independent dual ports to support simultaneous Vertical and Horizontal acquisition, making it ideal for MIMO characterization and complex laboratory setups.
Integrated Surge Protection
Features built-in DC shorted design to safeguard high-precision measurement instrumentation and connected receivers from transient electrical surges.
Industrial Lab Compliance
Fully compliant with international standards, ensuring industrial-grade performance and mechanical durability for mission-critical antenna measurement cycles.
Request a Professional Quote
Contact our engineering team to obtain specialized gain calibration data, polarization isolation matrices, or technical support for microwave surveillance sub-systems.
