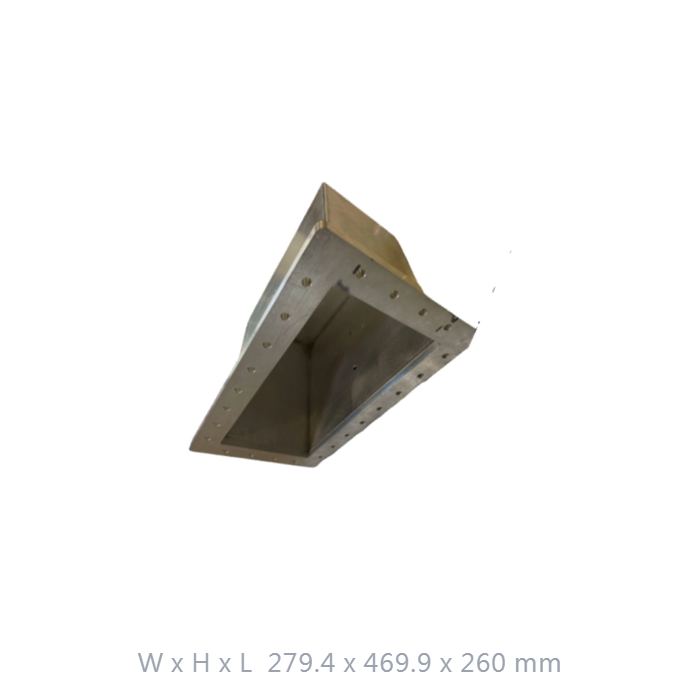

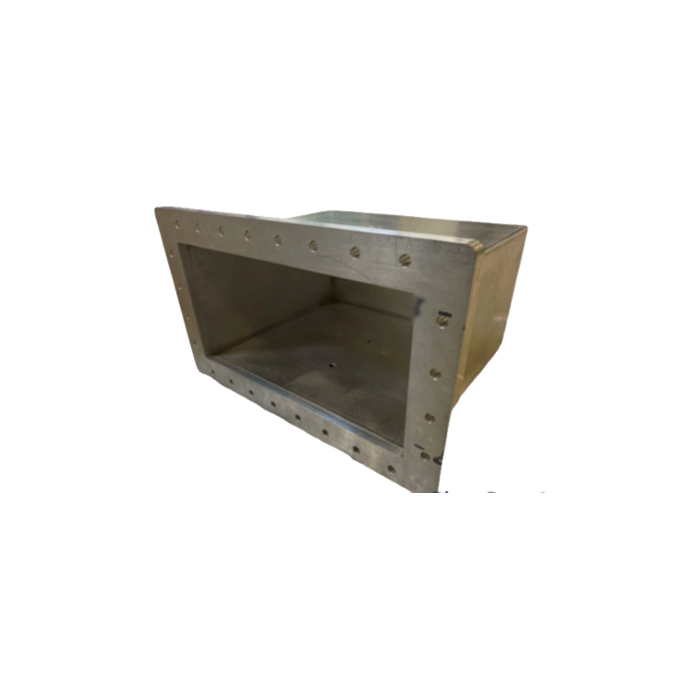

WR1500 Waveguide to Coaxial Adapter (Model: WC-1500-A-NF)
490 - 750 MHz | 3KW High Power | 10KG Broadcast Grade Infrastructure
The WC-1500-A-NF is a titan of UHF transmission, engineered for the demanding 490 MHz to 750 MHz spectrum. Designed to interface with massive WR1500 waveguides, this adapter is built for high-energy infrastructure, capable of handling 3000 Watts (3KW) of continuous power. Weighing in at 10KG, its substantial aluminum chassis acts as an immense thermal sink, ensuring stability for digital TV broadcasting and long-range radar systems. It features a rugged Stainless Steel N-Female Connector to maintain signal integrity under high electrical stress.
Technical Specifications
Electrical Specifications
| Frequency Range | 490 MHz to 750 MHz (UHF Band) |
| Waveguide Size | WR-1500 (R6) |
| Connector Type | N-Female (Stainless Steel) |
| Max Power Handling | 3000 Watts (3KW CW) |
| Impedance | 50 Ohms |
Mechanical Specifications
| Dimensions (L x W x H) | 260 x 279.4 x 469.9 mm |
| Net Weight | 10 KG (Heavy Duty) |
| Flange Type | Type 01 (Standard) |
| Body Material | Aluminum |
Key Features (Model Specific)
3KW Continuous Power
Engineered for high-power broadcast transmitters, reliably handling 3000 Watts without overheating.
UHF Broadcast Band
Precisely tuned for 490-750 MHz, covering the core spectrum for Digital TV and long-range surveillance radar.
10KG Solid Construction
A massive 10kg aluminum body provides unmatched mechanical stability and thermal dissipation properties.
Stainless Steel Interface
Utilizes a stainless steel N-type connector to prevent corrosion and wear in outdoor or high-humidity environments.
Large Format WR1500
Custom-machined to fit the large apertures of WR1500 waveguides, ensuring efficient mode transition at UHF frequencies.
Get a Quote / Customization
Contact us for shipping logistics on heavy items or custom flange drilling.
