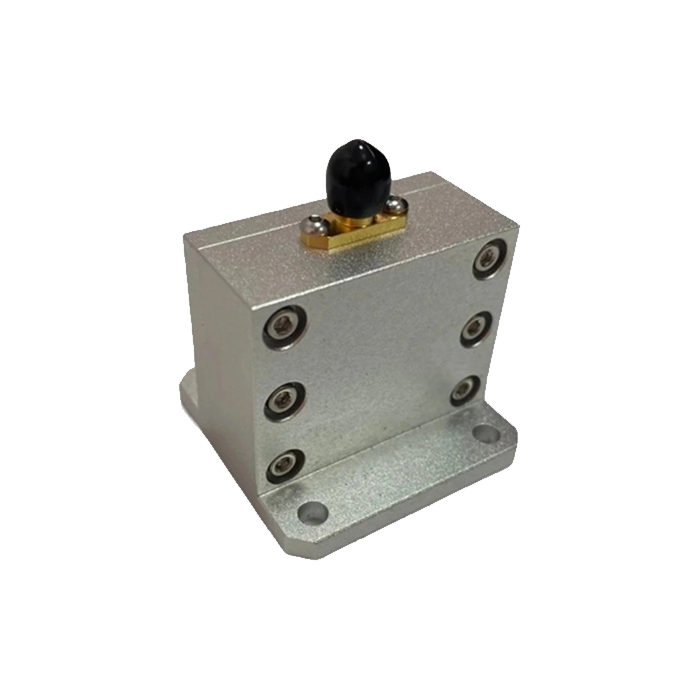

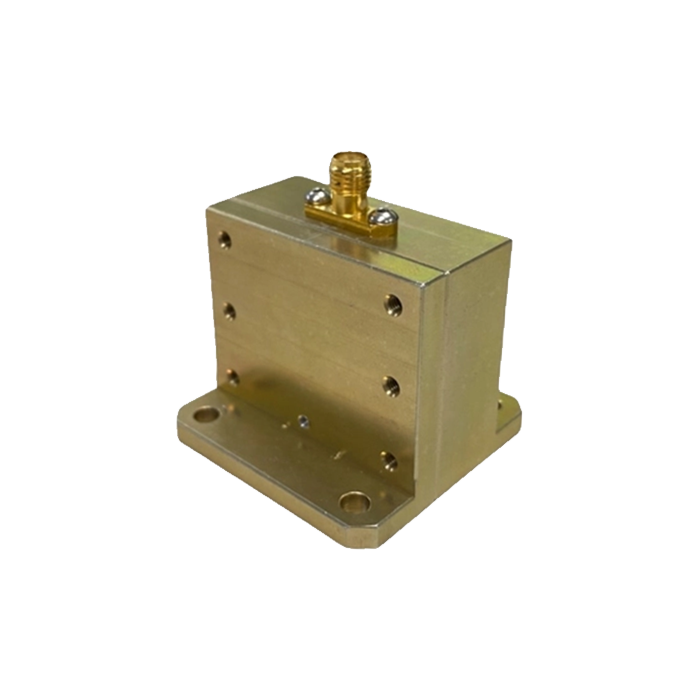

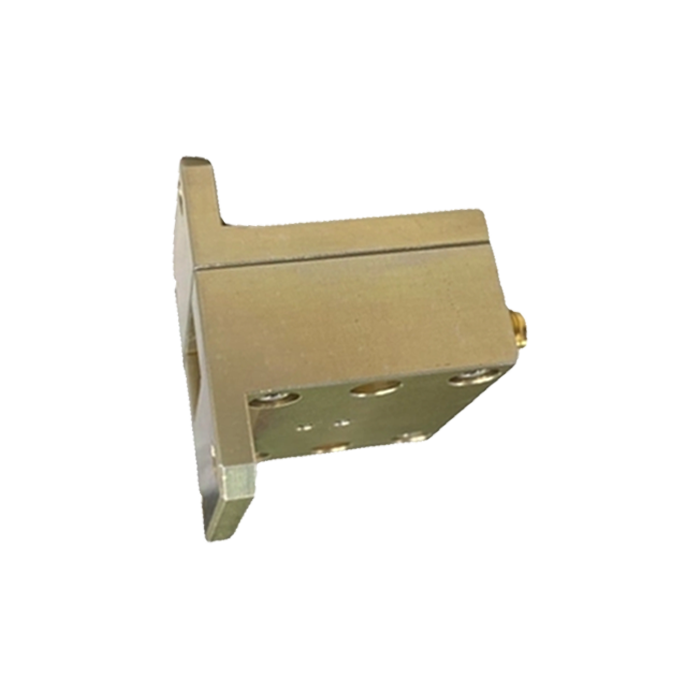

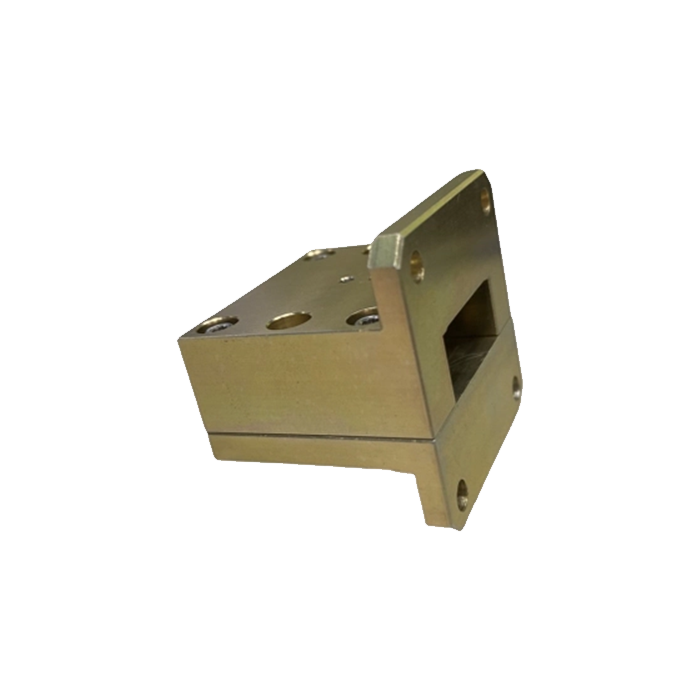

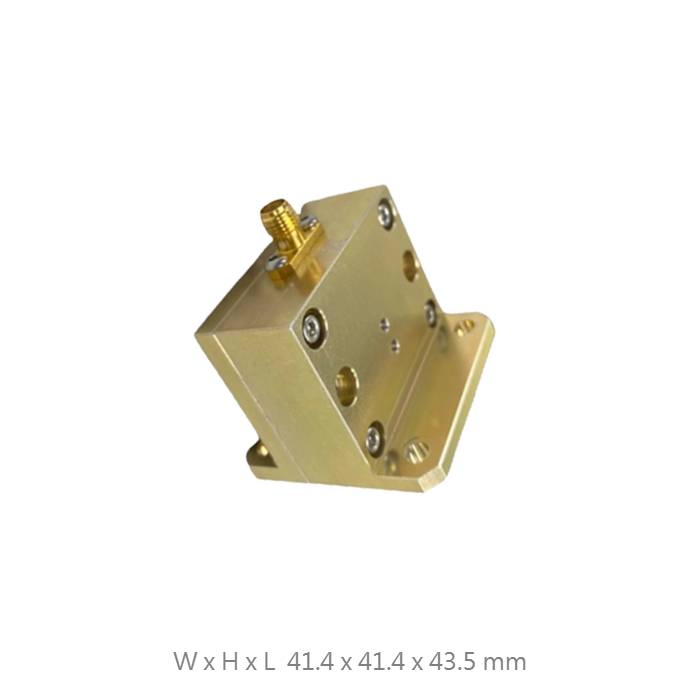

| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.3 : 1 |
| Maximum Power Handling | 200 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Radiation Field / Polarization | Directional | Supports Vertical or Horizontal Orientations |
| Waveguide Size Standard | EIA WR90 (R100 / WG16 Layout) |
| Waveguide Flange Designation | UBR UG-39/U Flange Layout (Square Cover Format) |
| Coaxial Connector Interface | SMA-Female Interface Precision Port Layout |
| Physical Dimensions (L x W x H) | 41.4 x 41.4 x 43.5 mm |
| Net Weight | 70 g (Precision Lightweight Build) |
| Body Material Profile | High-Grade Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Engineered to satisfy stringent global structural dimensions for rectangular waveguide-to-coaxial transitions, securing tight mechanical tolerances and trace calibration repeatability.
Fully optimized internal cavity layout is environmentally sealed for outdoor atmospheric endurance, shielding against moisture and maintaining low-attenuation signal handling across severe climates.
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, delivering exceptional dimensional alignment tolerances and traceable calibration metrics.
Reliably manages continuous wave transmissions up to 200 Watts (CW) with low internal insertion reflection, facilitating maximum thermal dissipation through its high-grade machined aluminum alloy body.
Versatile mechanical design footprint supporting seamless mating onto multi-axis laboratory positioning towers, customized horn antenna layouts, and precision PTZ control system arrays.
Contact our technical engineering team today to request individual material specification charts, certified individual V.S.W.R plot sheets, specialized mechanical finishes, or non-conductive custom surface parameters.
