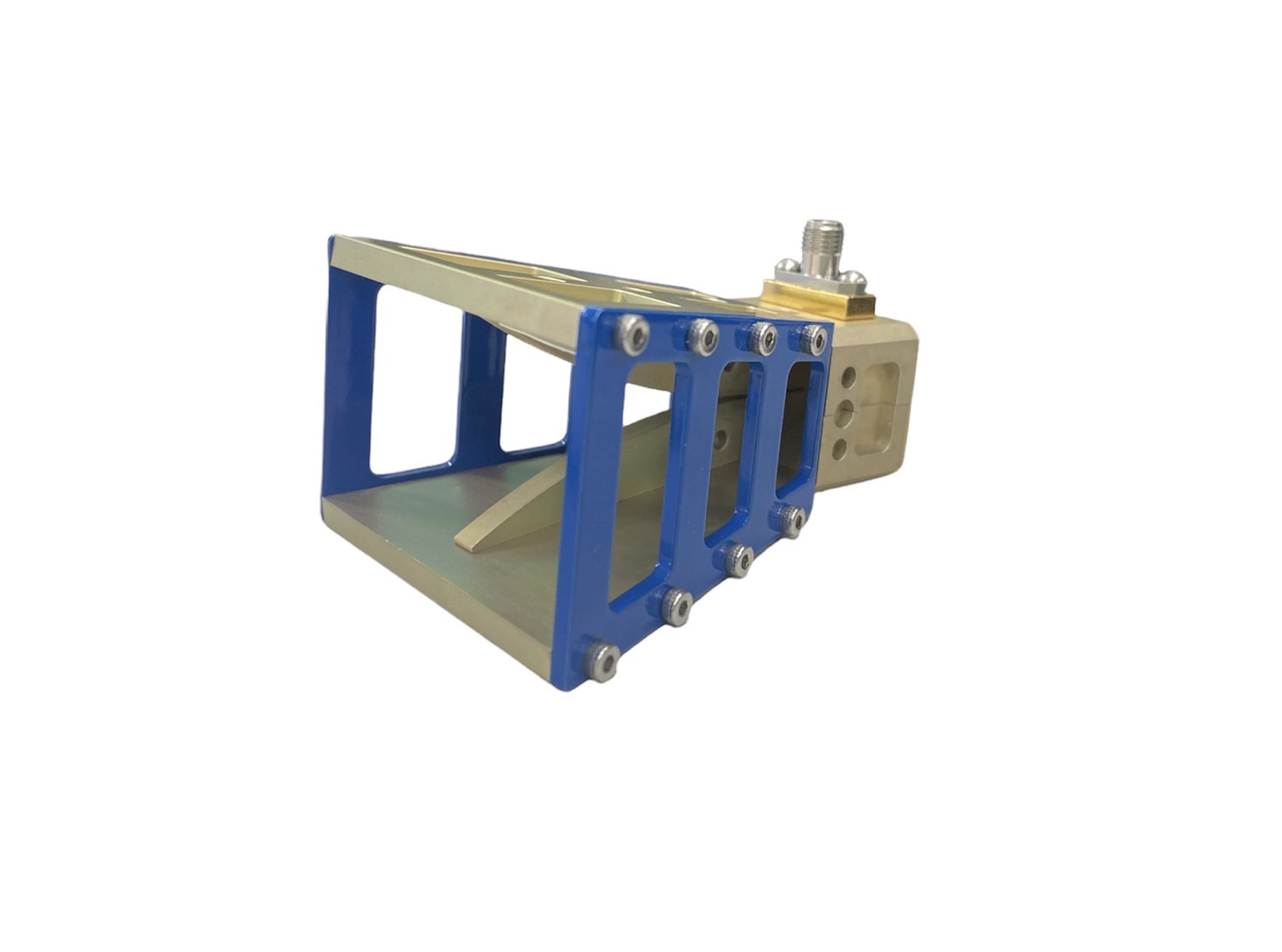

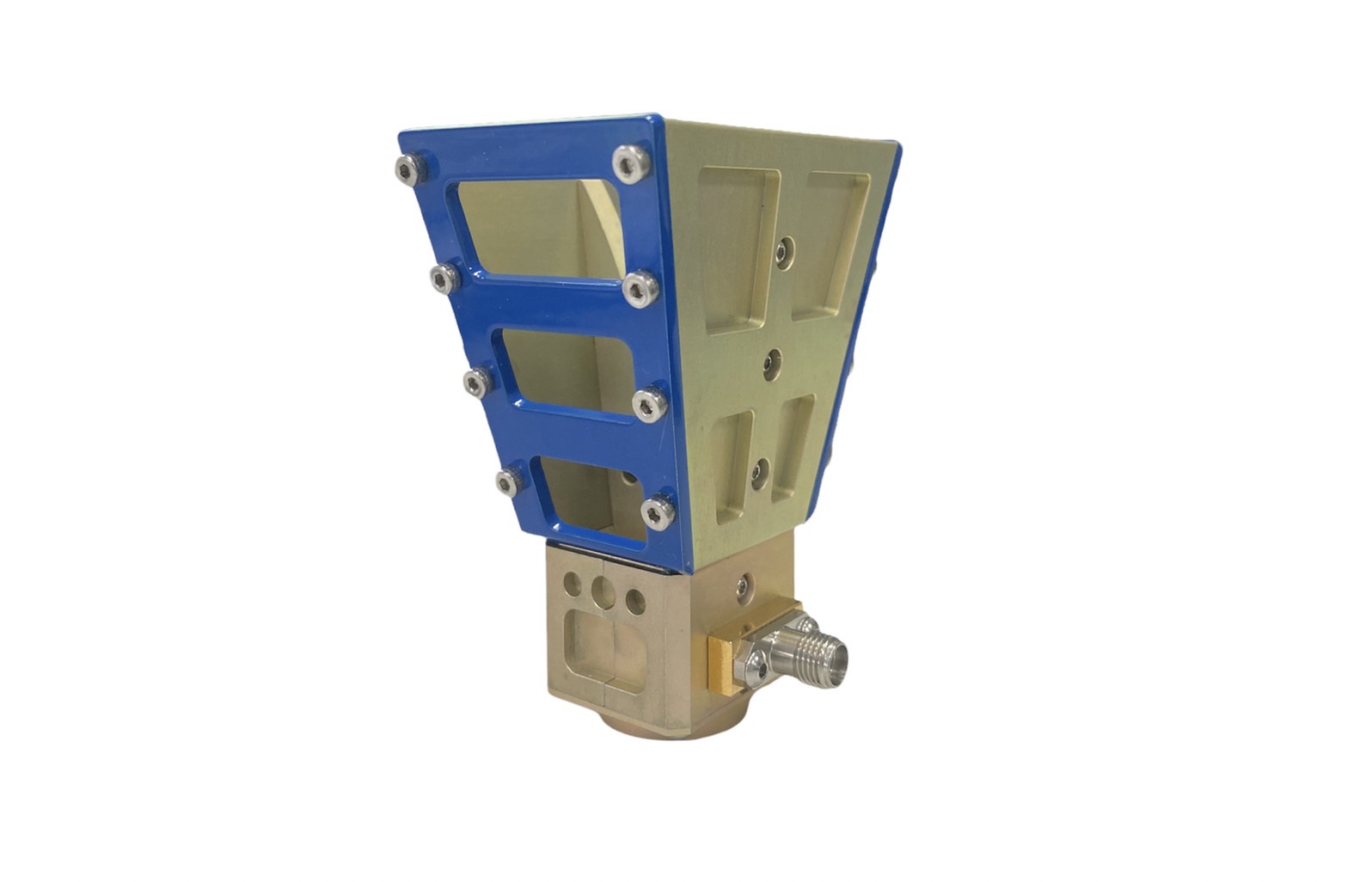

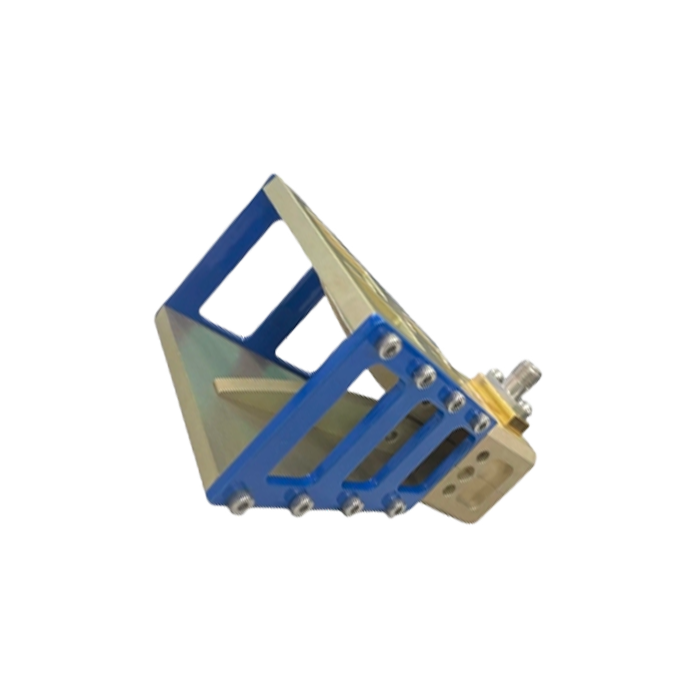

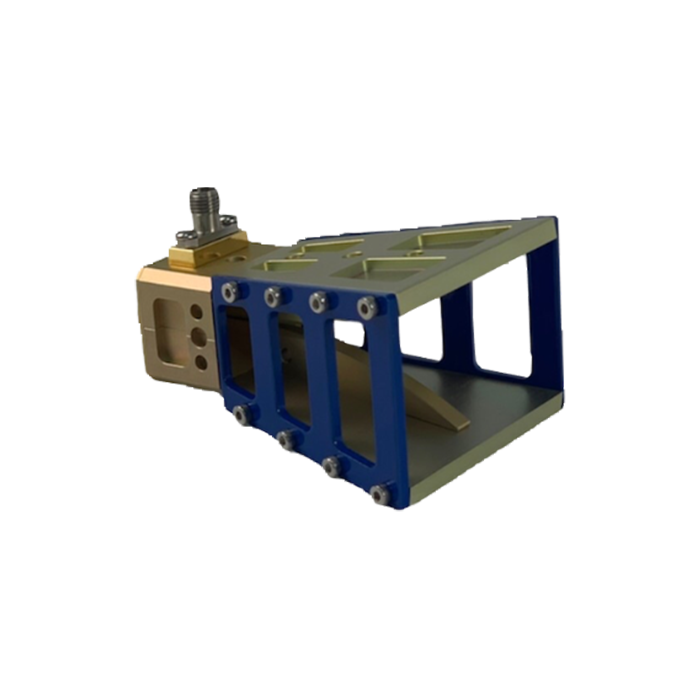

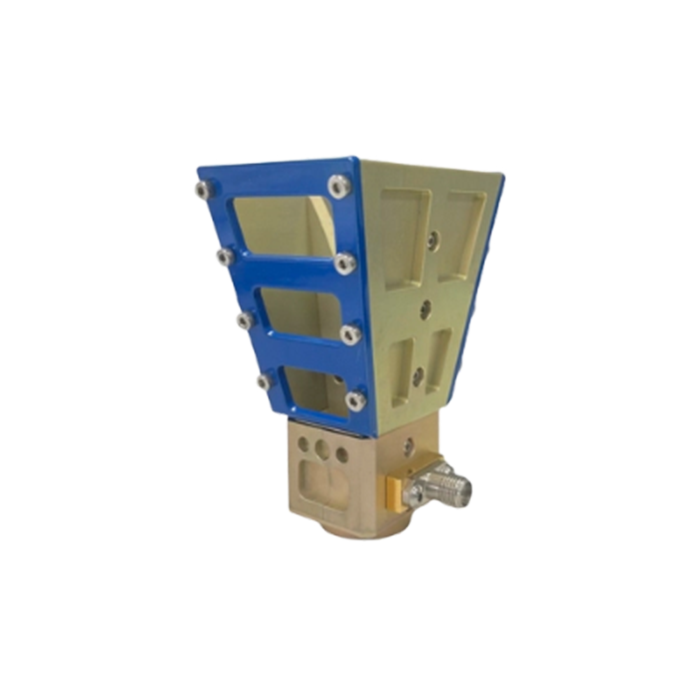

10GHz to 40GHz Double-Ridged Horn Antenna
Ultra-Wideband Millimeter Wave Antenna | 2.92mm Female Connector
The 10GHz to 40GHz Double-Ridged Horn Antenna is a versatile high-frequency solution covering X, Ku, K, and Ka-bands. Crafted from 6061 Aluminum alloy with a stainless steel 2.92mm (K) female connector, it delivers robust performance in a compact 90g package. Featuring DC short lightning protection and consistent 7-17 dBi gain, this Taiwan-designed antenna is ideal for broadband monitoring, EMC testing, and high-speed wireless research.
Technical Specifications
Electrical Specifications
[Image of 10-40GHz double ridged horn antenna radiation pattern]| Frequency Range | 10 GHz - 40 GHz |
| Antenna Type | Double-Ridged Horn |
| V.S.W.R | 2.5 : 1 (Average) |
| Radiation | Directional |
| Gain | 7 - 17 dBi |
| Antenna Factor | 40 – 52 dB/m |
| Maximum Power | 100 Watts (Peak) |
| Vertical Beamwidth | 25° |
| Horizontal Beamwidth | 29° |
| Connector | 2.92mm (K) Female (Stainless Steel) |
Mechanical & Environmental Specifications

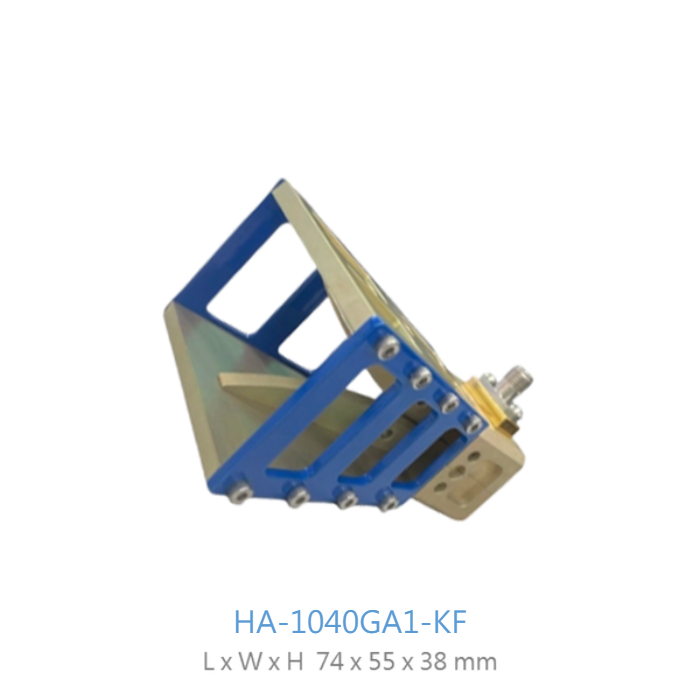

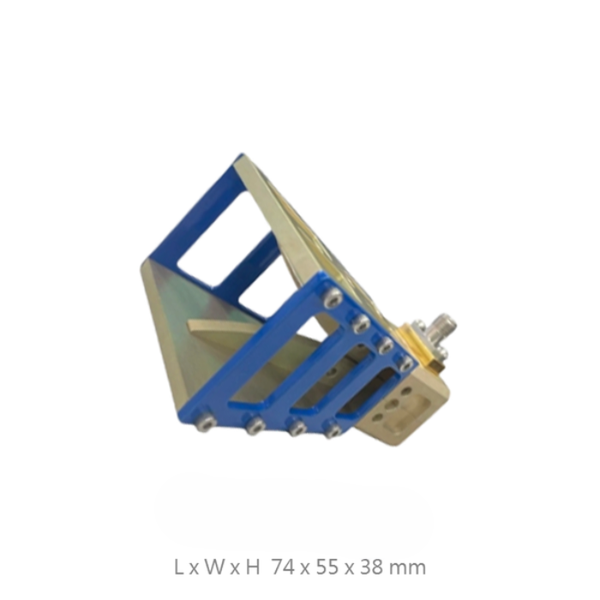

[Image of double ridged horn antenna mechanical dimensions 10-40GHz]| Dimensions (L x W x H) | 74 x 55 x 38 mm |
| Antenna Weight (N.W) | 90 g |
| Material | 6061 Aluminum Alloy |
| Mounting Style | Small L-type Aluminium Bracket (M4/4mm or M2.5mm) |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
Ultra-Wide Frequency Range
Seamlessly covers 10GHz to 40GHz, spanning multiple microwave and millimeter-wave bands.
Seamlessly covers 10GHz to 40GHz, spanning multiple microwave and millimeter-wave bands.
DC Short Protection
Built-in lightning protection design safeguards connected measurement instrumentation.
Built-in lightning protection design safeguards connected measurement instrumentation.
Stable Gain Performance
Provides a reliable 7-17 dBi gain across the entire spectrum for accurate broadband measurements.
Provides a reliable 7-17 dBi gain across the entire spectrum for accurate broadband measurements.
Precision Engineering
Stainless steel 2.92mm connector ensures high RF integrity and repeated mating cycles.
Stainless steel 2.92mm connector ensures high RF integrity and repeated mating cycles.
Featherweight Design
Weighing just 90g, it offers unparalleled ease for mounting in complex or height-restricted setups.
Weighing just 90g, it offers unparalleled ease for mounting in complex or height-restricted setups.
Consolidated Performance
Supported by a comprehensive performance database for reliable calibration and data analysis.
Supported by a comprehensive performance database for reliable calibration and data analysis.
Contact Us
For pricing, detailed data sheets, or technical support regarding this 40GHz Horn Antenna, please contact us:
