700MHz to 6GHz Double Ridged Broadband Horn Antenna
High-Power Sub-6GHz Antenna | 500W Peak Power Handling
The 700MHz to 6GHz Double Ridged Broadband Horn Antenna is a versatile high-performance solution for broadband microwave and telecommunication applications. Precision-manufactured in Taiwan using 6061 Aluminum alloy and a stainless steel N-female connector, it delivers high gain up to 18 dBi. This antenna is ideal for 5G Sub-6GHz testing, EMI/EMC measurements, and directional signal monitoring, featuring built-in DC short lightning protection for robust reliability.
Technical Specifications
Electrical Specifications
[Image of 700MHz to 6GHz double ridged horn antenna radiation pattern beamwidth]| Frequency Range | 700 MHz - 6 GHz |
| V.S.W.R | 2.0 : 1 (Average) |
| Antenna Type | Double Ridged Horn |
| Radiation | Directional |
| Gain | 4 dBi to 18 dBi |
| Antenna Factor | 24 - 45 dB/m |
| Polarization | Vertical or Horizontal |
| Maximum Power Handling | 500W (Peak) / 300W (Continuous) |
| Vertical Beam-width | 90° - 10° |
| Horizontal Beam-width | 60° - 10° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 10 - 35 dB |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

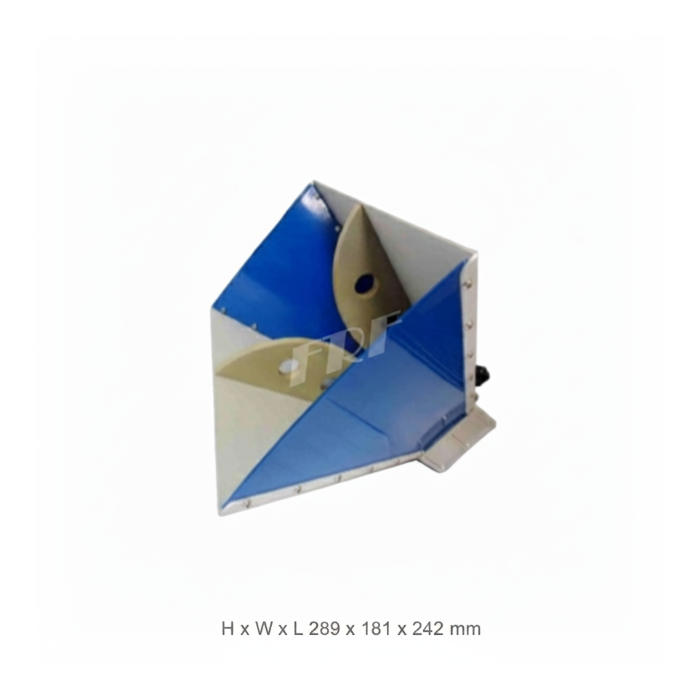

[Image of double ridged horn antenna mechanical dimensions diagram 700MHz-6GHz]| Dimensions (Diameter) | 289 x 181 mm |
| Length | 242 mm |
| Antenna Weight (N.W) | 1450 g |
| Material | 6061 Aluminum Alloy |
| Mounting Options | L-Type Aluminum Bracket (M6 or 1/4 inch) |
| Indexing Ring Mounting | 22mm Tube / Long 150mm |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS Compliant |
Key Features
Broad High Power Handling
Reliably manages up to 500W peak power, ideal for high-intensity laboratory and field testing.
Reliably manages up to 500W peak power, ideal for high-intensity laboratory and field testing.
DC Short Lightning Protection
Integrated safety design protects connected measurement systems from transient electrical surges.
Integrated safety design protects connected measurement systems from transient electrical surges.
Low VSWR & High Efficiency
Optimized broadband design ensures minimal signal reflection for high-fidelity RF measurements.
Optimized broadband design ensures minimal signal reflection for high-fidelity RF measurements.
Uniform Gain Stability
Provides consistent 4-18 dBi gain across the spectrum for accurate data acquisition.
Provides consistent 4-18 dBi gain across the spectrum for accurate data acquisition.
Premium Taiwan Quality
Manufactured using 6061 Aluminum alloy for exceptional mechanical and thermal stability.
Manufactured using 6061 Aluminum alloy for exceptional mechanical and thermal stability.
Consolidated Database Support
Backed by a comprehensive performance database to ensure reliable calibration and use.
Backed by a comprehensive performance database to ensure reliable calibration and use.
Contact Us
For quotes, calibration data, or technical support regarding this 700MHz-6GHz Horn Antenna, please contact us:
