WR51 15 to 22 GHz 20dbi Standard Gain Waveguide Horn Antenna, K-Female Connector

WR51 15 to 22 GHz 20dbi Standard Gain Waveguide Horn Antenna, K-Female Connector

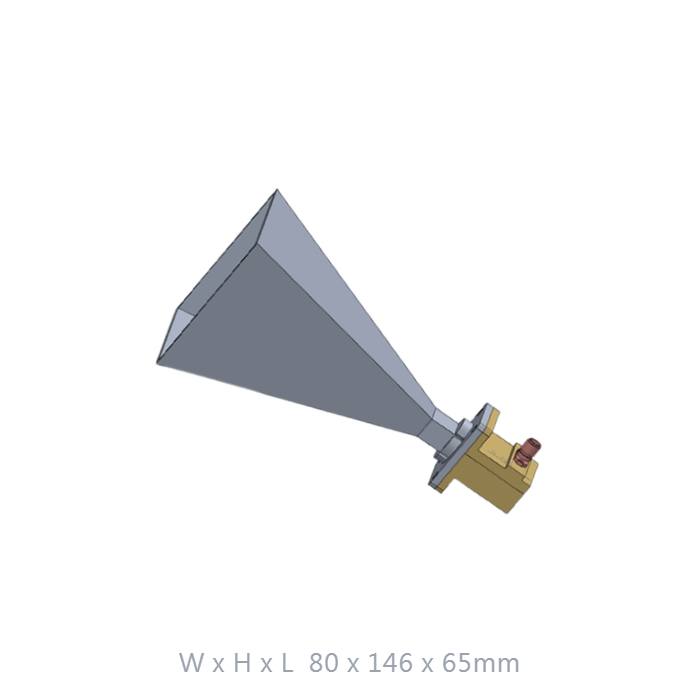

Model No: HS-051-UBR-20A-KF

Mechanical Drawing: Download

  • Waveguide Type: WR-51
  • Frequency: 15GHz to 22GHz<
  • Waveguide Coaxial Adapter Model: WC-51-UBR-KF
  • Waveguide input Model: WI-51-UBR-15
  • Connector: K-Female
  • V.S.W.R: 1.25
  • Gain: 20 dBi
  • Wieght(g):
  • Size(mm):
Quantity:
INQUIRY

  • Description & Specification

Applications:

  • WR51 15 to 22 GHz 20dbi Standard Gain Waveguide Horn Antenna, K-Female Connector
  • EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
  • Calibration devices that measure the gain of other antennas

Features:

  • Uniform Gain
  • Aluminum metal alloy
  • Consolidated performance database
  • Stainless steel 2.92mm-Female

Mechanical Specifications

Original Model HS-05120A-KF -3db Beamwidth Horz.30 deg Vert.30 deg
N.W. Updating Connector  Stainless steel 2.92mm-Female
Frequency 15GHz to 22GHz Styling WR51
Polarization  Vertical or Horizontal Gain 15dbi
