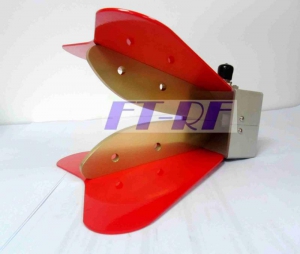

800MHz to 8GHz Open Boundary Double Ridged Broadband Horn Antenna
Model: HB-08M08G-NF | High Power Handling | Precision Measurement

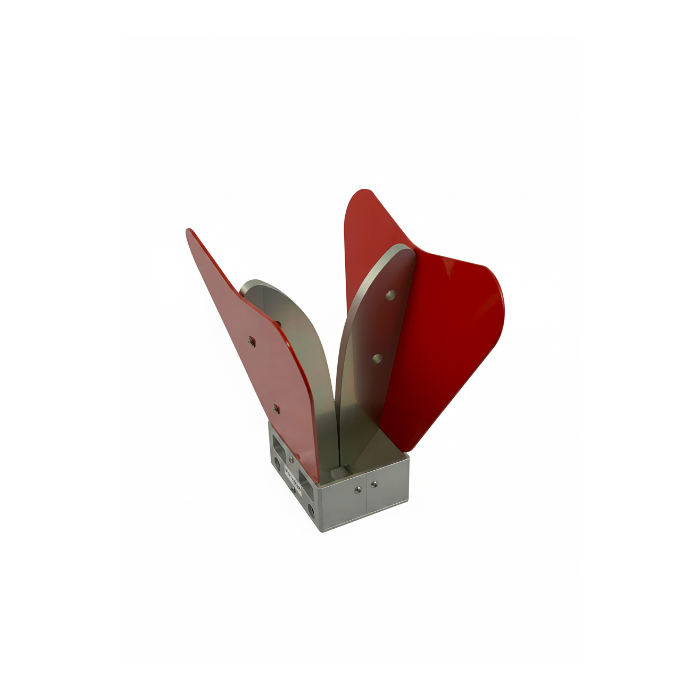

The HB-08M08G-NF is a high-performance Open Boundary Double Ridged Horn Antenna professionally engineered for versatile wideband RF applications. Operating across the 800MHz to 8GHz spectrum, this antenna delivers a stable gain profile from 3 dBi to 15 dBi. Built from aerospace-grade 6061 Aluminum alloy with a stainless steel N-Female interface, it features DC short lightning protection to ensure the Signal Integrity and equipment safety required for rigorous EMC/EMI testing and broadband signal monitoring.
Technical Specifications
Electrical Specifications

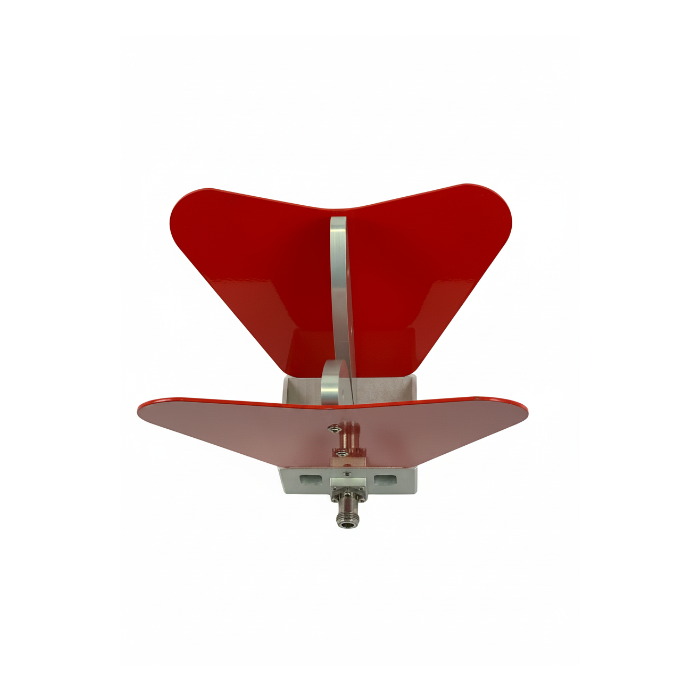

| Frequency Range | 800 MHz - 8 GHz |
| Antenna Type | Open Boundary Double Ridged Horn |
| Gain | 3 dBi - 15 dBi |
| V.S.W.R | Low VSWR (Optimized) |
| Maximum Power | 500W (Peak) / 300W (Continuous) |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

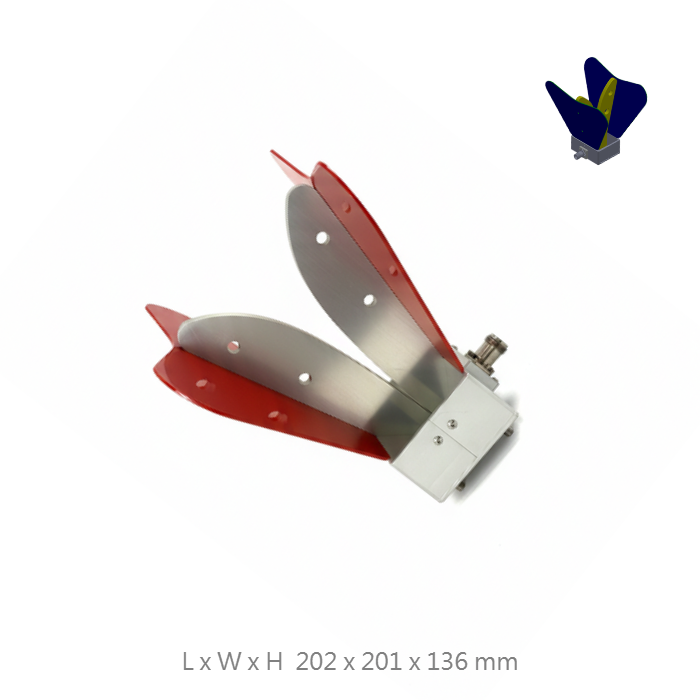

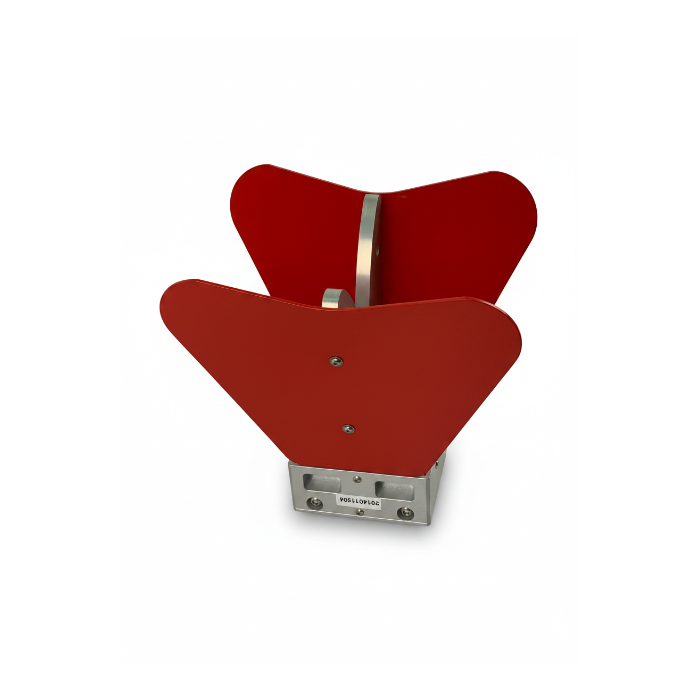

| Dimensions (L x W x H) | 202 x 201 x 136 mm |
| Net Weight (N.W.) | 0.75 kg (Ultra-Lightweight) |
| Material | Aerospace 6061 Aluminum Alloy |
| Design & Manufacturing | Taiwan Design, Made in Taiwan |
| Styling | Open Boundary Architecture |
Key Tactical & Lab Features

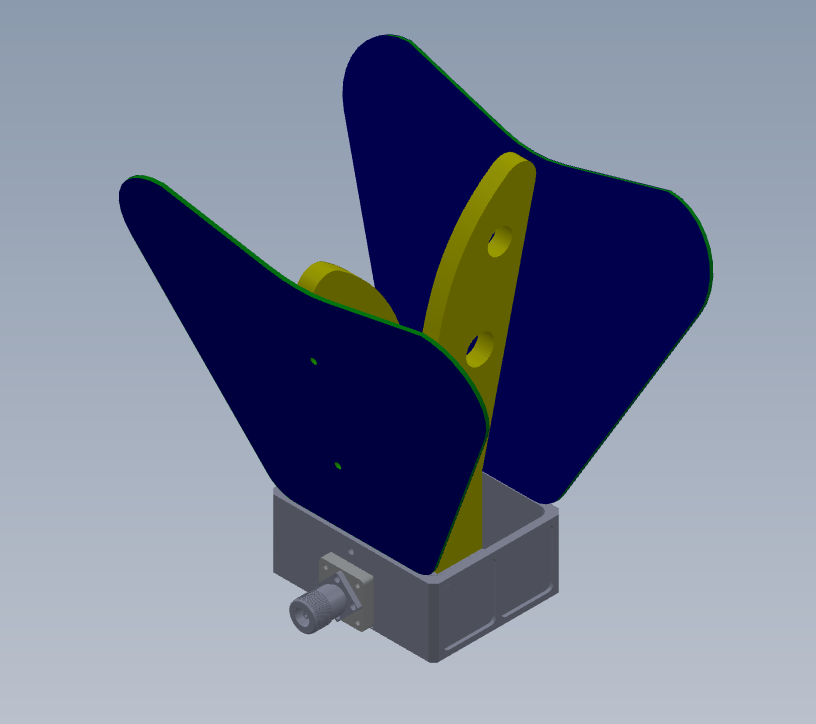

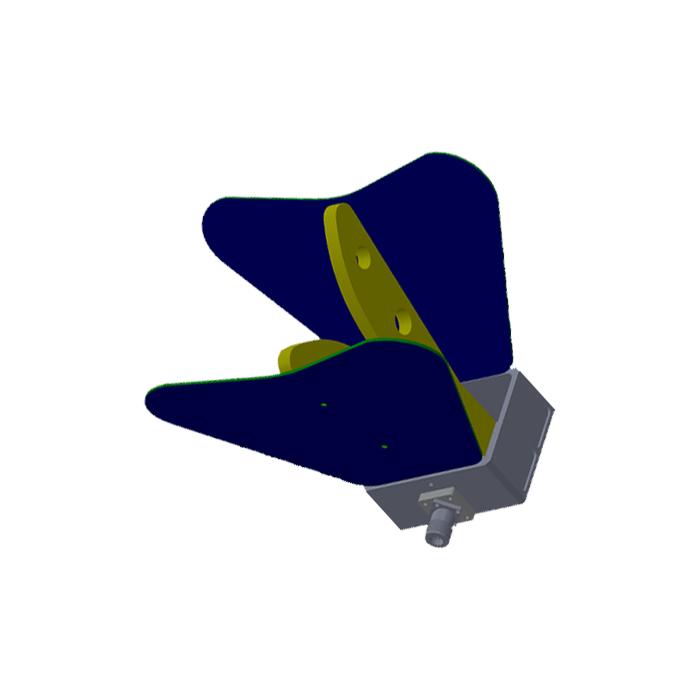

Open Boundary Architecture
Optimized design for wideband frequency response and reduced weight without sacrificing structural performance.
High Power Reliability
Reliably handles up to 500W peak and 300W continuous power for intensive high-field strength immunity testing.
DC Short Lightning Protection
Built-in protection safeguards connected measurement instrumentation from transient electrical surges during operations.
Uniform Gain Profile
Maintains stable gain from 3 dBi to 15 dBi, ensuring consistent directional measurement data across the full spectrum.
Ultra-Lightweight Build
At just 0.75 kg, it provides excellent portability for field monitoring and laboratory antenna measurement setups.
Consolidated Performance Database
Supported by comprehensive calibration data for accurate system integration and traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, VSWR plots, or technical support regarding broadband setups.
