700MHz to 8GHz Open Boundary Double Ridged Broadband Horn Antenna N-Female
Fei Teng Wireless - Horn Antenna Specialist
10 out of
10
-
Description & Specification

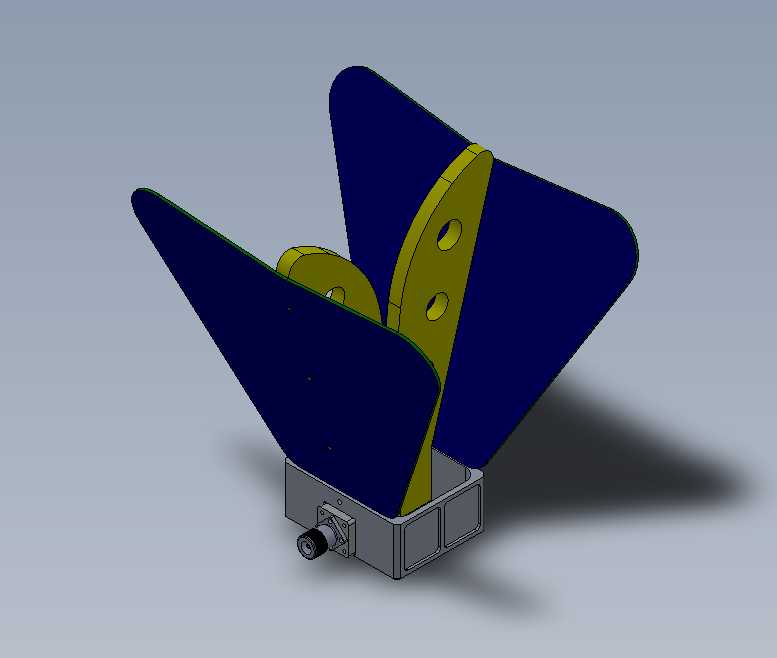

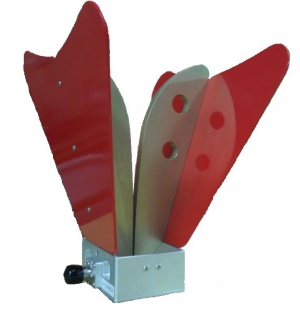

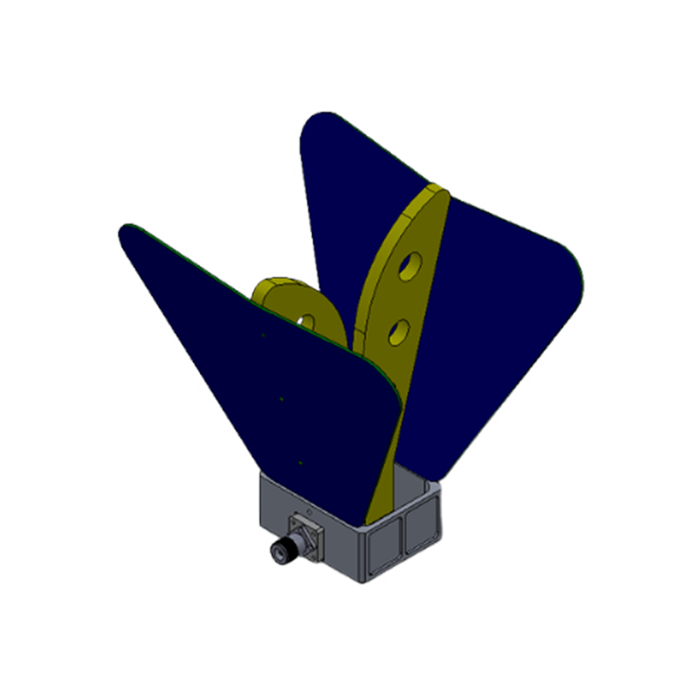

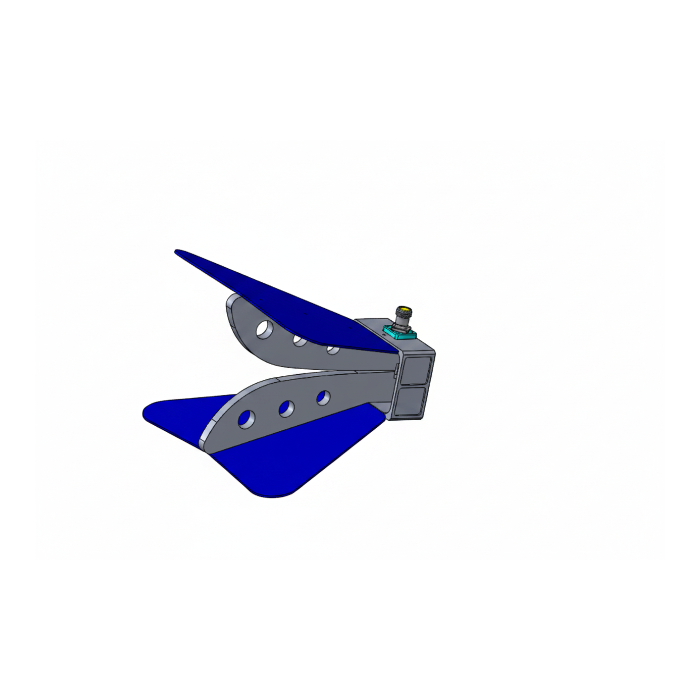

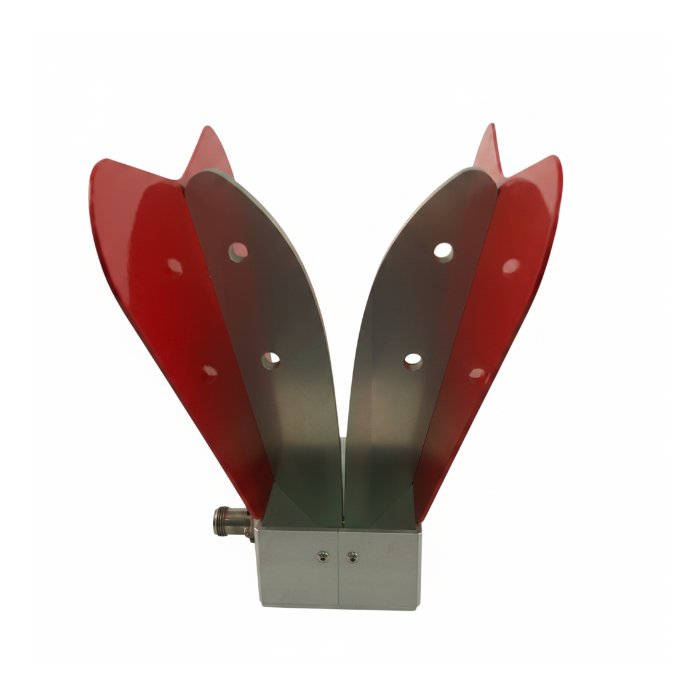

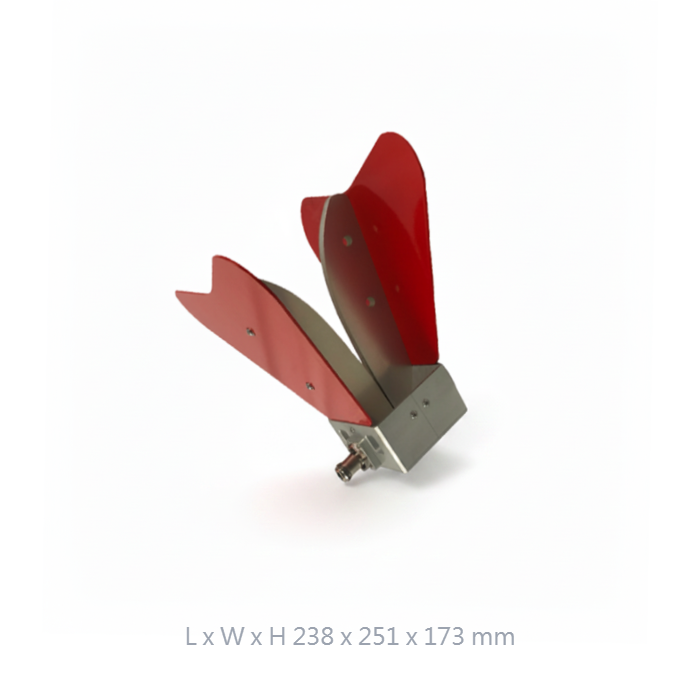

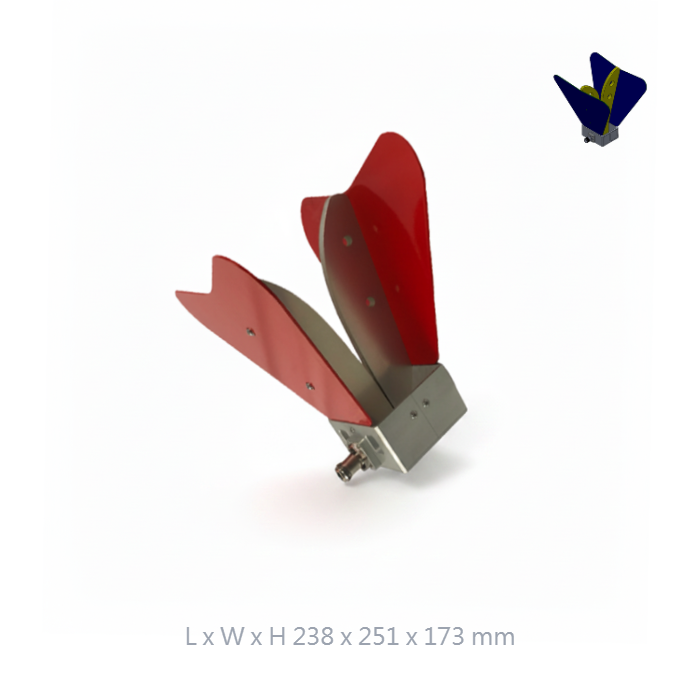

700MHz to 8GHz Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | 4 - 17 dBi Gain | Model: HA-07M08G-NF
The HA-07M08G-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 6]. Covering the 700 MHz to 8 GHz spectrum, it provides directional gain performance from 4 to 17 dBi and an average VSWR of 2:1 across 1 GHz to 8 GHz[cite: 6]. Constructed from 6061 aluminum alloy and equipped with a precision N-Female connector, this antenna supports high power handling up to 300W (CW) / 500W (Peak) and features integrated DC Short lightning protection[cite: 6]. It serves as an essential measurement standard for EMC/EMI compliance testing, antenna pattern characterization, and laboratory RF validation systems[cite: 6].
Technical Specifications
| Frequency Range | 700 MHz - 8 GHz |
| Antenna Type | Double Ridged Horn |
| Nominal Gain | 4 - 17 dBi |
| VSWR | 2:1 avg (1 GHz - 8 GHz) |
| Power Handling | 300W CW / 500W Peak |
| Impedance | 50 Ω |
Mechanical & Physical Data
| Dimensions (L x W x H) | 324 x 288 x 180 mm |
| Weight | 1.35 kg (1357 g) |
| Connector | N-Female (Stainless Steel) |
| Mounting Interface | M6 / 1/4 in / 22mm Tube Indexing Ring Mount |
| Country of Origin | Taiwan |
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Broadband Frequency Coverage
Seamless operation spanning 700 MHz to 8 GHz for versatile multi-octave signal detection and analysis[cite: 6].
High Power Rating
Handles up to 300W CW and 500W peak power with integrated DC Short lightning protection[cite: 6].
Stainless Steel Connector
Precision-machined Stainless Steel N-Female interface provides long service life and repeatable contact[cite: 6].
Taiwanese Precision
CNC fabricated in Taiwan with 6061 aluminum alloy, compliant with RoHS, WEEE, CE, and FCC standards[cite: 6].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
